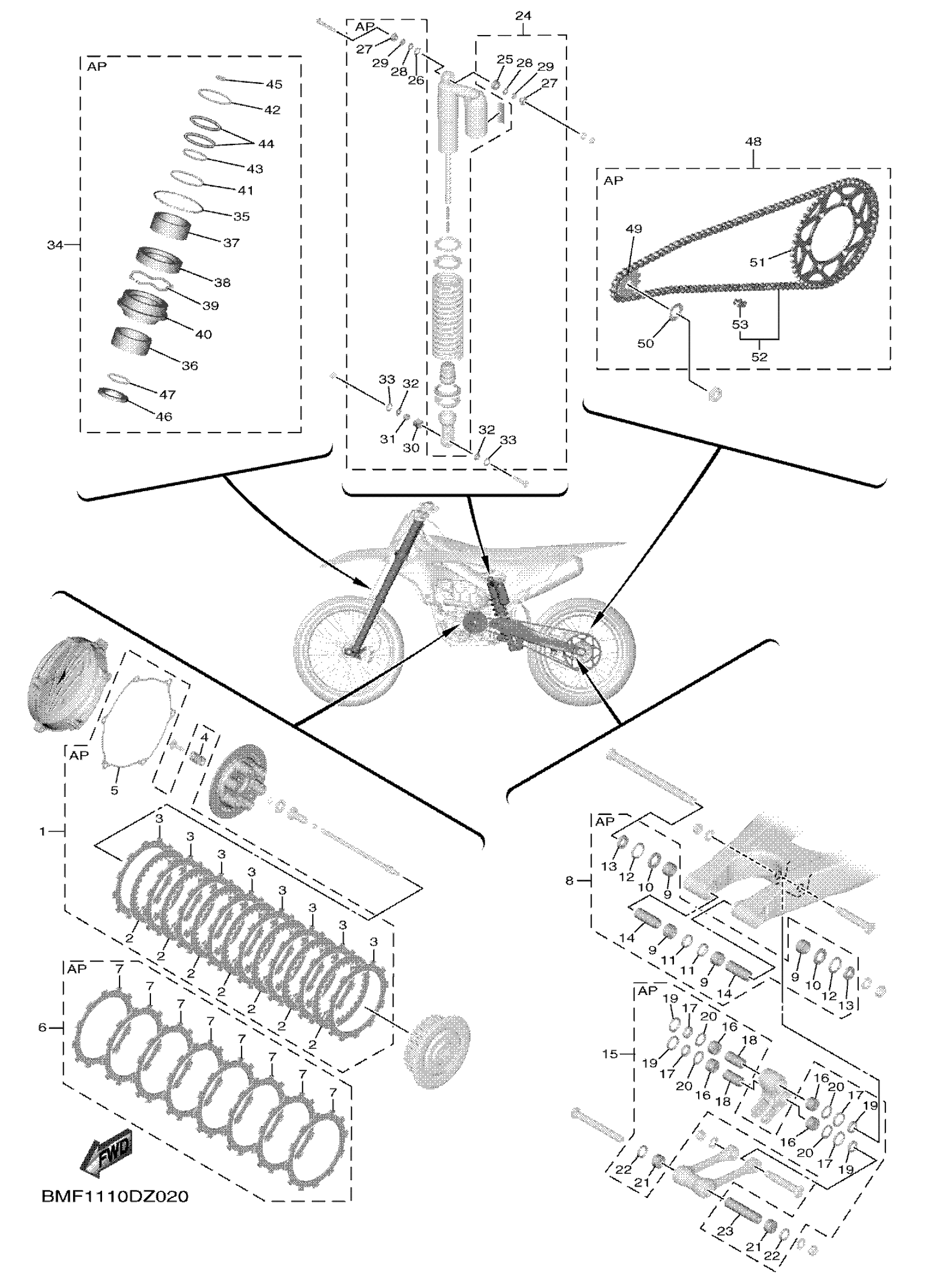

Yamaha YZ250FRL (YZ250F) BMF1 2024 3 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B7B-W001G-00-00

$159.99

2

PLATE, CLUTCH 2

B7B-16325-00-00

$8.49

3

PLATE, FRICTION

B7B-16321-00-00

$20.99

4

SPRING, COMPRESSION

90501-230A7-00

$4.29

5

GASKET

B7B-15453-00-00

$14.99

6

FRICTION PLATE KIT

B7B-W001M-00-00

$106.99

7

PLATE, FRICTION

B7B-16321-00-00

$20.99

8

SWING ARM PIVOT BEARING KIT

BR9-W002C-00-00

$119.99

9

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

10

BEARING

93342-22217-00

$41.99

11

OIL SEAL

93106-22002-00

$12.49

12

OIL SEAL (36F)

93109-28043-00

$11.49

13

COLLAR

90387-17019-00

$12.49

14

COLLAR

90387-1714S-00

$43.99

15

SHOCK LINKAGE BEARING KIT

33D-W002E-00-00

$169.99

16

BEARING

93315-32166-00

Unavailable

17

OIL SEAL

93109-25001-00

Unavailable

18

COLLAR

90387-16026-00

Unavailable

19

WASHER

90209-16011-00

Unavailable

20

WASHER, PLATE

90201-21014-00

Unavailable

21

BEARING

93315-32166-00

Unavailable

22

OIL SEAL

93109-21001-00

Unavailable

23

COLLAR

90387-14016-00

Unavailable

24

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable

25

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

Unavailable

26

CIRCLIP

5DH-23183-00-00

Unavailable

27

COLLAR, DISTANCE

1C3-22253-50-00

Unavailable

28

SEAL, DUST

3JE-22475-00-00

Unavailable

29

SEAL, RING

4EW-22474-00-00

Unavailable

30

BEARING

5UN-22176-00-00

Unavailable

31

BUSH

5MV-22184-00-00

Unavailable

32

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

33

SEAL, DUST

5NY-22475-00-00

Unavailable

34

FORK SEAL KIT (ONE FORK)

BHR-W003B-00-00

Unavailable

35

RING, SNAP

17D-23153-00-00

Unavailable

36

PISTON, FRONT FORK

5XE-23171-L0-00

Unavailable

37

METAL, SLIDE 1

5XE-23125-L0-00

Unavailable

38

OIL SEAL

B29-23145-00-00

Unavailable

39

RING, SNAP

5XE-23153-L0-00

Unavailable

40

SEAL, DUST

BHR-23144-00-00

Unavailable

41

O-RING

1C3-23147-L1-00

Unavailable

42

O-RING

1C3-23188-L2-00

Unavailable

43

O-RING

1C3-23188-P0-00

Unavailable

44

O-RING

1AE-23147-01-00

Unavailable

45

O-RING

1C3-23188-R1-00

Unavailable

46

GASKET

2HH-23158-L0-00

Unavailable

47

GASKET

276-23114-02-00

Unavailable

48

CHAIN & SPROCKET KIT

B7B-W001A-20-00

Unavailable

49

SPROCKET, DRIVE (13T)

9383B-13218-00

Unavailable

50

WASHER, LOCK

90215-20003-00

Unavailable

51

SPROCKET, DRIVEN (50T)

B2W-25450-00-00

Unavailable

52

CHAIN

9Y582-60113-00

Unavailable

53

JOINT, CHAIN

94682-60001-00

Unavailable
