Description

Price

1

SEGMENT

4EW-18185-00-00

$109.99

2

PIN, SHIFT

3XJ-18173-10-00

$19.99

3

GUIDE, SHIFT

5BE-18172-00-00

$24.99

4

BOLT

90101-06664-00

Unavailable

5

LEVER, SHIFT 2

5LP-18122-01-00

$85.99

6

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

7

PIN, PAWL

3XJ-18184-00-00

$15.49

8

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

9

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

10

SHIFT SHAFT ASSY

5UL-18101-00-00

$92.99

11

COLLAR

90387-12033-00

$7.49

12

SPRING, TORSION(4DA)

90508-291A8-00

$9.49

13

PIN, DOWEL

93608-33002-00

$15.99

14

OIL SEAL (4G0)

93102-12224-00

$10.49

15

SHIFT PEDAL ASSY

5UL-18110-00-00

Unavailable

16

. BOLT, FLANGE

95027-06020-00

Unavailable

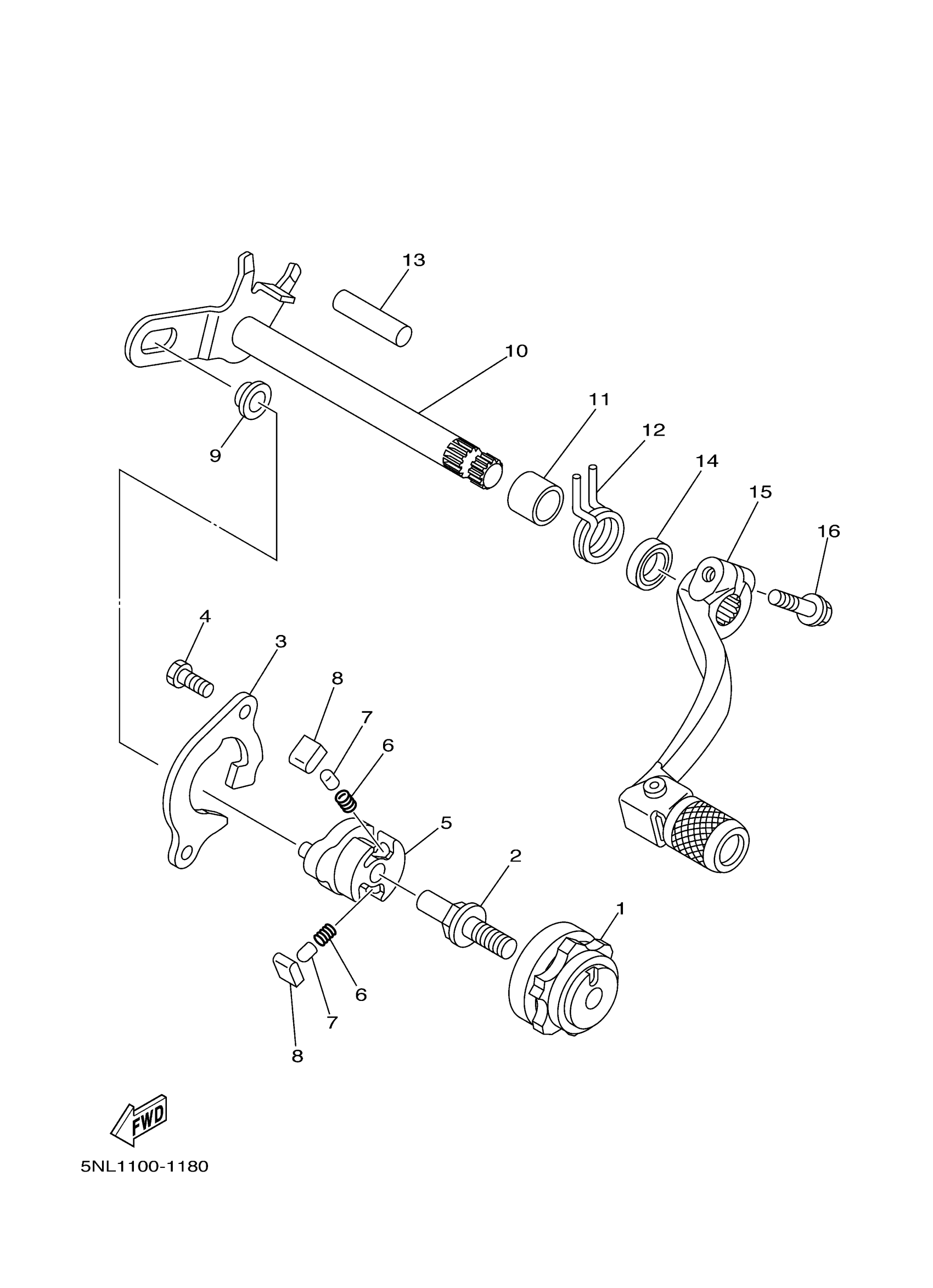

Yamaha YZ250FR (YZ250F) 5UL1 2003 SHIFT SHAFT Diagram

SEGMENT

PIN, SHIFT

GUIDE, SHIFT

BOLT

LEVER, SHIFT 2

SPRING, COMPRESSION(3XJ)

PIN, PAWL

PAWL, SHIFTER

ROLLER, SHIFT LEVER

SHIFT SHAFT ASSY

COLLAR

SPRING, TORSION(4DA)

PIN, DOWEL

OIL SEAL (4G0)

SHIFT PEDAL ASSY

. BOLT, FLANGE
