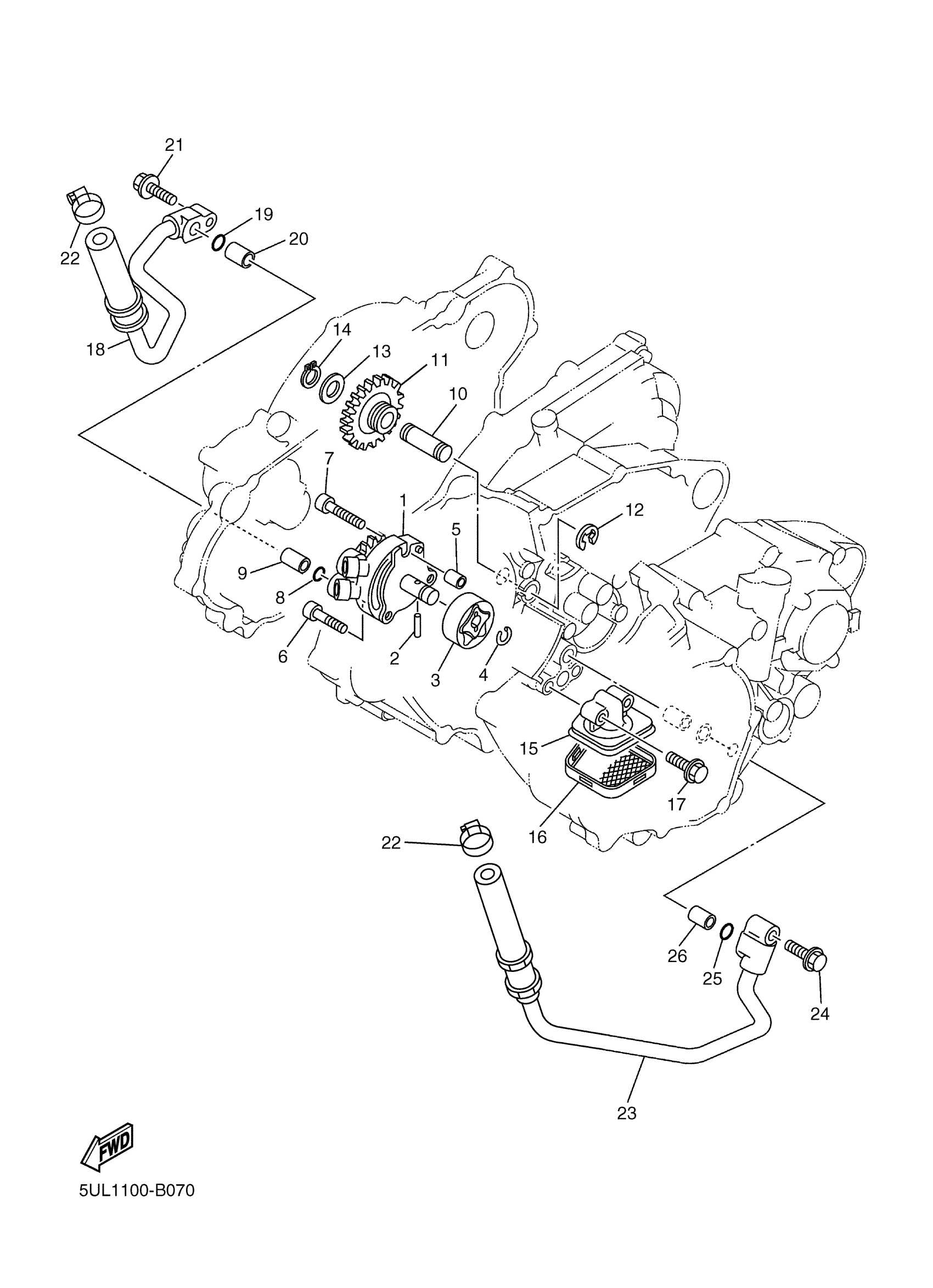

Yamaha YZ250FR (YZ250F) 5UL1 2003 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5SG-13300-01-00

$167.99

2

PIN, DOWEL(1HX)

93603-16219-00

$8.49

3

ROTOR ASSY 2

5NL-13320-00-00

$47.99

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

PIN, DOWEL

99530-08012-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-06058-00

Unavailable

7

BOLT, SOCKET

91314-06030-00

$8.49

8

O-RING (371)

93210-10197-00

$7.49

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

SHAFT, IDLE GEAR

5BE-13342-00-00

$22.99

11

GEAR, OIL PUMP IDLE

5NL-13341-00-00

Unavailable

12

CIRCLIP(2R6)

99001-08600-00

$8.49

13

WASHER PLATE 164185720000

90201-12166-00

$9.49

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

HOUSING, STRAINER

5NL-13412-00-00

Unavailable

16

STRAINER, OIL

5NL-13411-00-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

18

HOSE, OIL 1

5UL-13464-00-00

Unavailable

19

O-RING (371)

93210-10197-00

$7.49

20

PIN, DOWEL(3VD)

99530-10114-00

$2.55

21

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

22

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

23

HOSE, OIL 2

5UL-13465-00-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

25

O-RING (371)

93210-10197-00

$7.49

26

PIN, DOWEL(3VD)

99530-10114-00

$2.55
