Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

REAR FENDER COMP.

5XD-21610-00-00

$53.99

6

NUT, REAR FENDER

5XD-21635-00-00

$27.99

7

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

8

COLLAR

90387-06009-00

$10.49

9

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

10

GUARD, FLAP

5TA-21642-00-00

$39.99

11

INSULATOR, SIDE COVER 2

5TA-2174T-00-00

Unavailable

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

WASHER, PLATE

90201-06557-00

$3.30

14

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

15

EMBLEM 1

5SG-2163G-09-00

Unavailable

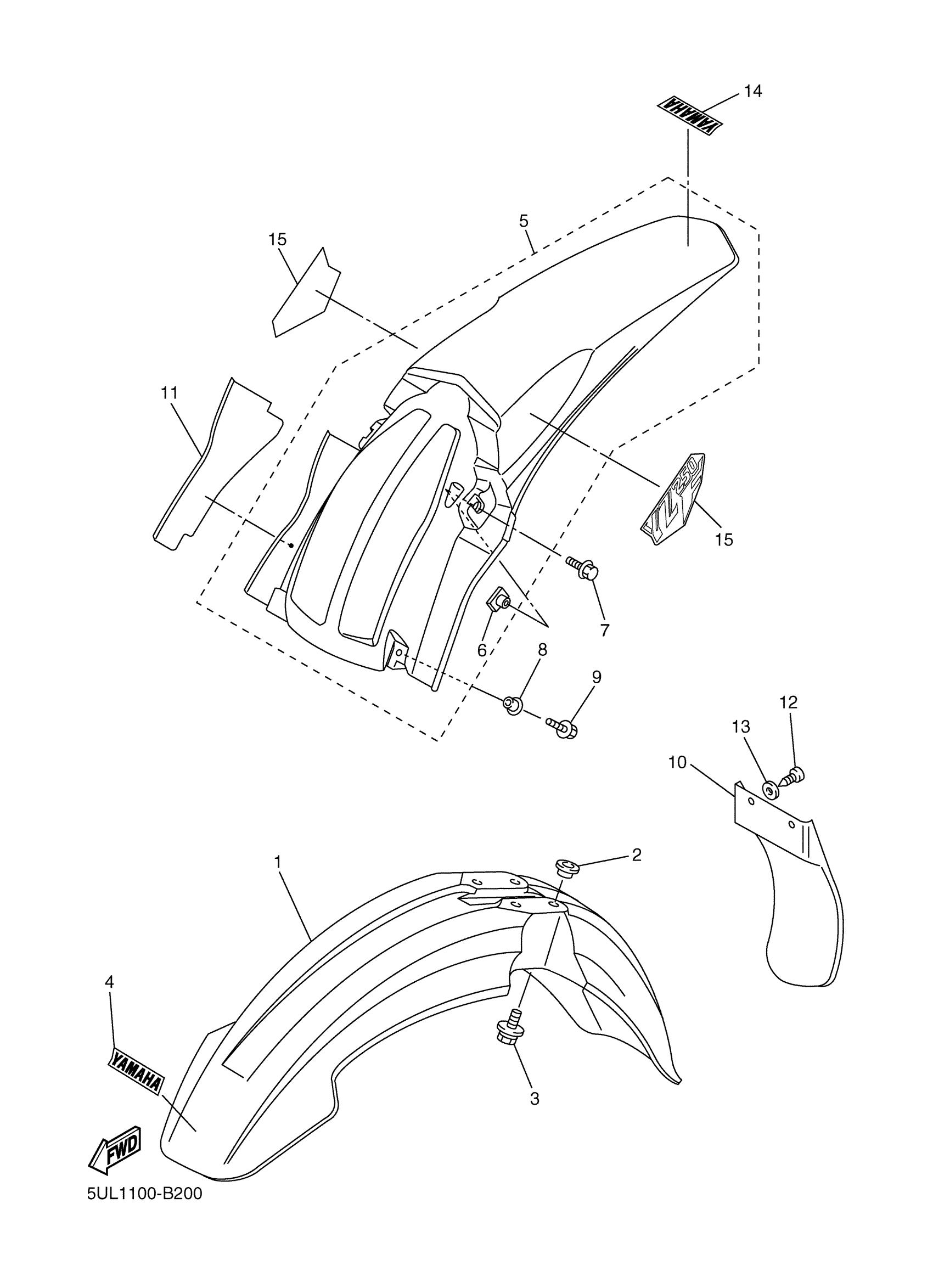

Yamaha YZ250FR (YZ250F) 5UL1 2003 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, WASHER BASED (4H7)

COLLAR

BOLT, WITH WASHER(4JX)

GUARD, FLAP

INSULATOR, SIDE COVER 2

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM YAMAHA

EMBLEM 1
