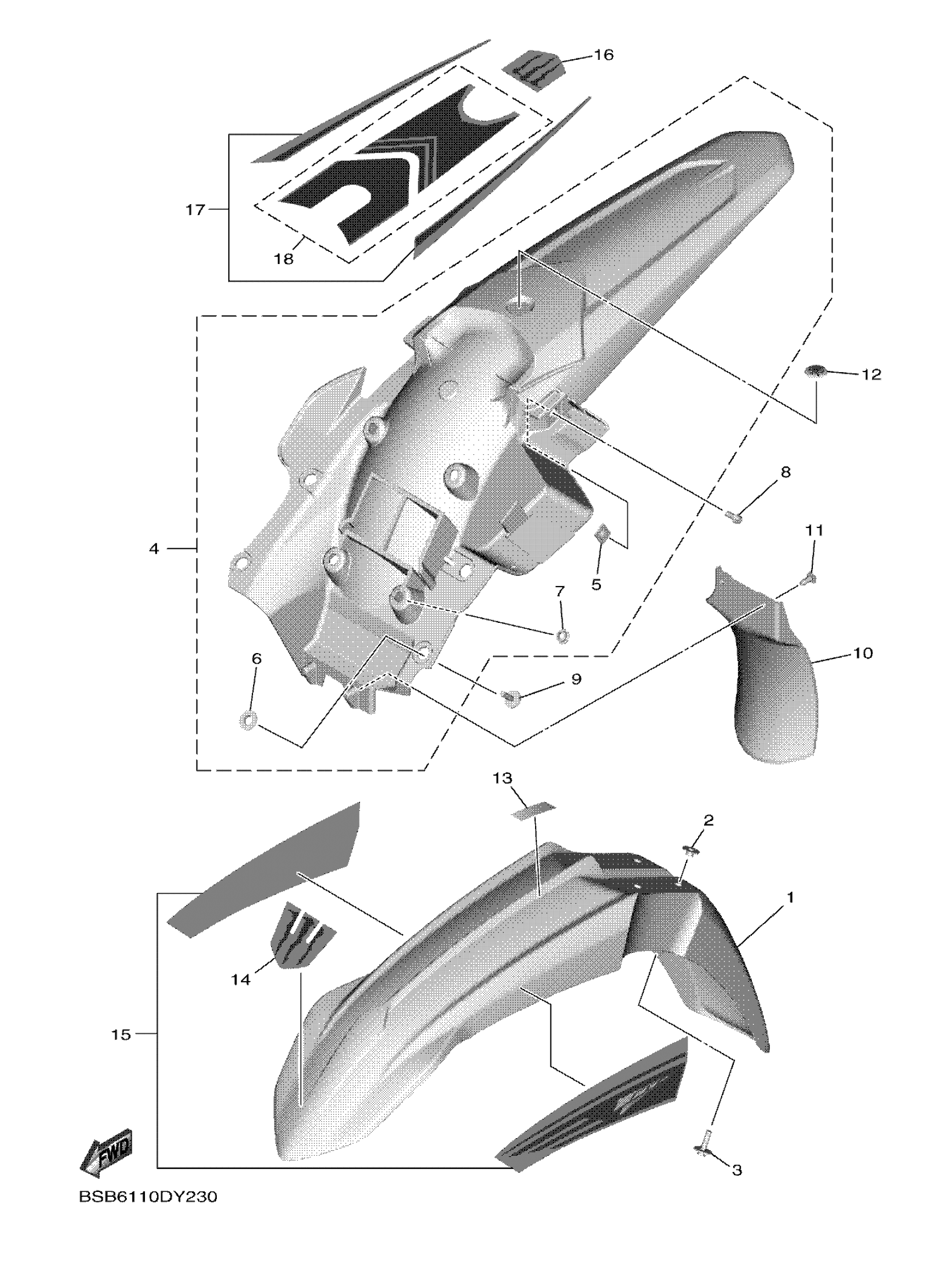

Yamaha YZ250FPME (YZ250F MONSTER) BSB6 2023 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR9-21511-30-00

$32.89

2

COLLAR

90387-06259-00

$5.76

3

BOLT, WITH WASHER

90119-06268-00

$1.93

4

REAR FENDER COMP.

BR9-21610-30-00

$40.58

5

NUT, REAR FENDER

5XE-21635-10-00

$11.84

6

COLLAR

5BE-21749-00-00

$4.48

7

COLLAR

90387-08086-00

$5.05

8

BOLT, FLANGE

90105-06100-00

$5.20

9

BOLT, WITH WASHER

90119-06268-00

$1.93

10

GUARD, FLAP

3D7-21642-00-00

$22.84

11

SCREW, TAPPING

97702-60016-00

$1.15

12

TUNING FORK MARK

5FK-2175C-31-00

$3.38

13

LABEL, CAUTION

3FB-2415E-03-00

$2.80

14

EMBLEM

B2W-21578-00-00

$22.24

15

GRAPHIC SET 1

B2W-2159A-10-00

$49.44

16

EMBLEM 1

B2W-2163G-00-00

Unavailable

17

GRAPHIC SET

B2W-2167A-10-00

Unavailable

18

GRAPHIC SET 2

B2W-2167B-10-00

Unavailable
