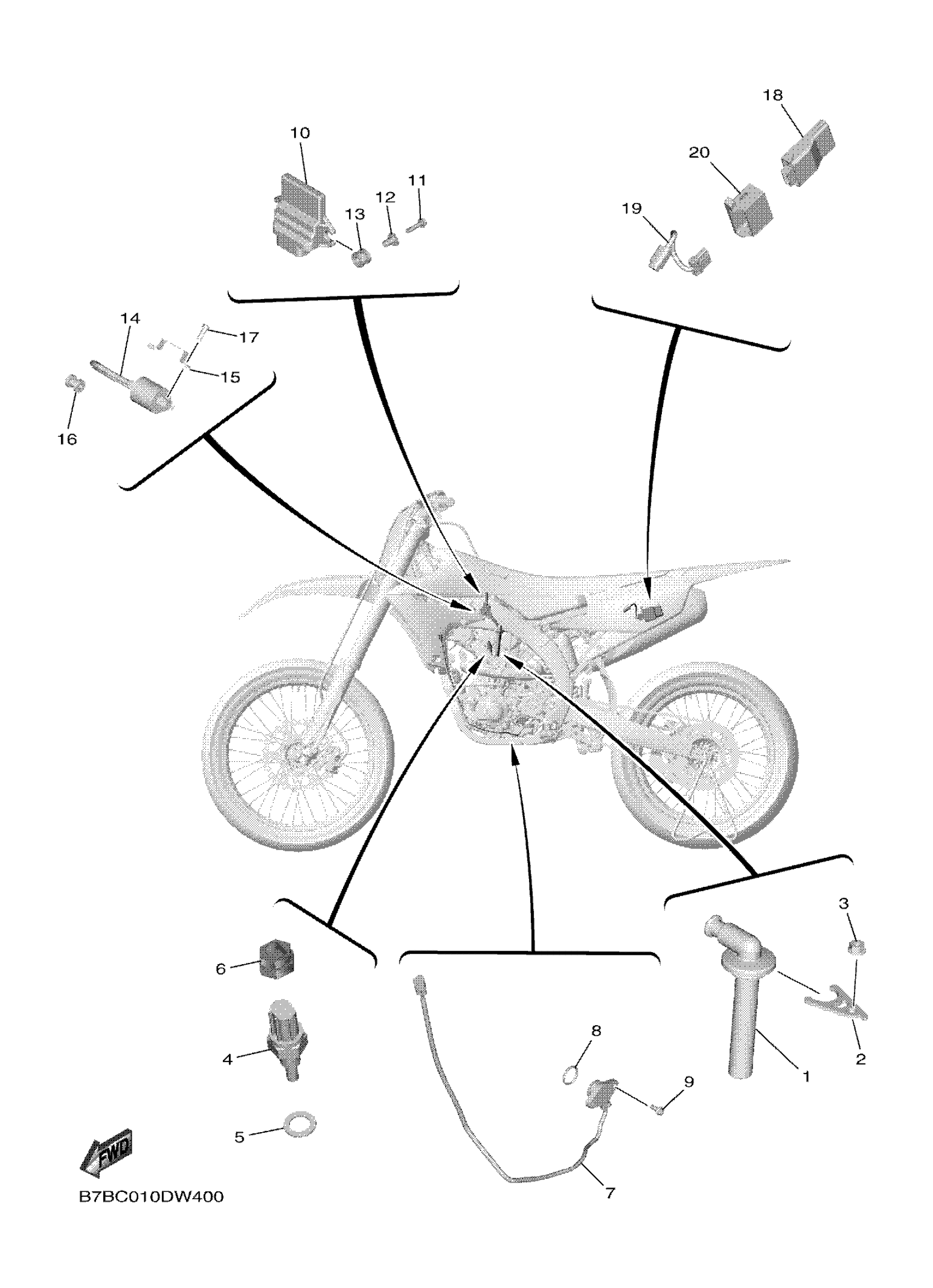

Yamaha YZ250FPME (YZ250F MONSTER) BSB6 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

1SM-82370-01-00

$95.99

2

HOLDER

BR9-11395-00-00

$5.60

3

NUT, FLANGE

95702-06500-00

$2.39

4

THERMO UNIT

52B-H3591-00-00

$34.99

5

GASKET

90430-10004-00

$7.49

6

HOLDER, LEVER UNDER

B2W-82915-00-00

$7.49

7

NEUTRAL SWITCH ASSY

B11-82540-01-00

$60.99

8

O-RING

93210-21001-00

$5.60

9

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$8.49

10

ENGINE CONTROL UNIT ASSY

B7B-8591A-60-00

$544.99

11

BOLT, FLANGE

90105-05005-00

$1.20

12

COLLAR

90387-05048-00

$5.60

13

GROMMET

90480-13029-00

$5.60

14

IGNITION COIL ASSY

B7B-82310-03-00

$55.99

15

CORE, SIDE

BR9-8231U-00-00

$21.99

16

GROMMET

90480-11015-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable

18

COMMUNICATION CONT. UNIT ASSY

BR9-85810-02-00

Unavailable

19

WIRE, LEAD

BR9-85721-00-00

Unavailable

20

BAND

BR9-85546-00-00

Unavailable
