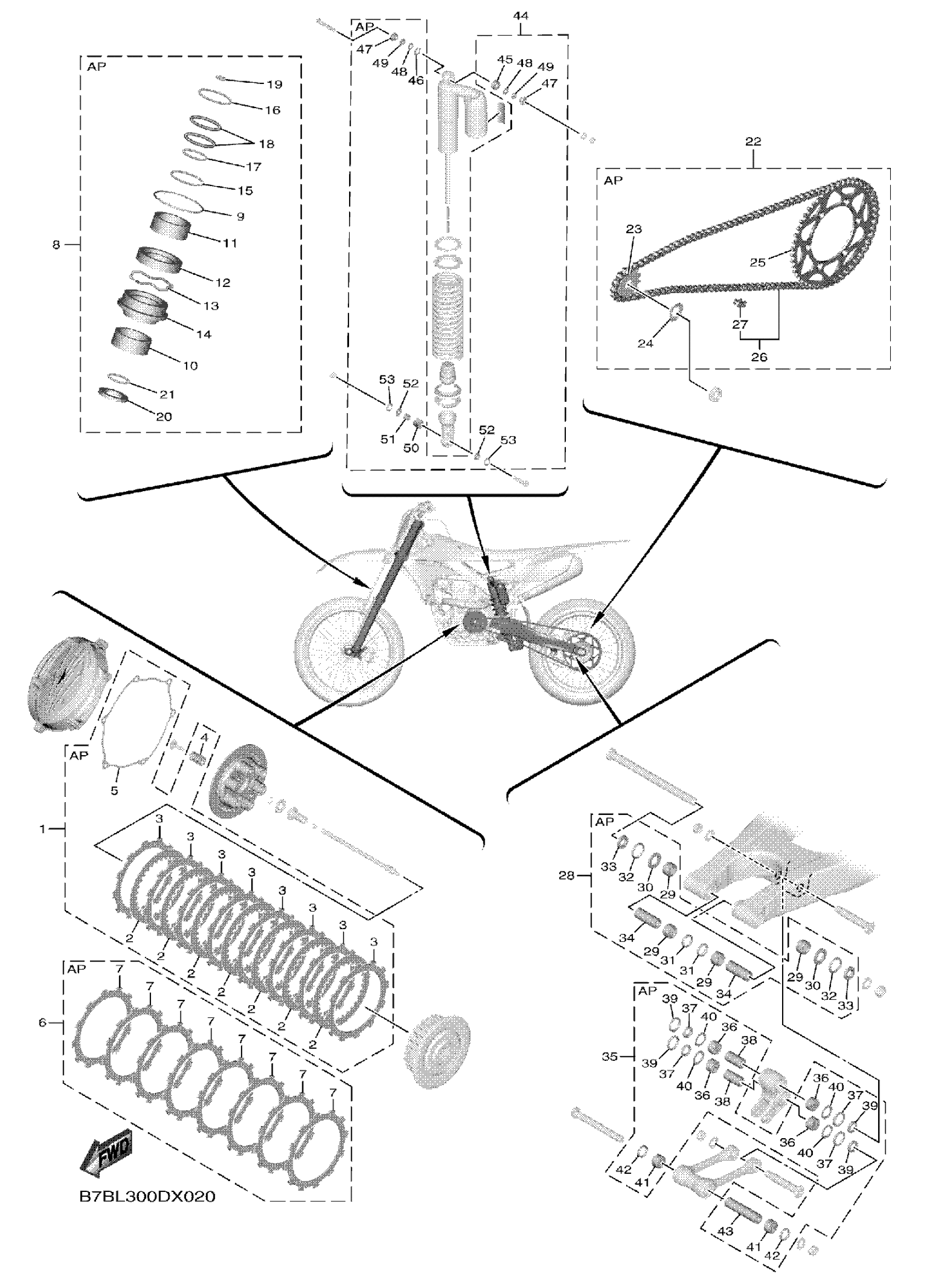

Yamaha YZ250FPME (YZ250F MONSTER) BSB6 2023 3 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B7B-W001G-00-00

$159.99

2

PLATE, CLUTCH 2

B7B-16325-00-00

$8.49

3

PLATE, FRICTION

B7B-16321-00-00

$20.99

4

SPRING, COMPRESSION

90501-230A7-00

$4.29

5

GASKET

B7B-15453-00-00

$14.99

6

FRICTION PLATE KIT

B7B-W001M-00-00

$106.99

7

PLATE, FRICTION

B7B-16321-00-00

$20.99

8

FORK SEAL KIT (ONE FORK)

BDB-W003B-01-00

$74.99

9

RING, SNAP

17D-23153-00-00

$4.63

10

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

11

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

12

OIL SEAL

B29-23145-00-00

$22.99

13

RING, SNAP

5XE-23153-L0-00

$7.99

14

SEAL, DUST

5XE-23144-L0-00

$22.99

15

O-RING

1C3-23147-L1-00

$3.48

16

O-RING

1C3-23188-L2-00

Unavailable

17

O-RING

1C3-23188-P0-00

Unavailable

18

O-RING

1AE-23147-01-00

Unavailable

19

O-RING

1C3-23188-R1-00

Unavailable

20

GASKET

2HH-23158-L0-00

Unavailable

21

GASKET

276-23114-02-00

Unavailable

22

CHAIN & SPROCKET KIT

B7B-W001A-20-00

Unavailable

23

SPROCKET, DRIVE (13T)

9383B-13218-00

Unavailable

24

WASHER, LOCK

90215-20003-00

Unavailable

25

SPROCKET, DRIVEN (50T)

B2W-25450-00-00

Unavailable

26

CHAIN

9Y582-60113-00

Unavailable

27

JOINT, CHAIN

94682-60001-00

Unavailable

28

SWING ARM PIVOT BEARING KIT

BR9-W002C-00-00

Unavailable

29

BEARING, CYLINDRICAL(2VM)

93317-22262-00

Unavailable

30

BEARING

93342-22217-00

Unavailable

31

OIL SEAL

93106-22002-00

Unavailable

32

OIL SEAL (36F)

93109-28043-00

Unavailable

33

COLLAR

90387-17019-00

Unavailable

34

COLLAR

90387-1714S-00

Unavailable

35

SHOCK LINKAGE BEARING KIT

33D-W002E-00-00

Unavailable

36

BEARING

93315-32166-00

Unavailable

37

OIL SEAL

93109-25001-00

Unavailable

38

COLLAR

90387-16026-00

Unavailable

39

WASHER

90209-16011-00

Unavailable

40

WASHER, PLATE

90201-21014-00

Unavailable

41

BEARING

93315-32166-00

Unavailable

42

OIL SEAL

93109-21001-00

Unavailable

43

COLLAR

90387-14016-00

Unavailable

44

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable

45

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

Unavailable

46

CIRCLIP

5DH-23183-00-00

Unavailable

47

COLLAR, DISTANCE

1C3-22253-50-00

Unavailable

48

SEAL, DUST

3JE-22475-00-00

Unavailable

49

SEAL, RING

4EW-22474-00-00

Unavailable

50

BEARING

5UN-22176-00-00

Unavailable

51

BUSH

5MV-22184-00-00

Unavailable

52

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

53

SEAL, DUST

5NY-22475-00-00

Unavailable
