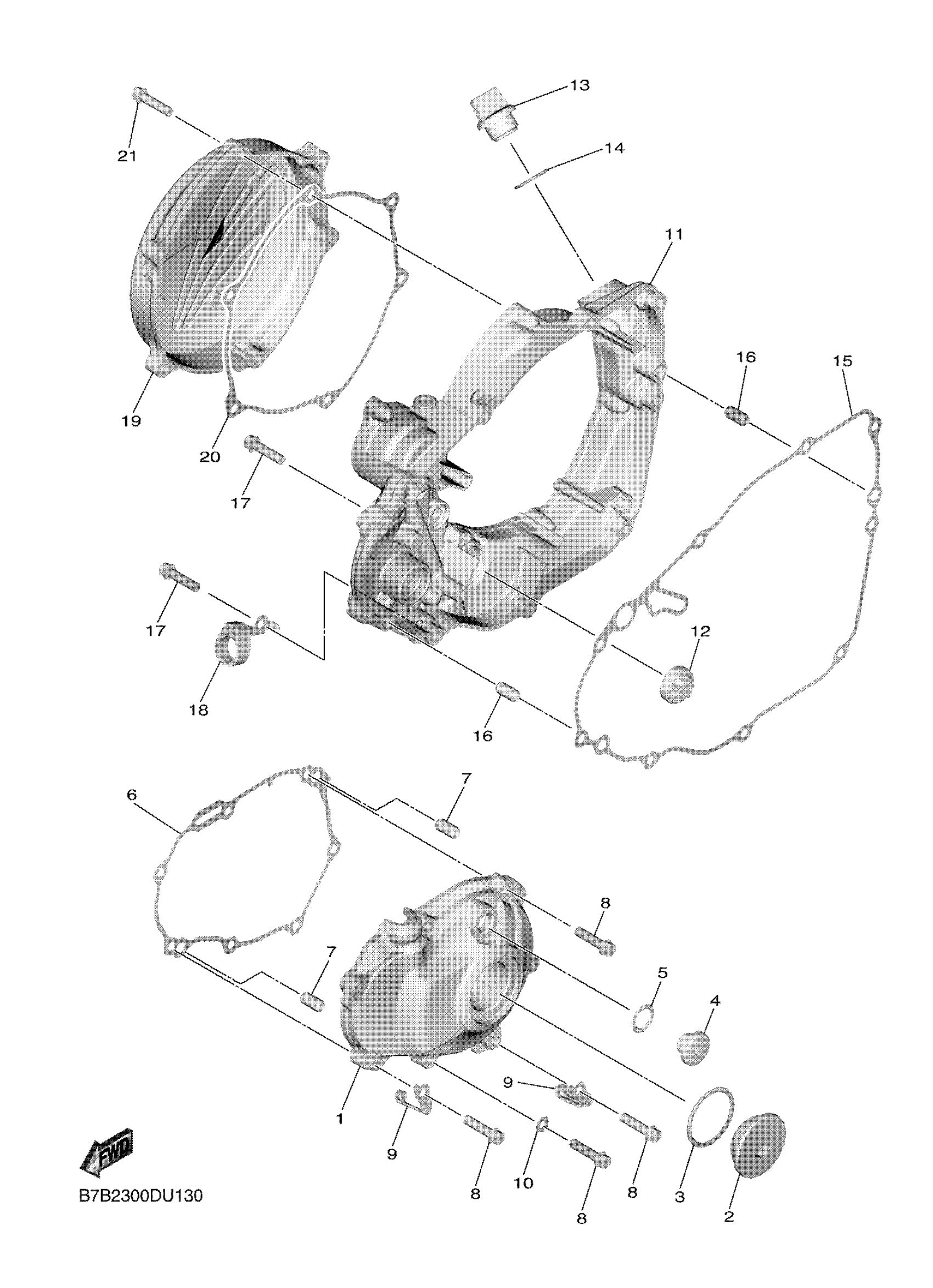

Yamaha YZ250FPL (YZ250F) BSB1 2023 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B7B-15411-00-00

$102.62

2

PLUG, STRAIGHT SCREW

90340-36007-00

$20.85

3

O-RING

93210-35804-00

$0.46

4

PLUG, STRAIGHT SCREW

90340-14021-00

$25.03

5

O-RING (2H9)

93210-14369-00

$5.42

6

GASKET, CRANKCASE COVER 1

B7B-15451-00-00

$15.55

7

PIN, DOWEL(3XW)

91808-16023-00

$5.26

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

9

CLAMP

90465-08062-00

$3.45

10

GASKET 256113960000

90430-06014-00

Unavailable

11

COVER, CRANKCASE 3

B7B-15431-00-00

$127.30

12

GAUGE, LEVEL

3Y1-15361-00-00

$23.80

13

PLUG, OIL

3Y1-15363-10-00

$15.94

14

O-RING (646)

93210-19123-00

Unavailable

15

GASKET, CRANKCASE COVER 3

B7B-15462-00-00

$14.26

16

PIN, DOWEL(3XW)

91808-16023-00

$5.26

17

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

18

HOLDER

17D-15378-00-00

Unavailable

19

COVER, 1

B7B-15415-00-00

Unavailable

20

GASKET

B7B-15453-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47
