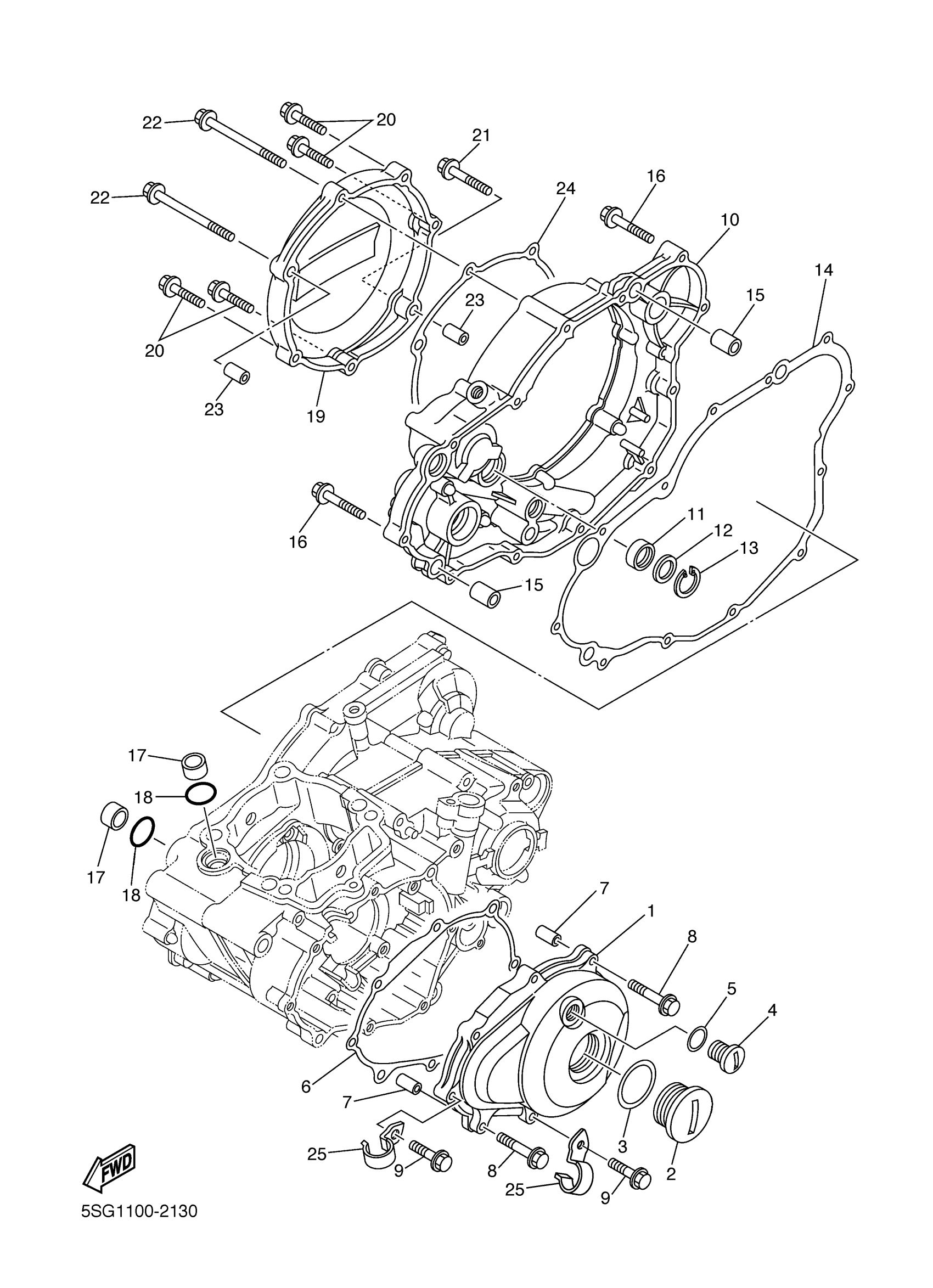

Yamaha YZ250FP (YZ250F) 5SG1 2002 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

5NL-15411-00-00

Unavailable

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$23.99

O-RING (341)

93210-32172-00

$7.49

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

O-RING (2H9)

93210-14369-00

$7.49

GASKET, CRANKCASE COVER 1

5NL-15451-00-00

$23.99

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, SMALL FLANGE

95027-06035-00

$2.22

BOLT, SMALL FLANGE

95027-06025-00

$4.16

COVER, CRANKCASE 3

5NL-15431-11-00

Unavailable

OIL SEAL(4GY)

93101-14164-00

$11.49

WASHER (566)

90201-15701-00

$8.49

CIRCLIP

99009-22500-00

$8.49

GASKET, CRANKCASE COVER 3

5NL-15462-00-00

$31.99

PIN, DOWEL(J38)

91812-16001-00

$7.49

BOLT, SMALL FLANGE

95027-06035-00

$2.22

PIPE, WATER

5NL-12564-00-00

Unavailable

O-RING (M124)

93210-16772-00

Unavailable

COVER, GENERATOR

5NL-15415-00-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

$4.16

BOLT, SMALL FLANGE

95027-06035-00

$2.22

BOLT, WASHER BASED

90105-065A1-00

Unavailable

PIN, DOWEL(3XW)

91808-16023-00

$8.49

GASKET

5NL-15453-10-00

Unavailable

CLAMP

90465-08029-00

Unavailable
