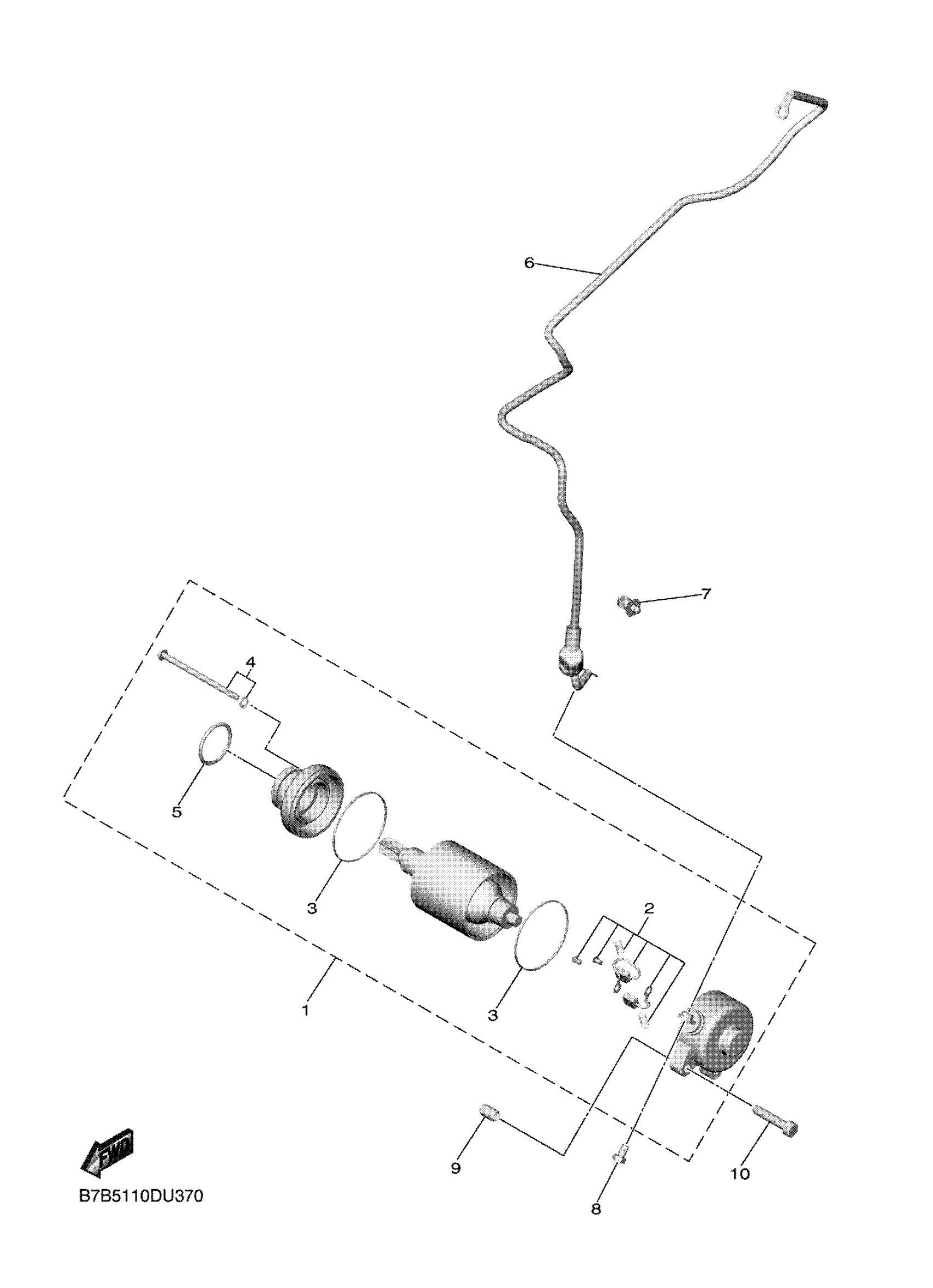

Yamaha YZ250FNME (YZ250F MONSTER) B7BR 2022 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

B7B-81890-02-00

$241.82

2

BRUSH SET

2GC-81801-00-00

$8.14

3

GASKET

2GB-81861-00-00

$4.71

4

SCREW 2

2GB-81828-00-00

Unavailable

5

O-RING(1RL)

93210-25711-00

$5.59

6

CORD COMP.

B7B-8183G-10-00

$68.16

7

CLAMP

90464-30011-00

$1.52

8

BOLT 2

5TJ-81828-01-00

$4.06

9

PIN, DOWEL

99590-08012-00

$2.60

10

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56
