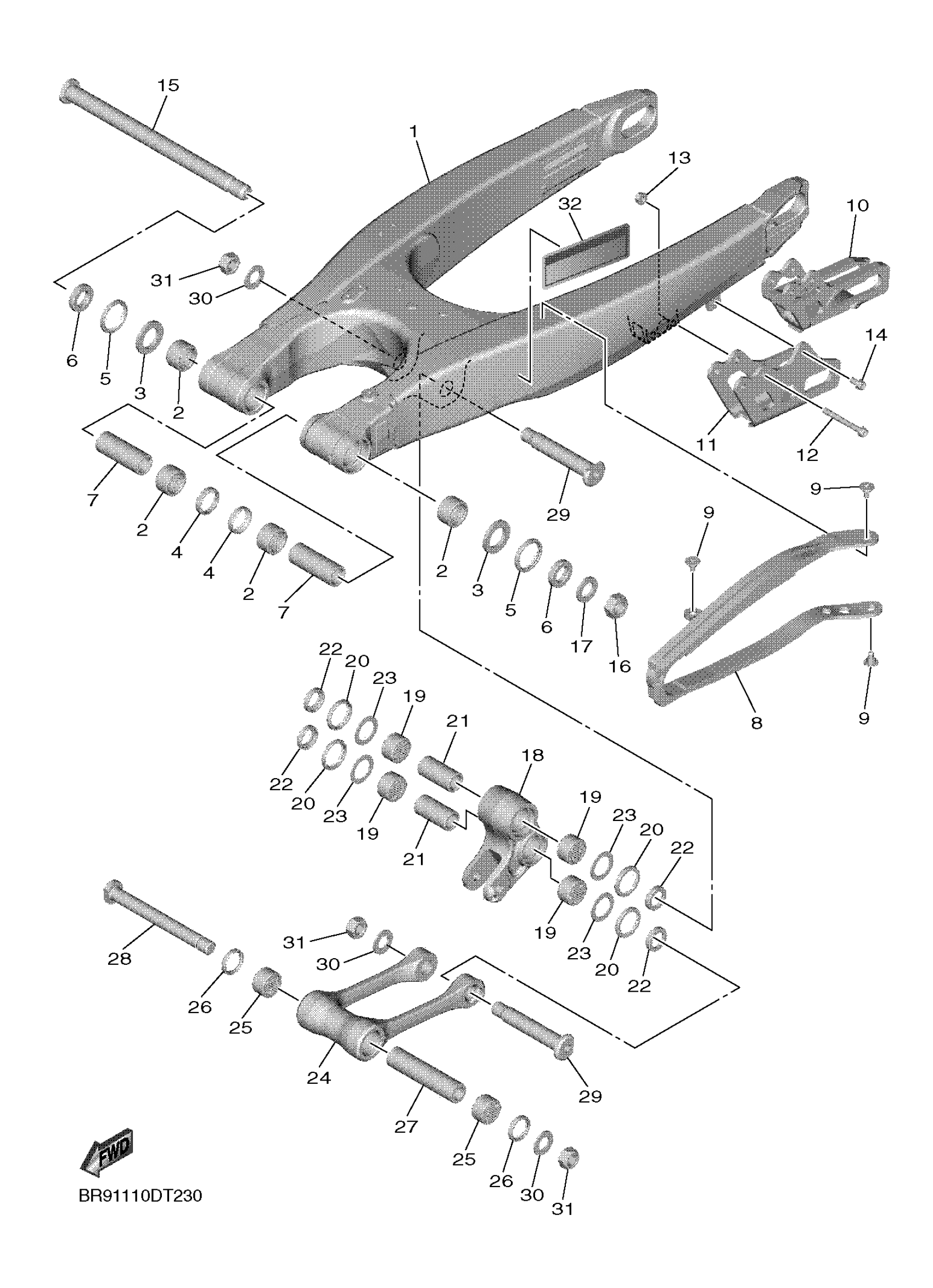

Yamaha YZ250FNME (YZ250F MONSTER) B7BR 2022 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP

1SL-22110-10-00

$896.99

1

REAR ARM COMP.

BR9-22110-10-00

Unavailable

2

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$31.85

3

BEARING

93342-22217-00

$34.08

4

OIL SEAL

93106-22002-00

$8.69

5

OIL SEAL (36F)

93109-28043-00

$8.98

6

COLLAR

90387-17019-00

$9.50

7

COLLAR

90387-1714S-00

$34.70

8

SEAL, GUARD

34P-22151-01-00

$51.04

9

SCREW, 1

1C3-22969-90-00

$5.37

10

SUPPORT, CHAIN

2S2-22199-70-00

$56.31

11

COVER, THRUST 1

2S2-22128-70-00

$26.67

12

BOLT, FLANGE DEEPRECESS

95E32-06050-00

Unavailable

13

NUT, FLANGE

95702-06500-00

$1.95

14

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.73

15

SHAFT, PIVOT

33D-22141-00-00

Unavailable

16

NUT, SELF-LOCKING

90185-16002-00

Unavailable

17

WASHER, PLATE

90201-16018-00

Unavailable

18

ARM, RELAY

17D-2217A-00-00

Unavailable

19

BEARING

93315-32166-00

Unavailable

20

OIL SEAL

93109-25001-00

Unavailable

21

COLLAR

90387-16026-00

Unavailable

22

WASHER

90209-16011-00

Unavailable

23

WASHER, PLATE

90201-21014-00

Unavailable

24

ROD, CONNECTING 1

BR9-2217F-00-00

Unavailable

25

BEARING

93315-32166-00

Unavailable

26

OIL SEAL

93109-21001-00

Unavailable

27

COLLAR

90387-14016-00

Unavailable

28

SHAFT 1

5XC-22121-91-00

Unavailable

29

SHAFT 2

34P-22122-00-00

Unavailable

30

WASHER, PLATE

90201-14020-00

Unavailable

31

NUT, SELF-LOCKING

90185-14010-00

Unavailable

32

LABEL, TIRE

3RV-21668-A1-00

Unavailable
