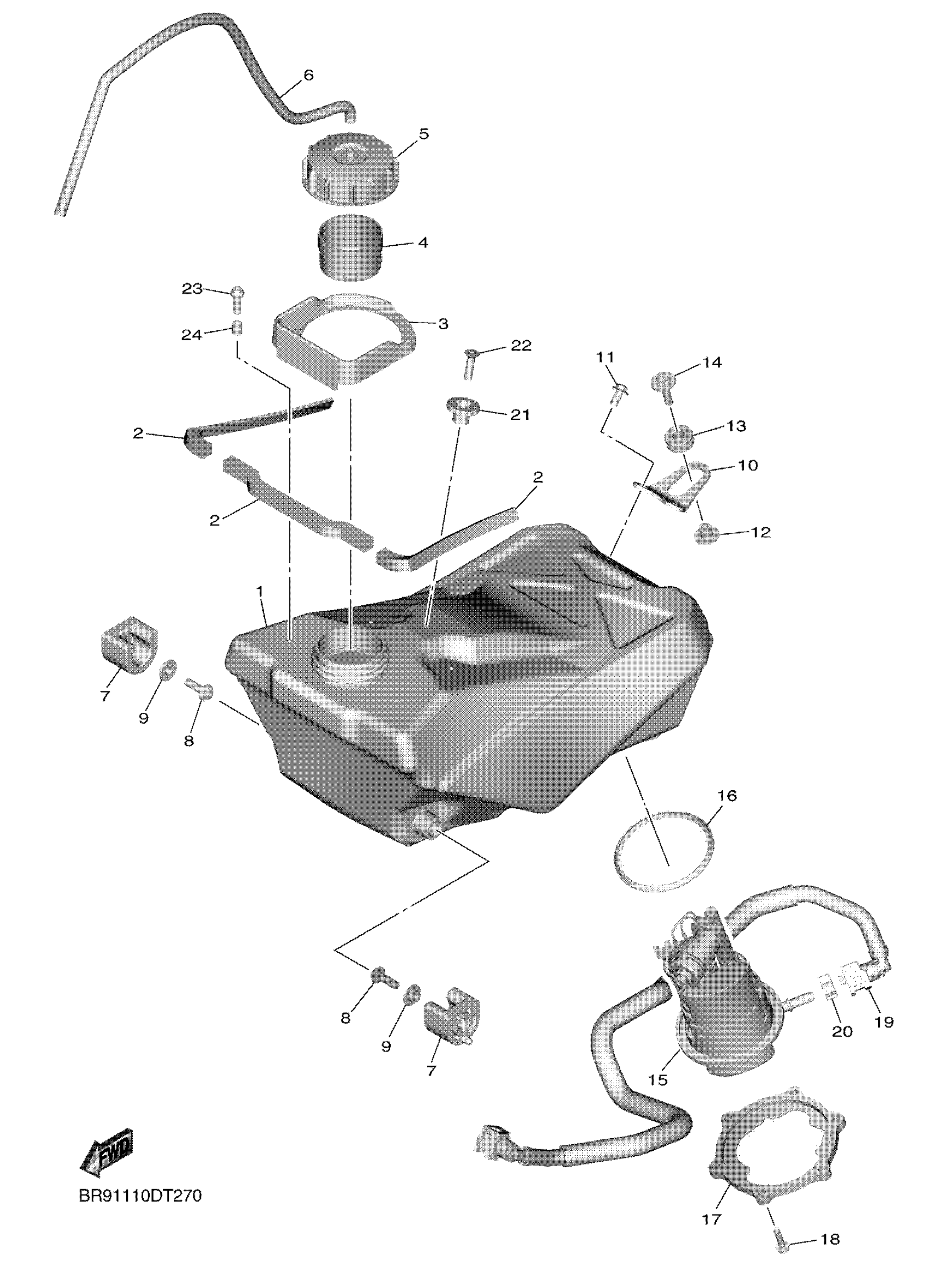

Yamaha YZ250FNME (YZ250F MONSTER) B7BR 2022 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BR9-24110-00-00

Unavailable

2

DAMPER, PLATE 6

2D1-2414R-00-00

$7.99

3

MOLD, FUEL TANK

BR9-24188-01-00

$31.99

4

TUBE, FILLER

BR9-24114-00-00

$15.99

5

CAP ASSY

BR9-24610-00-00

$68.99

6

HOSE

90445-098B3-00

$12.49

7

BRACKET, FUEL TANK 1

BR9-24191-00-00

$10.49

8

BOLT, FLANGE DEEP RECESS

95E32-06020-00

$0.86

9

COLLAR

90387-06170-00

$8.49

10

HOLDER

BR9-2419A-00-00

$7.49

11

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

12

COLLAR(4BH)

90387-066Y6-00

$9.49

13

GROMMET (4N0)

90480-10289-00

$8.49

14

BOLT, WITH WASHER

90119-06271-00

$3.23

15

FUEL PUMP COMP.

33D-13907-02-00

$536.99

16

O-RING

33D-24486-00-00

Unavailable

17

BRACKET, FUEL PUMP

BR9-24491-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

Unavailable

19

PIPE, FUEL 1

BR9-13971-01-00

Unavailable

20

CLAMP 1

33D-24135-00-00

Unavailable

21

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

22

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06171-00

Unavailable

24

COLLAR

90387-06284-00

Unavailable
