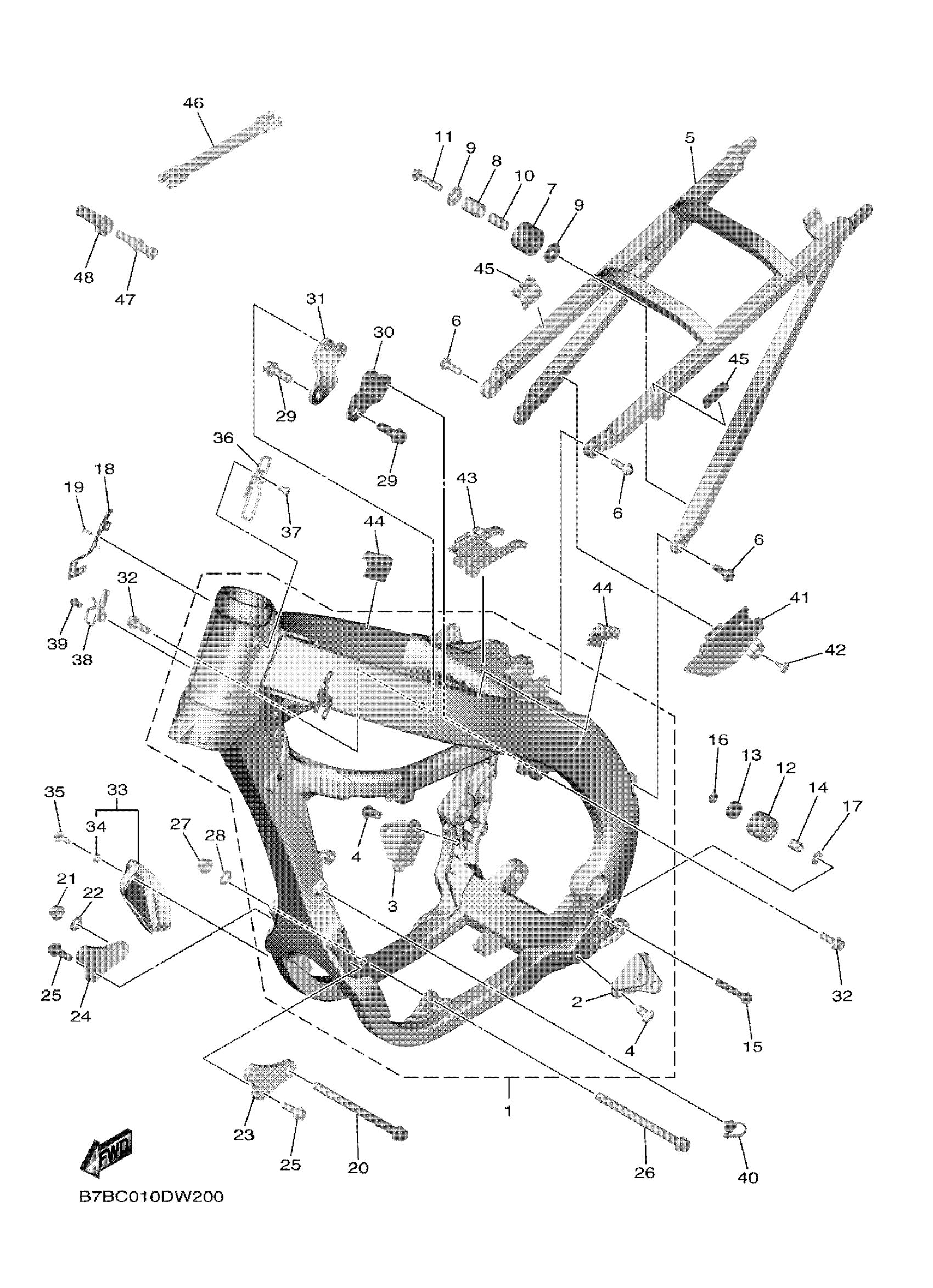

Yamaha YZ250FNME (YZ250F MONSTER) B7BR 2022 FRAME Diagram
#
1
FRONT FRAME COMP.
B2W-21101-01-00
Unavailable
16
NUT, U
95617-08100-00
Unavailable
17
WASHER, PLATE
90201-08043-00
Unavailable
18
BRACKET, BATTERY BOX
BR9-21149-00-00
Unavailable
19
RIVET, BLIND (2YK)
90267-32146-00
Unavailable
20
BOLT, FLANGE
90105-10230-00
Unavailable
21
NUT(4KG)
90179-10658-00
Unavailable
22
WASHER, PLATE
90201-10045-00
Unavailable
23
BRACKET, FRONT LOWER 1
B2W-21417-10-00
Unavailable
24
BRACKET, FRONT LOWER 2
B2W-21418-10-00
Unavailable
25
BOLT, FLANGE
90105-08143-00
Unavailable
26
BOLT, FLANGE
90105-10176-00
Unavailable
27
NUT(4KG)
90179-10658-00
Unavailable
28
WASHER, PLATE
90201-10045-00
Unavailable
29
BOLT, FLANGE
90105-10189-00
Unavailable
30
BRACKET, REAR UPPER 1
B7B-21425-10-00
Unavailable
31
BRACKET, REAR UPPER 2
B7B-21426-10-00
Unavailable
32
BOLT, FLANGE
90105-08226-00
Unavailable
33
PROTECTOR, ENGINE
B7B-21471-01-00
Unavailable
34
COLLAR
90387-06106-00
Unavailable
35
BOLT, FLANGE
90105-06170-00
Unavailable
36
HOLDER, CLUTCH CAB
1SL-21163-01-00
Unavailable
37
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
38
HOLDER, CLUTCH CAB
B29-21163-00-00
Unavailable
39
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
40
CLAMP
90464-31002-00
Unavailable
41
COVER, SIDE 6
BR9-2171X-02-00
Unavailable
42
RIVET
90269-06081-00
Unavailable
43
DAMPER, LOCATING 1
BR9-24181-00-00
Unavailable
44
DAMPER, LOCATING 2
BR9-24182-00-00
Unavailable
45
DAMPER, LOCATING 3
BR9-24183-10-00
Unavailable
46
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
47
CAP
18P-2467E-00-00
Unavailable
48
CASE, CAP
18P-2464V-01-00
Unavailable
