Description

Price

1

FENDER, FRONT

BR9-21511-30-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, WITH WASHER

90119-06268-00

$2.28

4

REAR FENDER COMP.

BR9-21610-30-00

$39.99

5

NUT, REAR FENDER

5XE-21635-10-00

$13.49

6

COLLAR

5BE-21749-00-00

$6.99

7

COLLAR

90387-08086-00

$7.49

8

BOLT, FLANGE

90105-06100-00

$7.49

9

BOLT, WITH WASHER

90119-06268-00

$2.28

10

GUARD, FLAP

3D7-21642-00-00

$28.99

11

SCREW, TAPPING

97702-60016-00

$2.19

12

TUNING FORK MARK

5FK-2175C-31-00

$5.49

13

LABEL, CAUTION

3FB-2415E-02-00

$4.84

14

EMBLEM

B2W-21578-00-00

$28.99

15

GRAPHIC SET 1

B2W-2159A-00-00

$47.99

16

EMBLEM 1

B2W-2163G-00-00

Unavailable

17

GRAPHIC SET

B2W-2167A-00-00

Unavailable

18

GRAPHIC SET 2

B2W-2167B-00-00

Unavailable

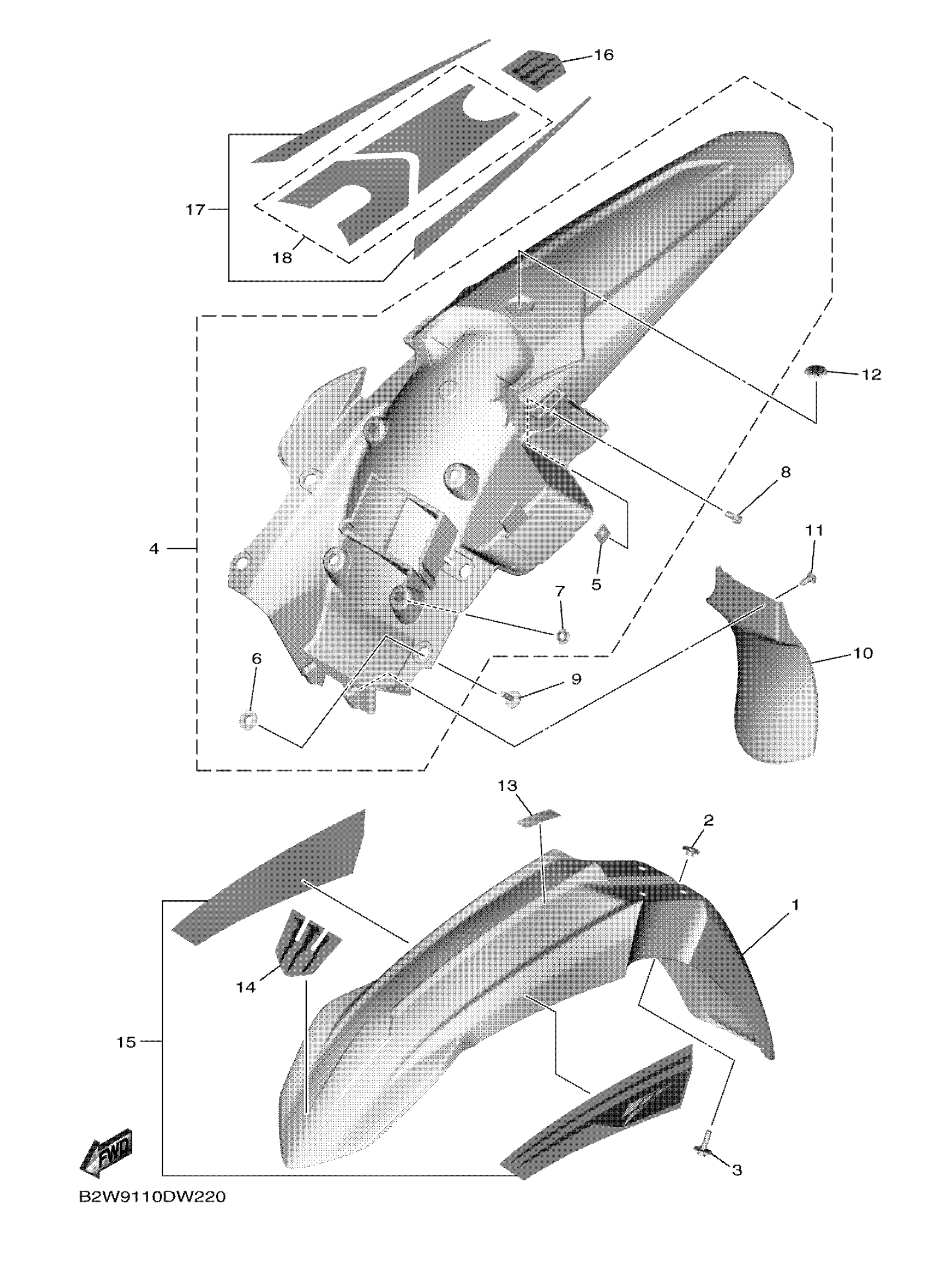

Yamaha YZ250FNME (YZ250F MONSTER) B7BR 2022 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER

REAR FENDER COMP.

NUT, REAR FENDER

COLLAR

COLLAR

BOLT, FLANGE

BOLT, WITH WASHER

GUARD, FLAP

SCREW, TAPPING

TUNING FORK MARK

LABEL, CAUTION

EMBLEM

GRAPHIC SET 1

EMBLEM 1

GRAPHIC SET

GRAPHIC SET 2
