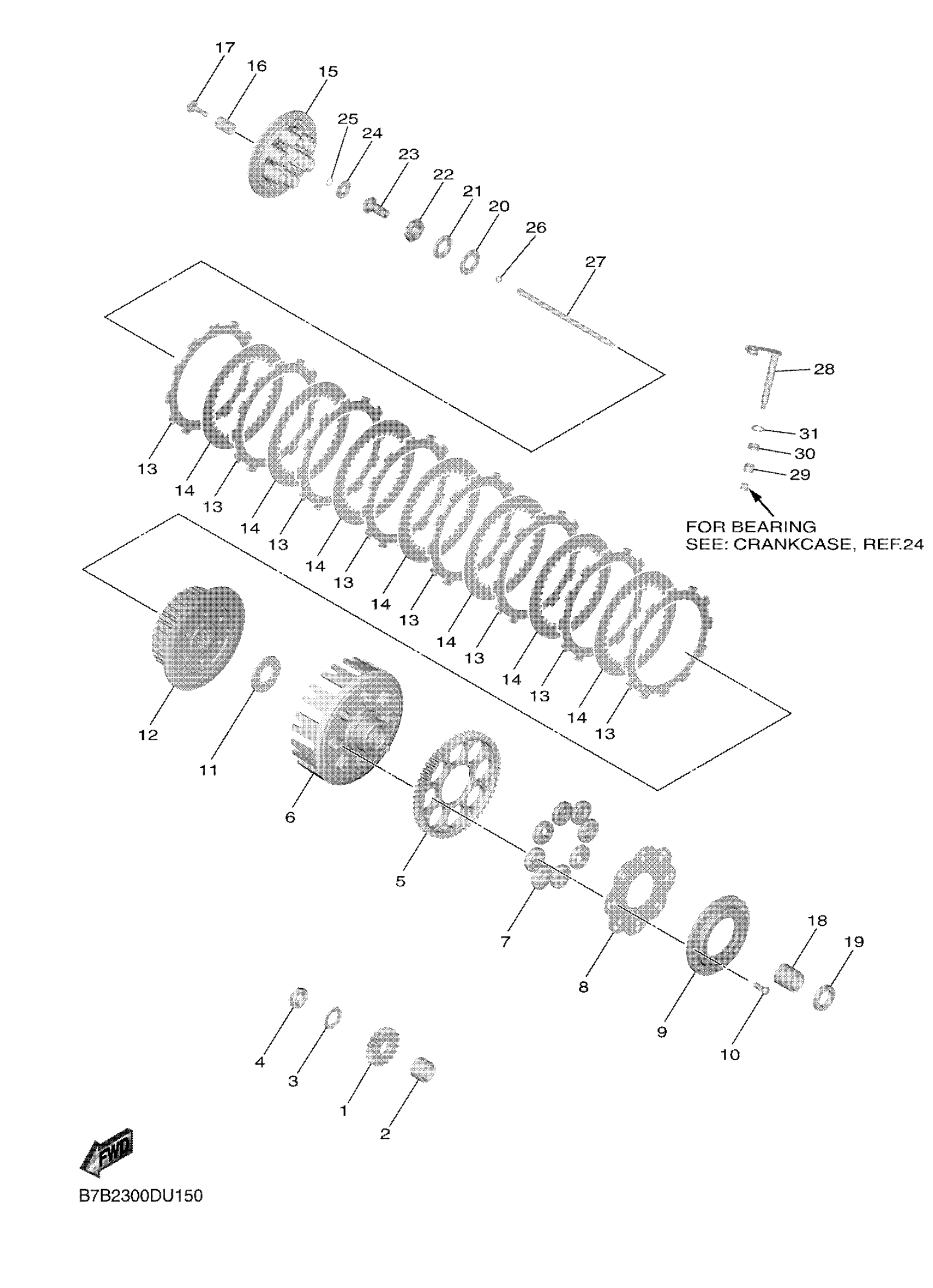

Yamaha YZ250FNL (YZ250F) B7BK 2022 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

B7B-16111-00-00

Unavailable

2

COLLAR

90387-19010-00

Unavailable

3

WASHER (517 CLUTCH)

90208-16019-00

$8.49

4

NUT

90170-16010-00

$12.49

5

GEAR, PRIMARY DRIVEN

B7B-16151-00-00

Unavailable

6

CLUTCH HOUSING ASSY

B7B-16310-10-00

$199.99

7

ABSORBER

5XC-16165-00-00

$9.99

8

PLATE, SIDE

B7B-16158-00-00

Unavailable

9

STARTER CLUTCH ASSY

B7B-15570-00-00

$268.99

10

SCREW

90149-06161-00

$7.49

11

PLATE, THRUST 1

5XD-16154-00-00

$15.49

12

BOSS, CLUTCH

B7B-16371-00-00

$129.99

13

PLATE, FRICTION

B7B-16321-00-00

$20.99

14

PLATE, CLUTCH 2

B7B-16325-00-00

$8.49

15

PLATE, PRESSURE 1

B7B-16351-00-00

$71.99

16

SPRING, COMPRESSION

90501-230A7-00

Unavailable

17

SCREW, WITH WASHER

90159-06061-00

Unavailable

18

SPACER 1

B7B-16181-00-00

Unavailable

19

COLLAR

90387-25038-00

Unavailable

20

WASHER, PLATE

90201-20030-00

Unavailable

21

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

22

NUT

90179-20022-00

Unavailable

23

ROD, PUSH 1

BR9-16356-00-00

Unavailable

24

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

25

CIRCLIP (4G0)

93440-10085-00

Unavailable

26

BALL (498)

93511-32027-00

Unavailable

27

ROD, PUSH 2

B7B-16357-00-00

Unavailable

28

PUSH LEVER COMP.

B7B-16381-00-00

Unavailable

29

BEARING

93317-11096-00

Unavailable

30

OIL SEAL

93102-10008-00

Unavailable

31

CIRCLIP

99009-18500-00

Unavailable
