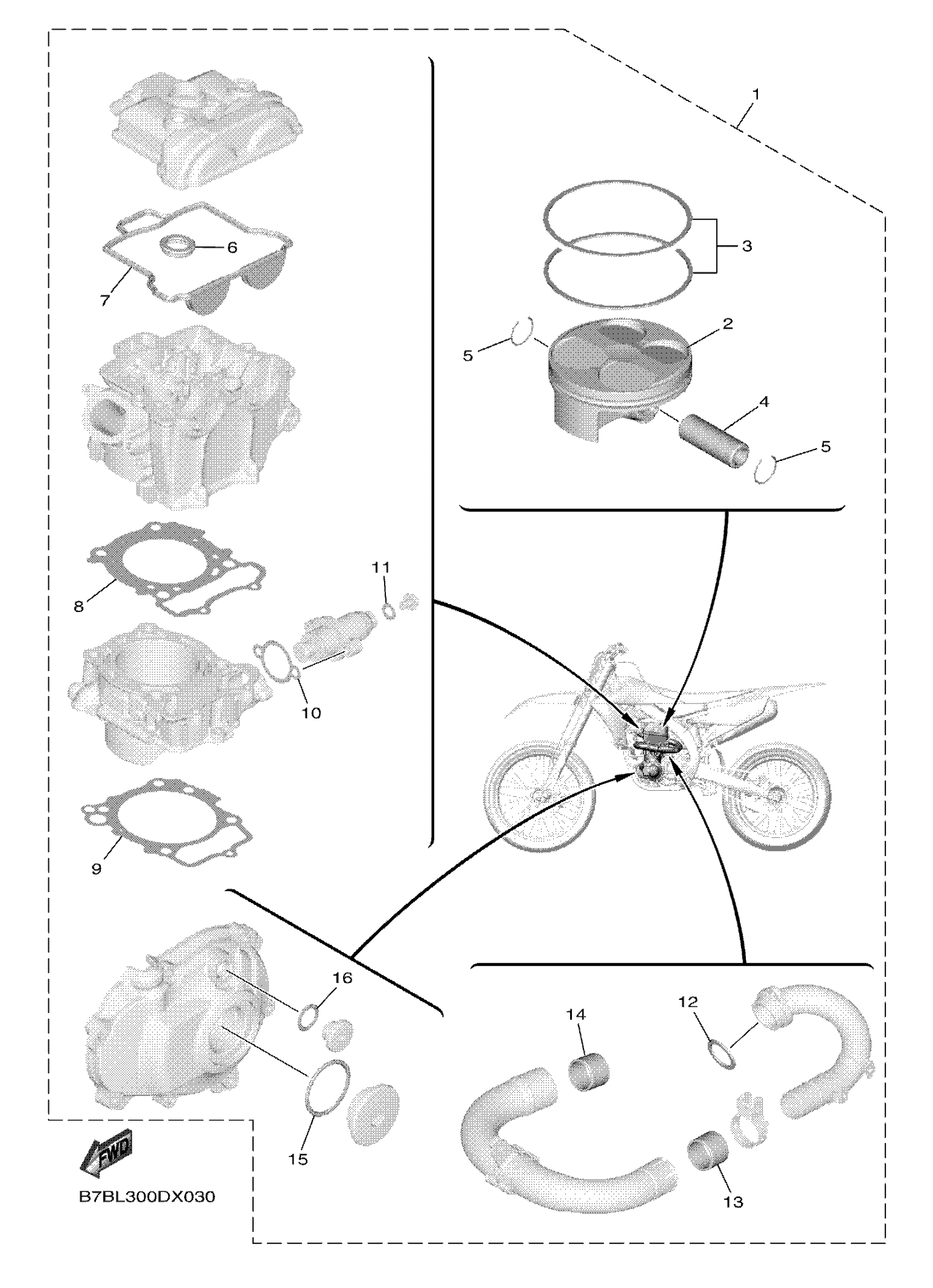

Yamaha YZ250FNL (YZ250F) B7BK 2022 4 PISTON REBUILT KIT Diagram

Description

Price

PISTON REBUILT KIT

BAJ-WB033-00-00

$216.99

PISTON (STD)

B7B-11631-00-00

$94.99

PISTON RING SET (STD)

1SM-11603-01-00

$40.99

PIN, PISTON

1SM-11633-30-00

$42.99

CIRCLIP(1AR)

93450-17129-00

$4.14

GASKET, HEAD COVER 2

1SM-11194-00-00

$16.49

GASKET, HEAD COVER 1

1SM-11193-00-00

$30.99

GASKET, CYLINDER HEAD 1

B7B-11181-00-00

$31.99

GASKET, CYLINDER

B7B-11351-00-00

$13.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

GASKET

5SL-12214-00-00

$7.99

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

GASKET, SILENCER

19D-14755-00-00

$16.49

GASKET, MUFFLER

1SL-14714-00-00

$29.99

O-RING

93210-35804-00

$0.48

O-RING (2H9)

93210-14369-00

Unavailable
