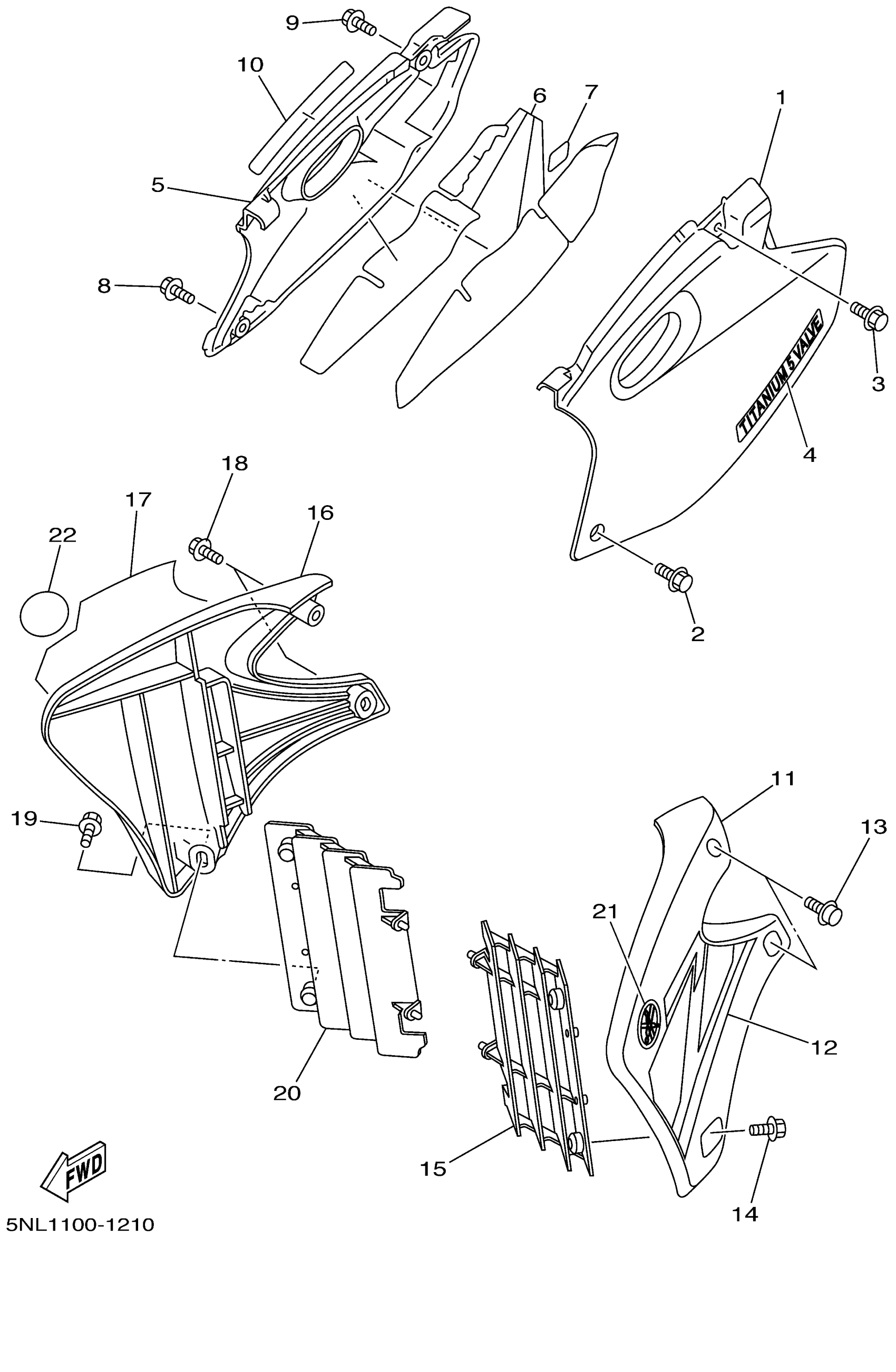

Yamaha YZ250FN (YZ250F) 5NL1 2001 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5BE-21711-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

EMBLEM 1

5JG-21781-50-00

Unavailable

5

COVER, SIDE 2

5BE-21721-00-00

Unavailable

6

INSULATOR, SIDE COVER

5SF-2174A-00-00

Unavailable

7

SEAL 1

3FY-21575-01-00

$10.99

8

BOLT, FLANGE

95817-06016-00

$2.75

9

BOLT, WITH WASHER

90119-08238-00

$4.29

10

EMBLEM 1

5JG-21781-50-00

Unavailable

11

COVER, SIDE 3

5NL-21731-00-00

Unavailable

12

GRAPHIC 1

5JG-2173E-50-00

Unavailable

13

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

14

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

15

PANEL 1

5NL-2172A-20-00

$21.99

16

COVER, SIDE 4

5NL-21741-00-00

Unavailable

17

GRAPHIC 2

5JG-2173F-50-00

Unavailable

18

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

19

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

20

PANEL 1

5NL-2172A-20-00

$21.99

21

TUNING FORK MARK

5MV-2175C-00-00

Unavailable

22

TUNING FORK MARK

5MV-2175C-00-00

Unavailable
