Description

Price

1

SEGMENT

4EW-18185-00-00

$90.43

2

PIN, SHIFT

3XJ-18173-10-00

$15.34

3

GUIDE, SHIFT

5BE-18172-00-00

$20.00

4

BOLT

90101-06664-00

$2.44

5

LEVER, SHIFT 2

5LP-18122-01-00

$78.56

6

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$4.89

7

PIN, PAWL

3XJ-18184-00-00

$11.85

8

PAWL, SHIFTER

3XJ-18182-00-00

$12.22

9

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$10.05

10

SHIFT SHAFT ASSY

5UL-18101-00-00

$85.74

11

COLLAR

90387-12033-00

$6.08

12

SPRING, TORSION(4DA)

90508-291A8-00

$7.61

13

PIN, DOWEL

93608-33002-00

$11.73

14

OIL SEAL (4G0)

93102-12224-00

$7.79

15

SHIFT PEDAL ASSY

5UL-18110-00-00

Unavailable

16

. BOLT, FLANGE

95027-06020-00

$0.93

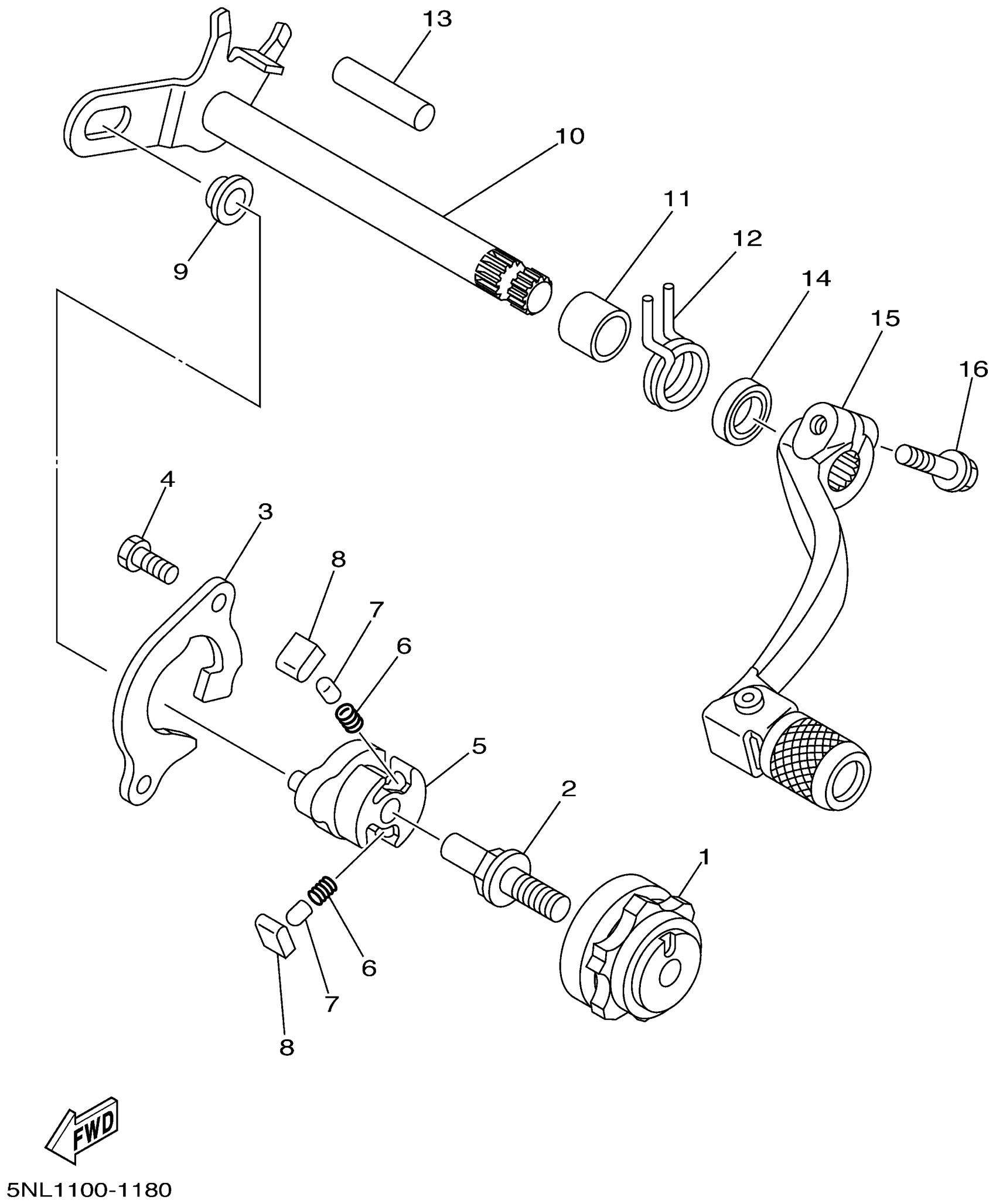

Yamaha YZ250FN (YZ250F) 5NL1 2001 SHIFT SHAFT Diagram
