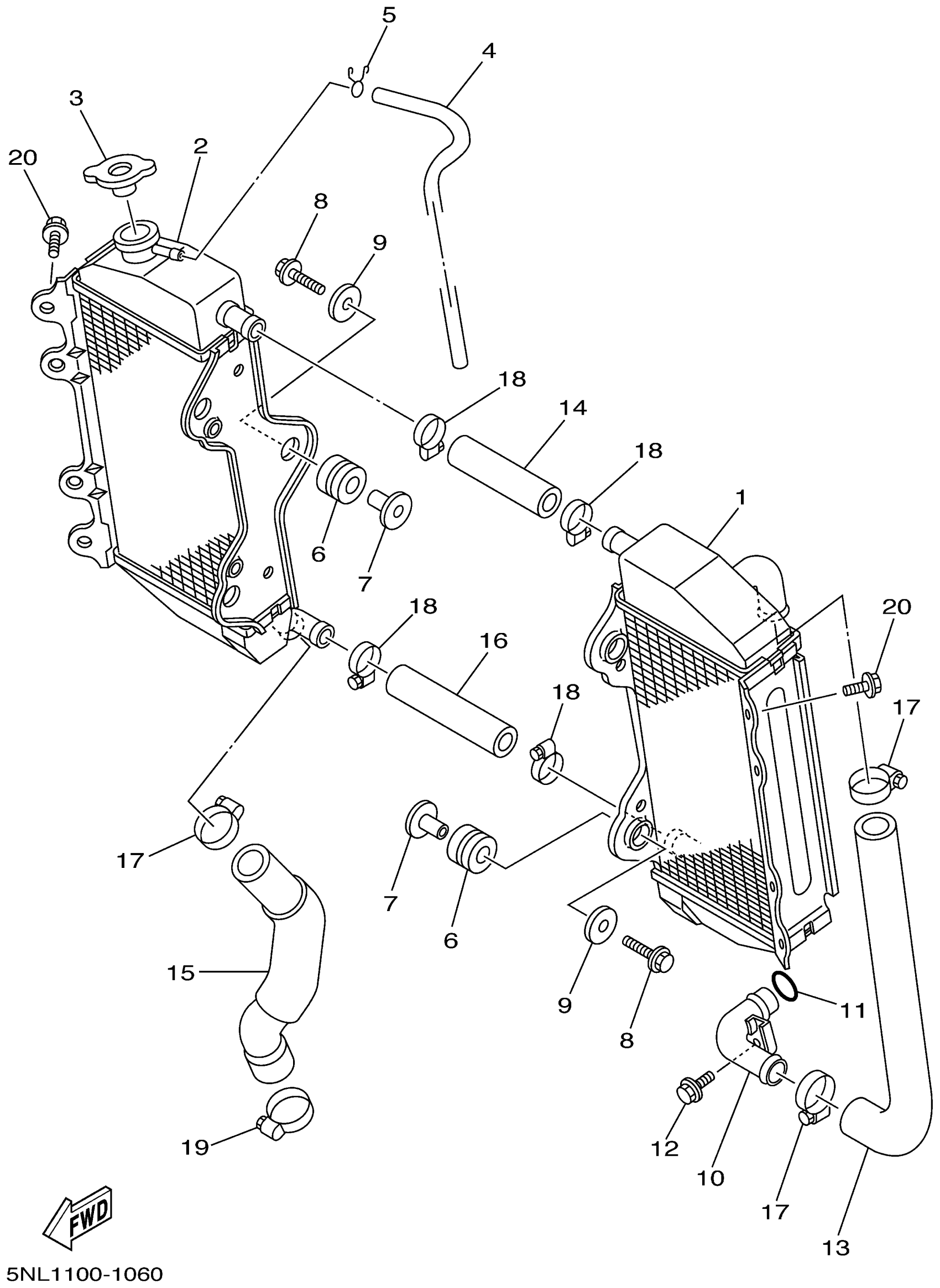

Yamaha YZ250FN (YZ250F) 5NL1 2001 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5NL-1240A-10-00

$444.99

2

RADIATOR ASSY

5NL-12461-10-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$62.99

4

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

5

CLIP

90467-090A2-00

$4.41

6

GROMMET(3RB)

90480-15528-00

$8.49

7

COLLAR

90387-0614M-00

$11.49

8

BOLT, SMALL FLANGE

95027-06025-00

$4.16

9

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

10

PIPE 1

5NL-12481-10-00

Unavailable

11

O-RING (22U)

93210-15566-00

$7.49

12

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

13

HOSE 1

5NL-12576-00-00

Unavailable

14

HOSE 2

5NL-12577-00-00

Unavailable

15

HOSE 3

5NL-12578-00-00

Unavailable

16

HOSE 4

5NL-12579-00-00

Unavailable

17

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

HOSE CLAMP ASSY

90450-32015-00

Unavailable

20

BOLT, FLANGE

95817-06010-00

Unavailable
