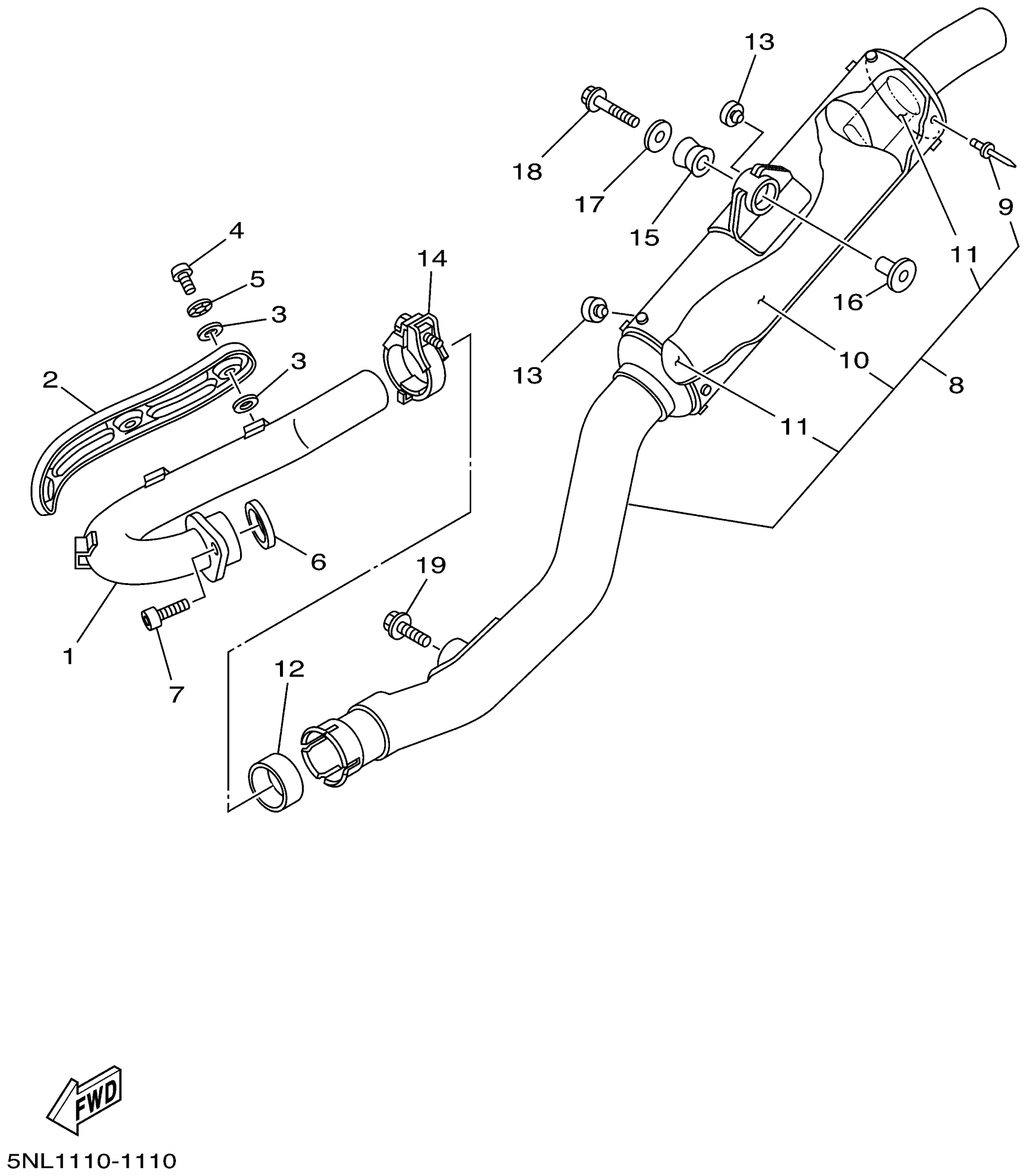

Yamaha YZ250FN (YZ250F) 5NL1 2001 EXHAUST Diagram

PIPE, EXHAUST 1

5UM-14611-00-00

Unavailable

PROTECTOR, EXHAUST PIPE

5XC-14628-00-00

$92.99

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

BOLT, SOCKET

91317-08020-00

$8.49

SILENCER, EXHAUST

5NL-14753-00-00

Unavailable

RIVET, MONEL (F14)

90267-48910-00

$8.49

. FIBER

5NL-1469A-00-00

Unavailable

. FIBER

5BE-1469E-00-00

Unavailable

GASKET, SILENCER

3VD-14755-00-00

$37.99

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

BAND, SILENCER

5NL-14788-00-00

$23.99

DAMPER, MUFFLER

5BE-14747-00-00

$10.99

COLLAR

90387-08081-00

Unavailable

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
