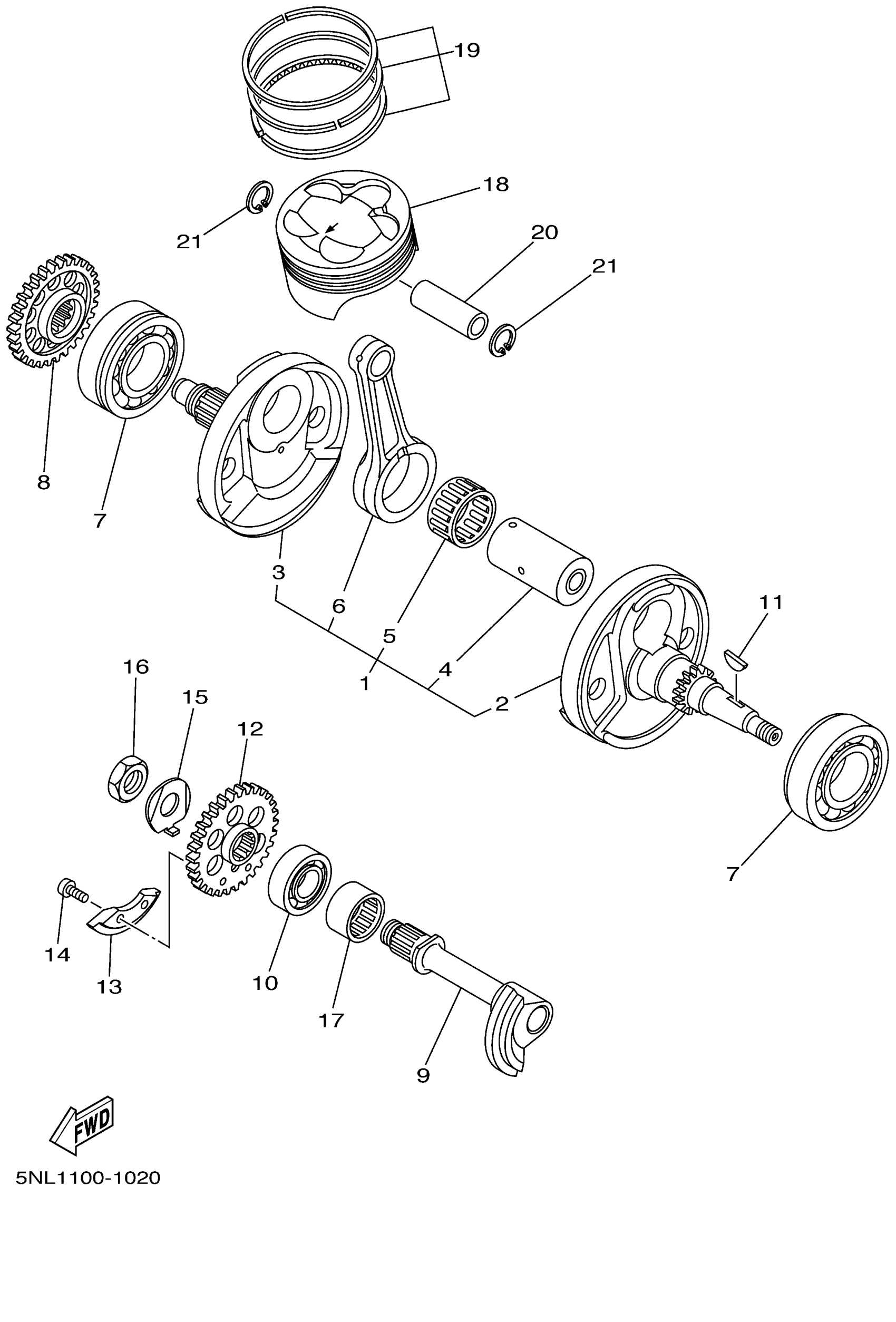

Yamaha YZ250FN (YZ250F) 5NL1 2001 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5NL-11400-11-00

Unavailable

2

CRANK 1

5NL-11412-01-00

Unavailable

3

CRANK 2

5NL-11422-01-00

Unavailable

4

PIN, CRANK 1

5NL-11681-00-00

Unavailable

5

BEARING

93310-63097-00

$103.99

6

ROD, CONNECTING

5NL-11651-10-00

Unavailable

7

BEARING

93306-20648-00

$91.99

8

GEAR, DRIVE

5NL-11536-10-00

Unavailable

9

SHAFT 1

5NL-11455-00-00

Unavailable

10

BEARING(37F)

93306-20335-00

$35.99

11

KEY, WOODRUFF

90280-03001-00

$8.49

12

GEAR, BALANCE WT

5NL-11531-00-00

Unavailable

13

WEIGHT 1

5NL-11454-00-00

Unavailable

14

SCREW(2VK)

90149-06250-00

$8.49

15

WASHER, LOCK (2K6)

90215-14204-00

$9.49

16

NUT, HEXAGON

90170-14171-00

Unavailable

17

BEARING, CYLINDRICAL(1NT)

93311-32261-00

Unavailable

18

PISTON (STD)

5NL-11631-10-00

Unavailable

19

PISTON RING SET (STD)

5NL-11603-00-00

Unavailable

20

PIN, PISTON

5NL-11633-00-00

Unavailable

21

CIRCLIP

93420-16086-00

Unavailable
