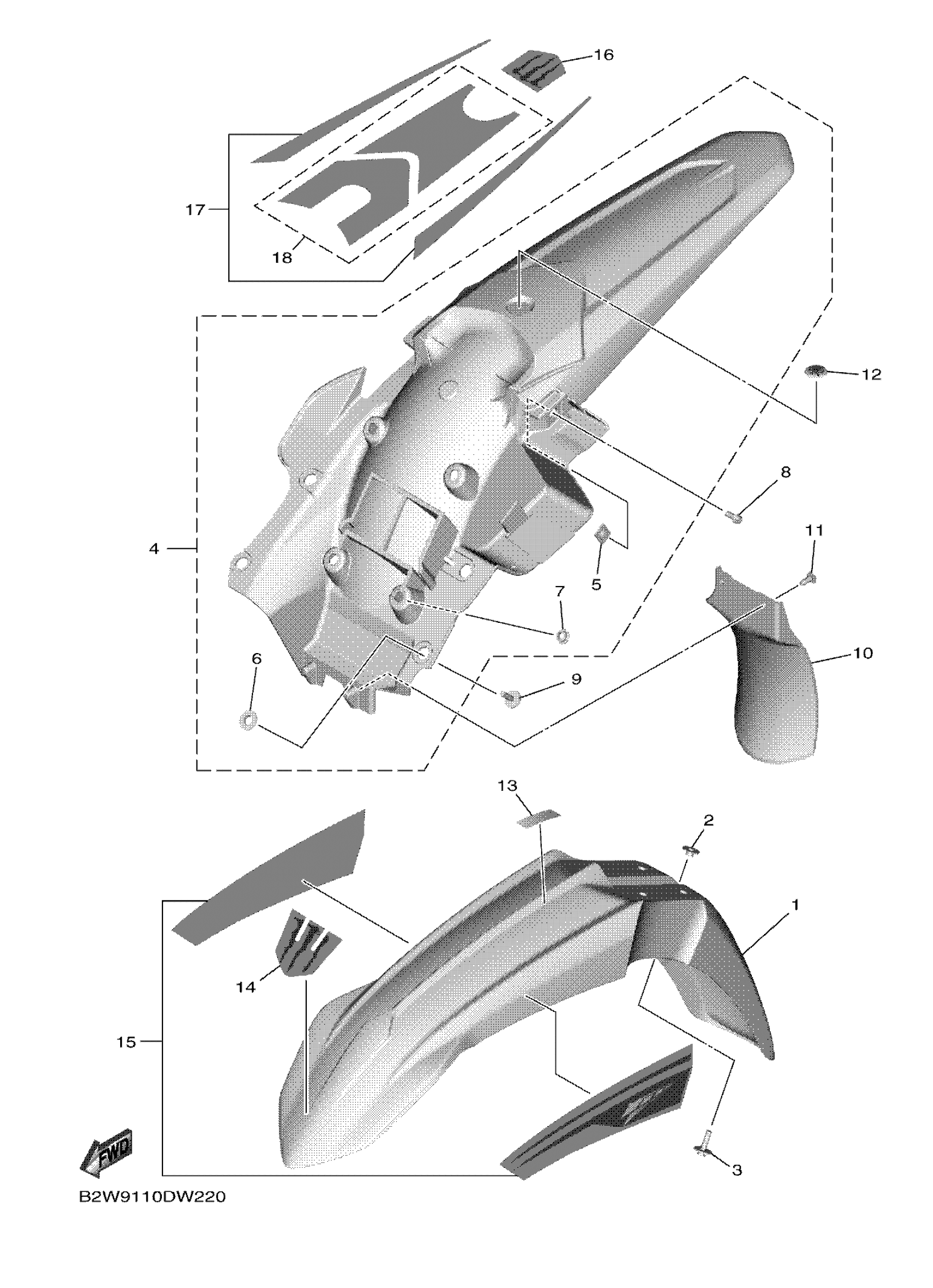

Yamaha YZ250FMME (YZ250 F MONSTER) B7BF 2021 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR9-21511-30-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, WITH WASHER

90119-06268-00

$2.28

4

REAR FENDER COMP.

BR9-21610-30-00

$39.99

5

NUT, REAR FENDER

5XE-21635-10-00

$13.49

6

COLLAR

5BE-21749-00-00

$6.99

7

COLLAR

90387-08086-00

$7.49

8

BOLT, FLANGE

90105-06100-00

$7.49

9

BOLT, WITH WASHER

90119-06268-00

$2.28

10

GUARD, FLAP

3D7-21642-00-00

$28.99

11

SCREW, TAPPING

97702-60016-00

$2.19

12

TUNING FORK MARK

5FK-2175C-31-00

$5.49

13

LABEL, CAUTION

3FB-2415E-02-00

$4.84

14

EMBLEM

B2W-21578-00-00

$28.99

15

GRAPHIC SET 1

B2W-2159A-00-00

$47.99

16

EMBLEM 1

B2W-2163G-00-00

Unavailable

17

GRAPHIC SET

B2W-2167A-00-00

Unavailable

18

GRAPHIC SET 2

B2W-2167B-00-00

Unavailable
