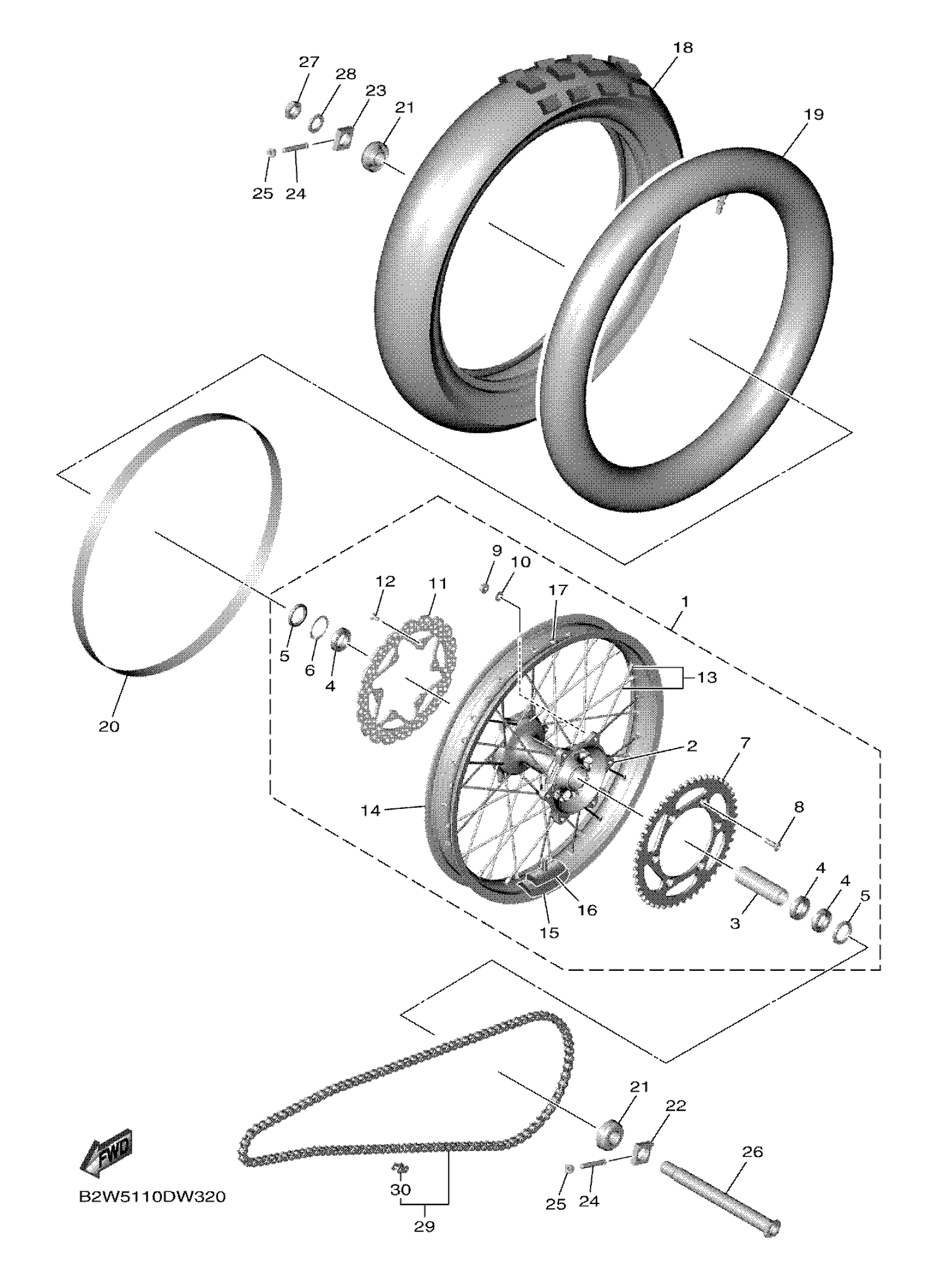

Yamaha YZ250FML (YZ250F) B7BA 2021 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL SUB-ASSY

B7B-25302-30-00

$707.99

2

HUB, REAR

17D-25311-00-00

$300.99

3

SPACER, BEARING

17D-25317-00-00

$44.99

4

BEARING

93306-90510-00

$45.99

5

OIL SEAL (697)

93102-32M07-00

$18.99

6

CIRCLIP

99009-42700-00

$7.49

7

SPROCKET, DRIVEN (47T)

17D-25447-50-00

$64.99

7

SPROCKET, DRIVEN (48T)

17D-25448-50-00

$64.99

7

SPROCKET, DRIVEN (49T)

17D-25449-50-00

$64.99

7

SPROCKET, DRIVEN (50T)

17D-25450-50-00

$74.99

7

SPROCKET, DRIVEN (51T)

17D-25451-50-00

$74.99

7

SPROCKET, DRIVEN (52T)

17D-25452-50-00

$74.99

8

BOLT(3RB)

90109-081G1-00

Unavailable

9

NUT, SELF-LOCKING

90185-08008-00

$7.49

10

WASHER, PLATE

90201-08043-00

$7.49

11

DISK, REAR BRAKE 2

B2W-2582W-00-00

Unavailable

12

SCREW, COUNTERSUNK

90151-06079-00

Unavailable

13

SPOKE SET, REAR

34P-25304-00-00

Unavailable

14

RIM (1.85-19)

94418-19051-00

Unavailable

15

SPACER, BEAD

4XM-25394-00-00

Unavailable

16

DAMPER

4XM-25364-00-00

Unavailable

17

GROMMET (397)

90480-10068-00

Unavailable

18

TIRE (100/90-19 57M X20R)

94110-19041-00

Unavailable

19

TUBE

94208-19003-00

Unavailable

20

BAND, RIM

94327-19111-00

Unavailable

21

COLLAR ASSY

BR9-2530S-01-00

Unavailable

22

PULLER, CHAIN 1

1SL-25388-00-00

Unavailable

23

PULLER, CHAIN 2

1SL-25389-00-00

Unavailable

24

BOLT

90101-08006-00

Unavailable

25

NUT

90179-08019-00

Unavailable

26

AXLE, WHEEL

17D-25381-00-00

Unavailable

27

NUT, SELF-LOCKING

90185-22011-00

Unavailable

28

WASHER, PLATE

90201-22023-00

Unavailable

29

CHAIN(DID 520DMA4

9Y582-36113-00

Unavailable

30

JOINT, CHAIN

94682-28001-00

Unavailable
