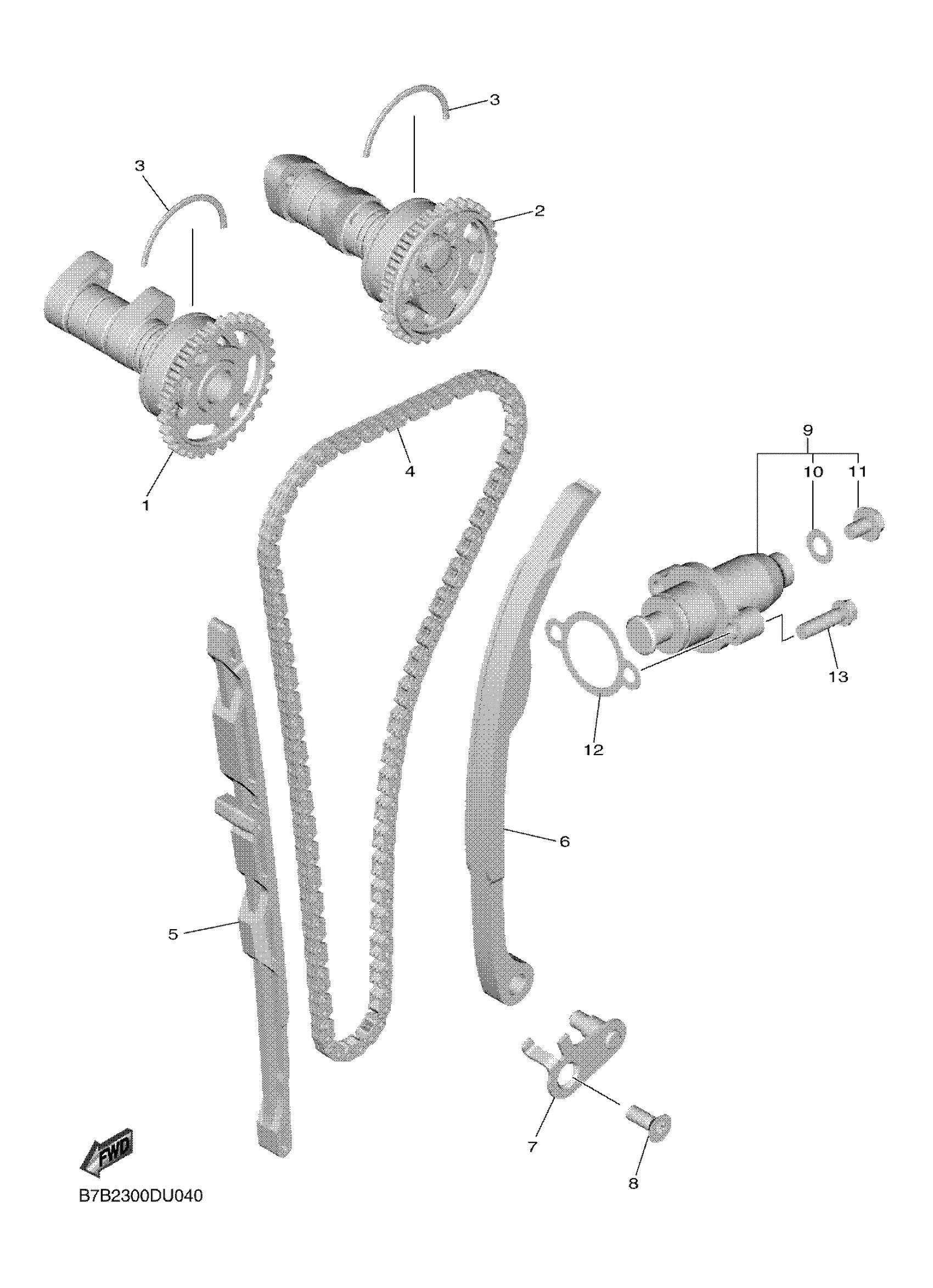

Yamaha YZ250FML (YZ250F) B7BA 2021 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

B7B-12170-10-00

$233.90

2

CAMSHAFT ASSY 2

B7B-12180-10-00

$239.09

3

CIRCLIP

93440-41178-00

$4.30

4

CHAIN

94591-77114-00

$28.11

5

DAMPER, CHAIN 1

1SM-12251-00-00

$23.26

6

DAMPER, CHAIN 2

B7B-12252-00-00

$143.50

7

PLATE, GUIDE STOPPER 1

1SL-12233-00-00

$26.16

8

SCREW, COUNTERSUNK

90151-06023-00

$6.09

9

TENSIONER ASSY, CAM CHAIN

B7B-12210-11-00

$118.55

10

GASKET

5SL-12214-00-00

$5.96

11

BOLT

5EL-12228-00-00

$2.52

12

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.24

13

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.46
