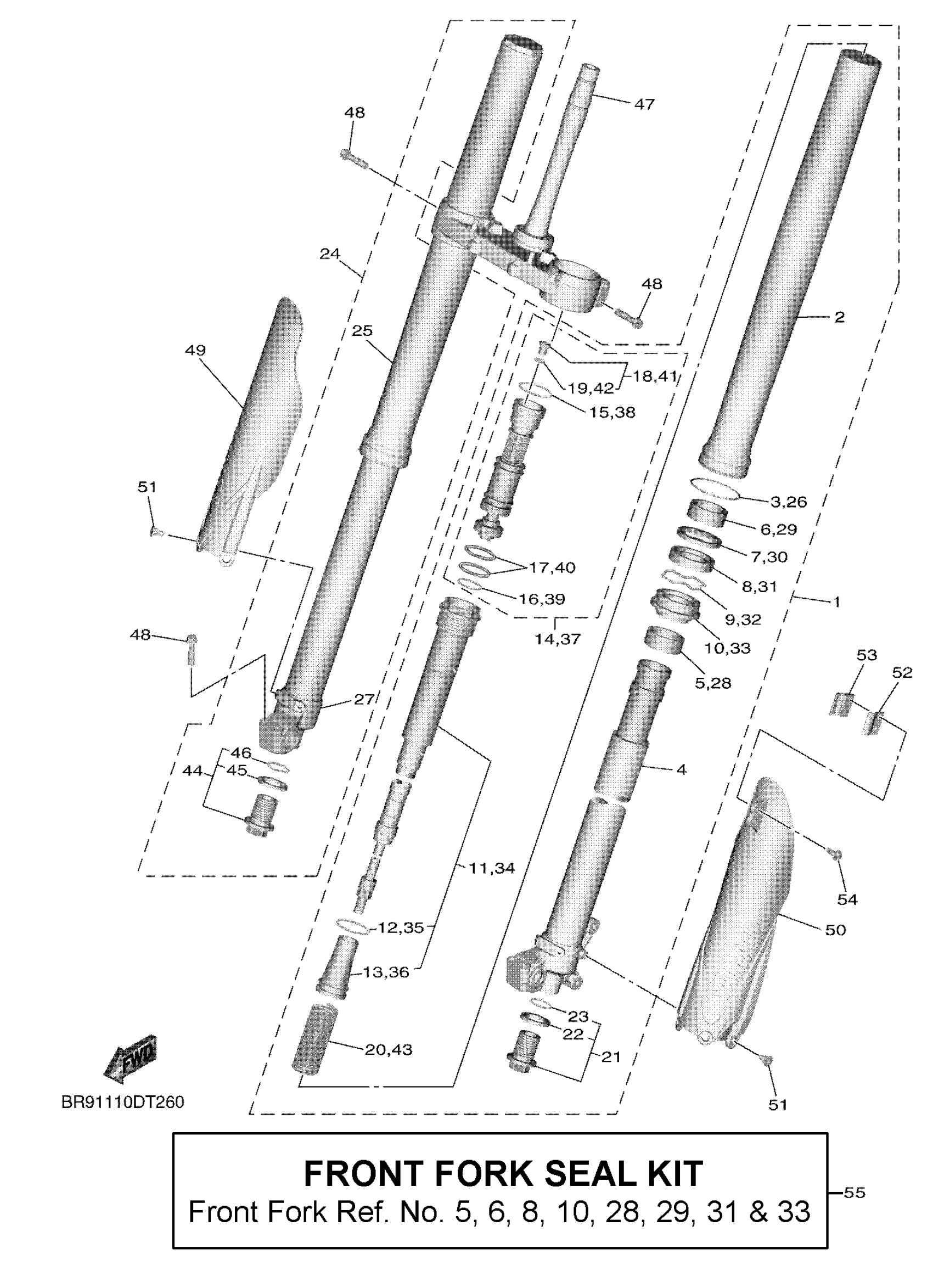

Yamaha YZ250FLL (YZ250F) B7B5 2020 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

B7B-23102-00-00

$922.99

2

TUBE, OUTER

1SL-23136-00-00

Unavailable

3

RING, SNAP

17D-23153-00-00

$4.63

4

INNER TUBE COMP.2

BR9-23120-01-00

$417.99

5

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

6

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

7

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

8

OIL SEAL

B29-23145-00-00

$22.99

9

RING, SNAP

5XE-23153-L0-00

$7.99

10

SEAL, DUST

5XE-23144-L0-00

$22.99

11

CYLINDER COMP., FRONT FORK

B7B-23170-00-00

$463.99

12

O-RING

1C3-23147-L1-00

$3.48

13

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

14

VALVE COMP.

B7B-2316A-00-00

Unavailable

15

O-RING

1C3-23188-L1-00

$2.50

16

O-RING

1C3-23188-P0-00

Unavailable

17

O-RING

1W4-23114-L0-00

Unavailable

18

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

19

O-RING

1C3-23188-R1-00

Unavailable

20

SPRING, FRONT FORK (K=4.7)

BR9-23141-90-00

Unavailable

21

BOLT, CAP

5XC-23111-01-00

Unavailable

22

GASKET

2HH-23158-L0-00

Unavailable

23

GASKET

276-23114-01-00

Unavailable

24

FRONT FORK ASSY (R.H)

B7B-23103-00-00

Unavailable

25

TUBE, OUTER

1SL-23136-00-00

Unavailable

26

RING, SNAP

17D-23153-00-00

$4.63

27

INNER TUBE COMP.1

BR9-23110-01-00

Unavailable

28

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

29

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

30

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

31

OIL SEAL

B29-23145-00-00

$22.99

32

RING, SNAP

5XE-23153-L0-00

$7.99

33

SEAL, DUST

5XE-23144-L0-00

$22.99

34

CYLINDER COMP., FRONT FORK

B7B-23170-00-00

$463.99

35

O-RING

1C3-23147-L1-00

$3.48

36

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

37

VALVE COMP.

B7B-2316A-00-00

Unavailable

38

O-RING

1C3-23188-L1-00

$2.50

39

O-RING

1C3-23188-P0-00

Unavailable

40

O-RING

1W4-23114-L0-00

Unavailable

41

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

42

O-RING

1C3-23188-R1-00

Unavailable

43

SPRING, FRONT FORK (K=4.7)

BR9-23141-90-00

Unavailable

44

BOLT, CAP

5XC-23111-01-00

Unavailable

45

GASKET

2HH-23158-L0-00

Unavailable

46

GASKET

276-23114-01-00

Unavailable

47

UNDER BRACKET COMP.

33D-23340-20-00

Unavailable

48

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

49

PROTECTOR 2

17D-2315J-50-00

Unavailable

50

PROTECTOR 1

17D-2315H-50-00

Unavailable

51

BOLT

90109-06232-00

Unavailable

52

CLAMP

17D-23466-00-00

Unavailable

53

CLAMP

17D-23467-00-00

Unavailable

54

BOLT, FLANGE

90105-06170-00

Unavailable

55

FORK SEAL KIT (TWO FORKS)

B29-W003B-00-00

Unavailable
