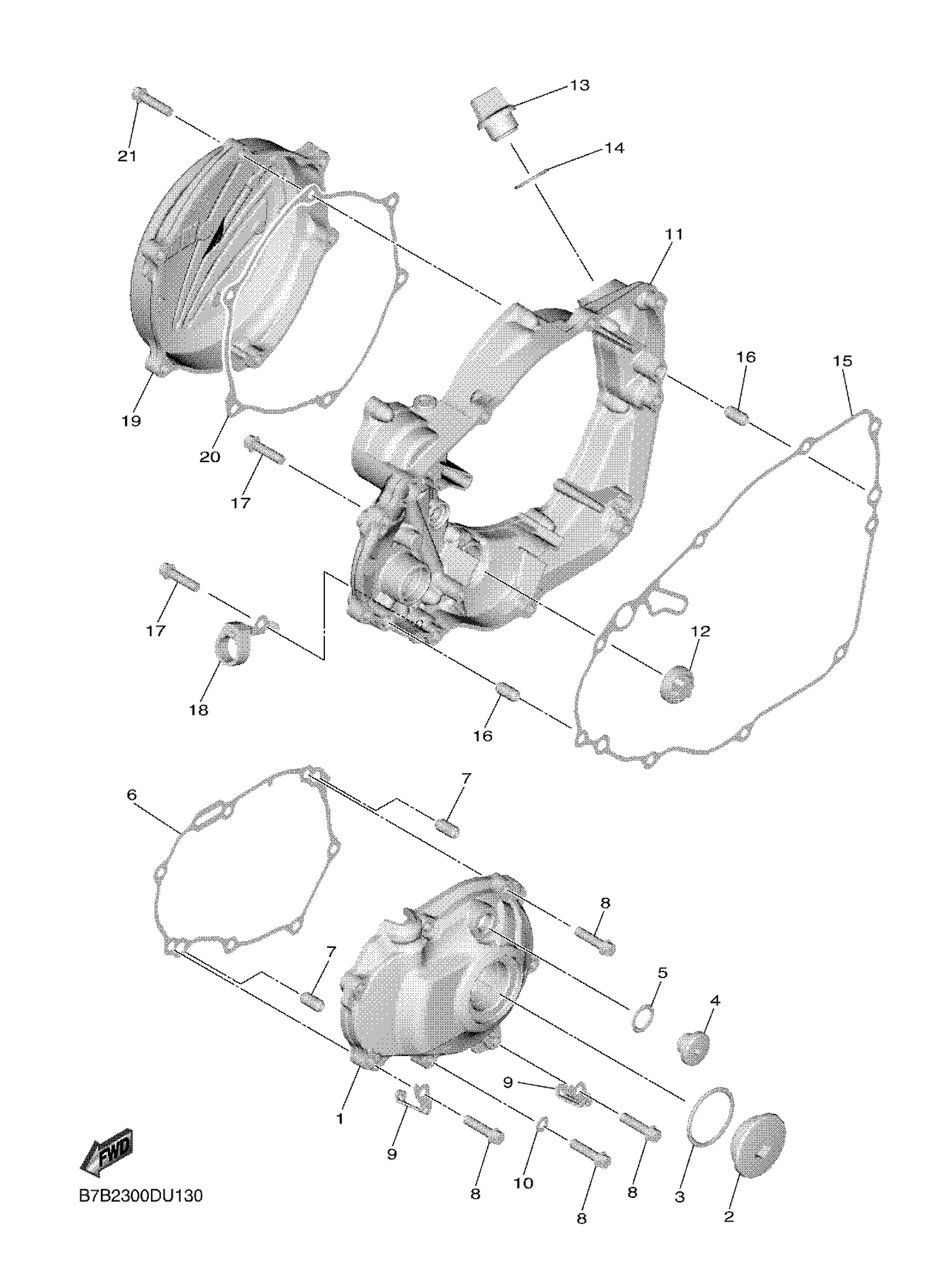

Yamaha YZ250FLL (YZ250F) B7B5 2020 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B7B-15411-00-00

$112.99

2

PLUG, STRAIGHT SCREW

90340-36002-00

$15.99

3

O-RING

93210-35804-00

$0.48

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

B7B-15451-00-00

$18.99

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

9

CLAMP

90465-08062-00

$4.29

10

GASKET 256113960000

90430-06014-00

Unavailable

11

COVER, CRANKCASE 3

B7B-15431-00-00

$136.99

12

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

13

PLUG, OIL

3Y1-15363-10-00

$18.49

14

O-RING (646)

93210-19123-00

Unavailable

15

GASKET, CRANKCASE COVER 3

B7B-15462-00-00

$17.99

16

PIN, DOWEL(3XW)

91808-16023-00

$8.49

17

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

18

HOLDER

17D-15378-00-00

Unavailable

19

COVER, 1

B7B-15415-00-00

Unavailable

20

GASKET

B7B-15453-00-00

Unavailable

21

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48
