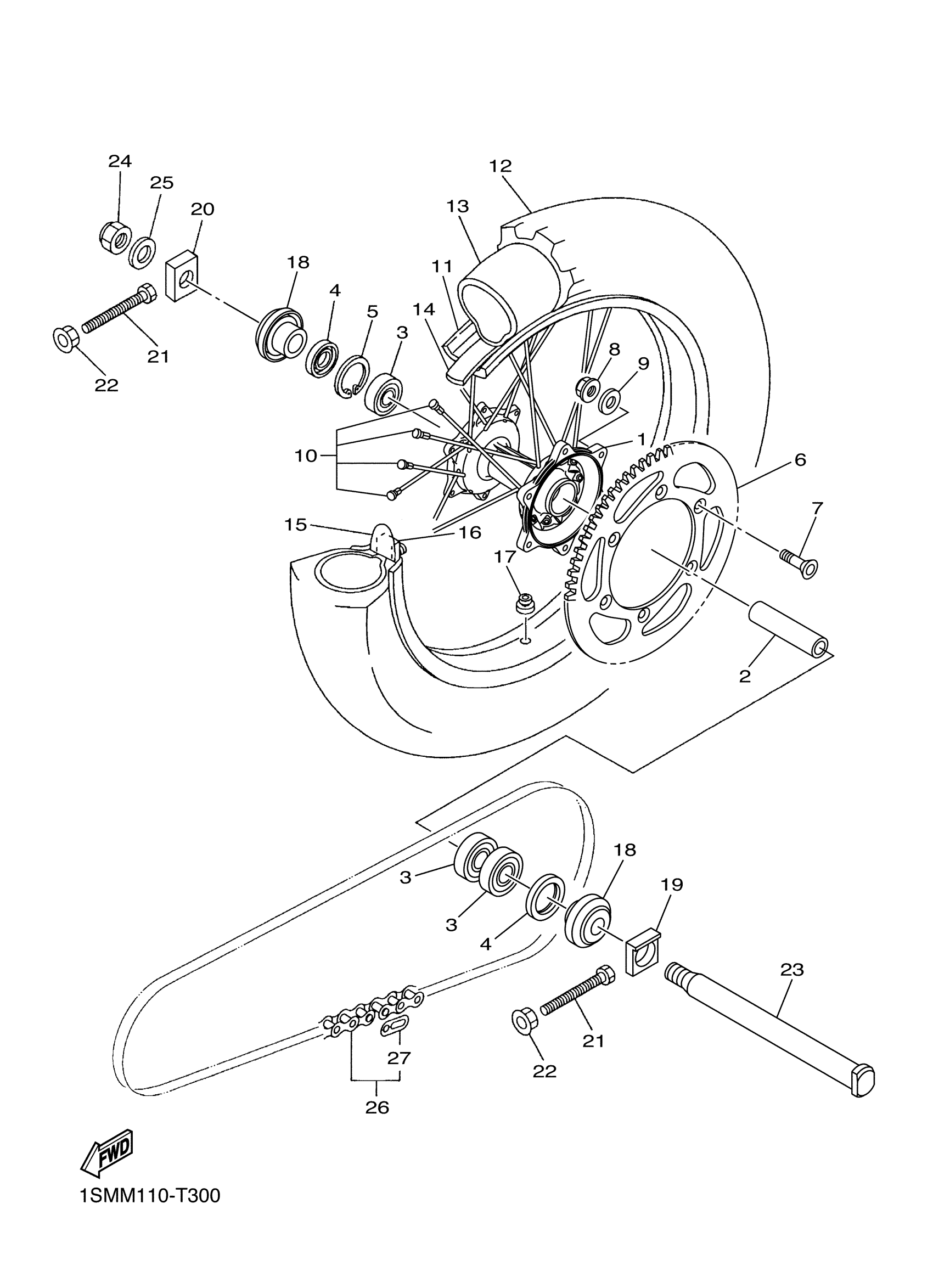

Yamaha YZ250FJW (YZ250F) 1SMM0 2018 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

17D-25311-00-00

$300.99

2

SPACER, BEARING

17D-25317-00-00

$44.99

3

BEARING

93306-90510-00

$45.99

4

OIL SEAL (697)

93102-32M07-00

$18.99

5

CIRCLIP

99009-42700-00

$7.49

6

SPROCKET, DRIVEN (47T)

17D-25447-50-00

$64.99

6

SPROCKET, DRIVEN (48T)

17D-25448-50-00

$64.99

6

SPROCKET, DRIVEN (49T)

17D-25449-50-00

$64.99

6

SPROCKET, DRIVEN (50T)

17D-25450-50-00

$74.99

6

SPROCKET, DRIVEN (51T)

17D-25451-50-00

$74.99

6

SPROCKET, DRIVEN (52T)

17D-25452-50-00

$74.99

7

BOLT(3RB)

90109-081G1-00

Unavailable

8

NUT, SELF-LOCKING

90185-08008-00

$7.49

9

WASHER, PLATE

90201-08043-00

$7.49

10

SPOKE SET, REAR

34P-25304-00-00

$183.99

11

RIM (1.85-19)

94418-19040-00

Unavailable

12

TIRE (100/90-19 57M M404)

94110-19019-00

Unavailable

13

TUBE(42X)

94210-19222-00

Unavailable

14

BAND, RIM

94327-19111-00

Unavailable

15

SPACER, BEAD

4XM-25394-00-00

Unavailable

16

DAMPER

4XM-25364-00-00

Unavailable

17

GROMMET (397)

90480-10068-00

Unavailable

18

COLLAR ASSY

17D-2530S-01-00

Unavailable

19

PULLER, CHAIN 1

1SL-25388-00-00

Unavailable

20

PULLER, CHAIN 2

1SL-25389-00-00

Unavailable

21

BOLT

90101-08006-00

Unavailable

22

NUT

90179-08019-00

Unavailable

23

AXLE, WHEEL

17D-25381-00-00

Unavailable

24

NUT, SELF-LOCKING

90185-22011-00

Unavailable

25

WASHER, PLATE

90201-22023-00

Unavailable

26

CHAIN(DID 520DMA4

9Y582-36113-00

Unavailable

27

JOINT, CHAIN

94682-28001-00

Unavailable
