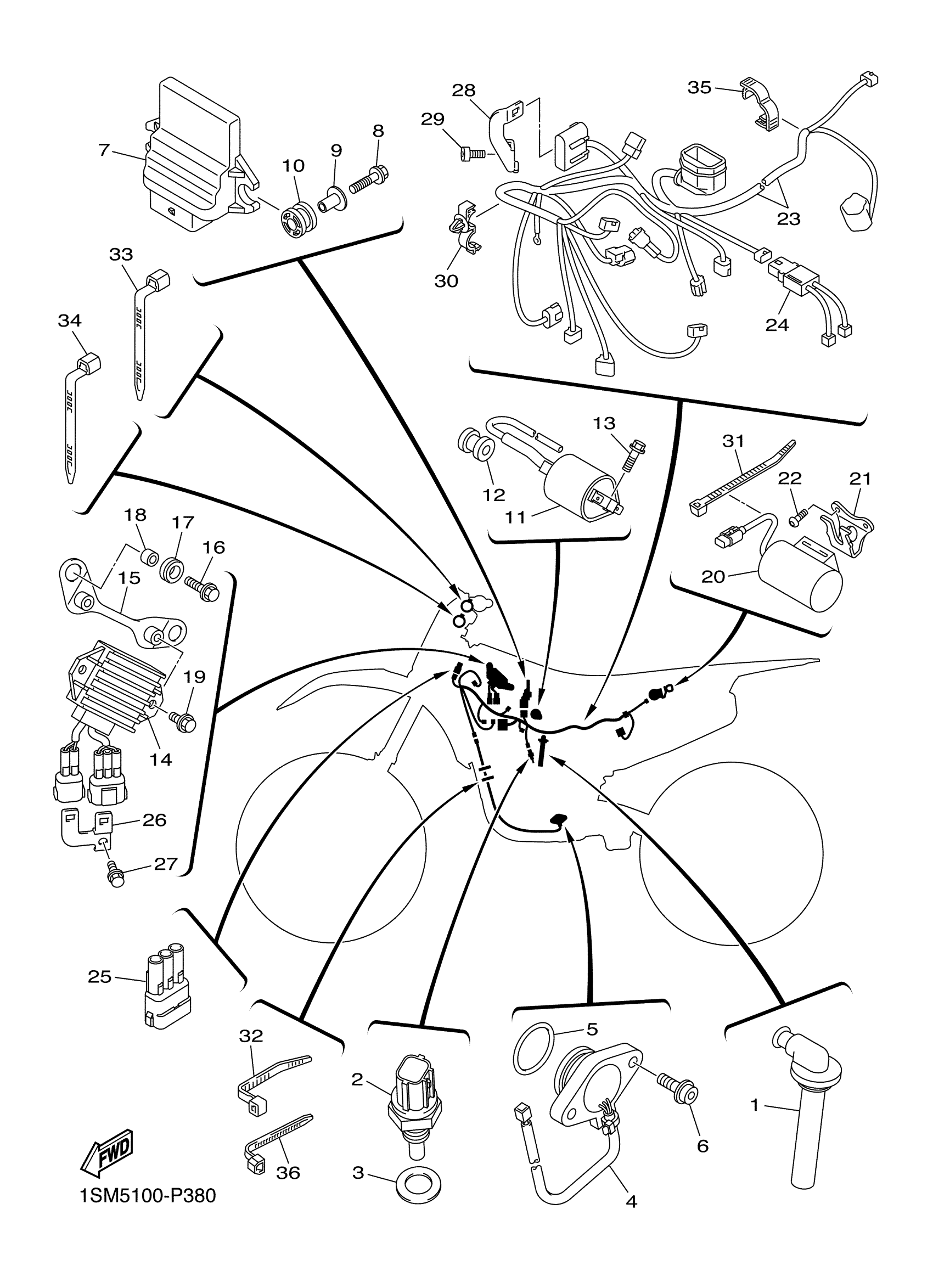

Yamaha YZ250FJW (YZ250F) 1SMM0 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

1SM-82370-01-00

$90.18

2

THERMO UNIT

52B-H3591-00-00

Unavailable

3

GASKET

90430-10004-00

$5.55

4

NEUTRAL SWITCH ASSY

B11-82540-01-00

Unavailable

5

O-RING

93210-21001-00

$4.46

6

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$5.86

7

ENGINE CONTROL UNIT ASSY

1SM-8591A-91-00

Unavailable

8

BOLT, FLANGE

90105-05005-00

$0.79

9

COLLAR

90387-05048-00

$5.03

10

GROMMET

90480-13029-00

$4.47

11

IGNITION COIL ASSY

BR9-82310-01-00

$48.53

12

GROMMET

90480-11015-00

$3.32

13

BOLT, FLANGE

95022-06016-00

$3.11

14

RECTIFIER & REGULATOR ASSY

1SL-81960-00-00

$142.58

15

BRACKET, REGULATOR

1SL-21287-00-00

Unavailable

16

BOLT, FLANGE

90105-06203-00

Unavailable

17

GROMMET

90480-13025-00

Unavailable

18

COLLAR (8H6)

90387-07573-00

Unavailable

19

BOLT, FLANGE

90105-06064-00

Unavailable

20

CONDENSER, SMOOTHING

1SL-81965-00-00

Unavailable

21

BRKT. CONDENSER

1SL-21273-00-00

Unavailable

22

BOLT, BUTTON

92017-05012-00

Unavailable

23

WIRE HARNESS ASSY

1SM-82590-10-00

Unavailable

24

WIRE, SUB LEAD

1SL-82309-00-00

Unavailable

25

CONNECTOR

33D-82378-00-00

Unavailable

26

PLATE

1SL-82388-00-00

Unavailable

27

BOLT, FLANGE

90105-06110-00

Unavailable

28

PLATE 2

1SL-82389-00-00

Unavailable

29

BOLT

91380-06012-00

$1.74

30

CLAMP

90464-17003-00

Unavailable

31

BAND

1UA-82591-00-00

Unavailable

32

CLAMP

90465-10098-00

$1.68

33

CLAMP

90464-13077-00

Unavailable

34

CLAMP(4FM)

90464-15195-00

Unavailable

35

CLAMP

90464-18004-00

$4.14

36

CLAMP(4FM)

90464-15195-00

Unavailable
