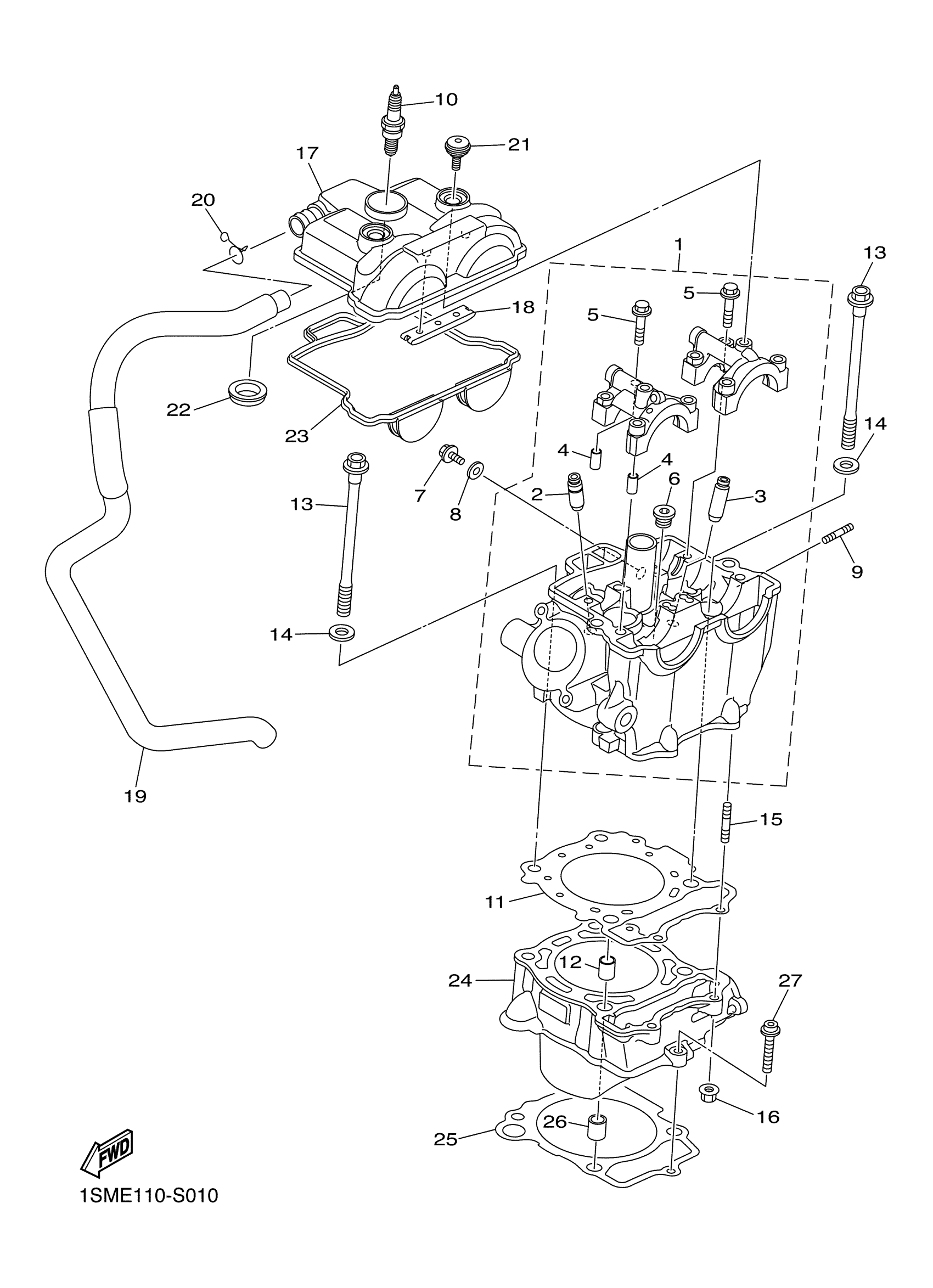

Yamaha YZ250FJW (YZ250F) 1SMM0 2018 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1SM-11101-19-00

$538.70

2

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$44.45

3

GUIDE, VALVE 1

3D7-11133-10-00

$51.86

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

BOLT, WASHER BASED

90105-06027-00

$5.80

6

PLUG, STRAIGHT SCREW

90340-12007-00

$5.81

7

BOLT, FLANGE

95022-06010-00

$5.08

8

GASKET 256113960000

90430-06014-00

Unavailable

9

BOLT, STUD

95612-08620-00

$5.81

10

PLUG, SPARK (NGK LMAR8G)

LMA-R8G00-00-00

$11.53

11

GASKET, CYLINDER HEAD 1

1SM-11181-00-00

$34.08

12

PIN, DOWEL(4XL)

93612-16254-00

$4.07

13

BOLT, FLANGE

90105-09004-00

$11.48

14

WASHER, PLATE(1AA)

90201-096J9-00

$2.61

15

BOLT, STUD

90116-06037-00

$3.15

16

NUT, FLANGE

95702-06500-00

Unavailable

17

COVER, CYLINDER HEAD 1

1SM-11190-19-00

Unavailable

18

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

19

PIPE, BREATHER 1

1SM-11166-00-00

Unavailable

20

CLIP

90467-140A4-00

Unavailable

21

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

22

GASKET, HEAD COVER 2

1SM-11194-00-00

Unavailable

23

GASKET, HEAD COVER 1

1SM-11193-00-00

Unavailable

24

CYLINDER 1

1SM-11311-00-00

Unavailable

25

GASKET, CYLINDER

1SM-11351-00-00

Unavailable

26

PIN, DOWEL(4XL)

93612-16254-00

$4.07

27

BOLT, HEXAGON SOCKET HEAD

90110-06380-00

Unavailable
