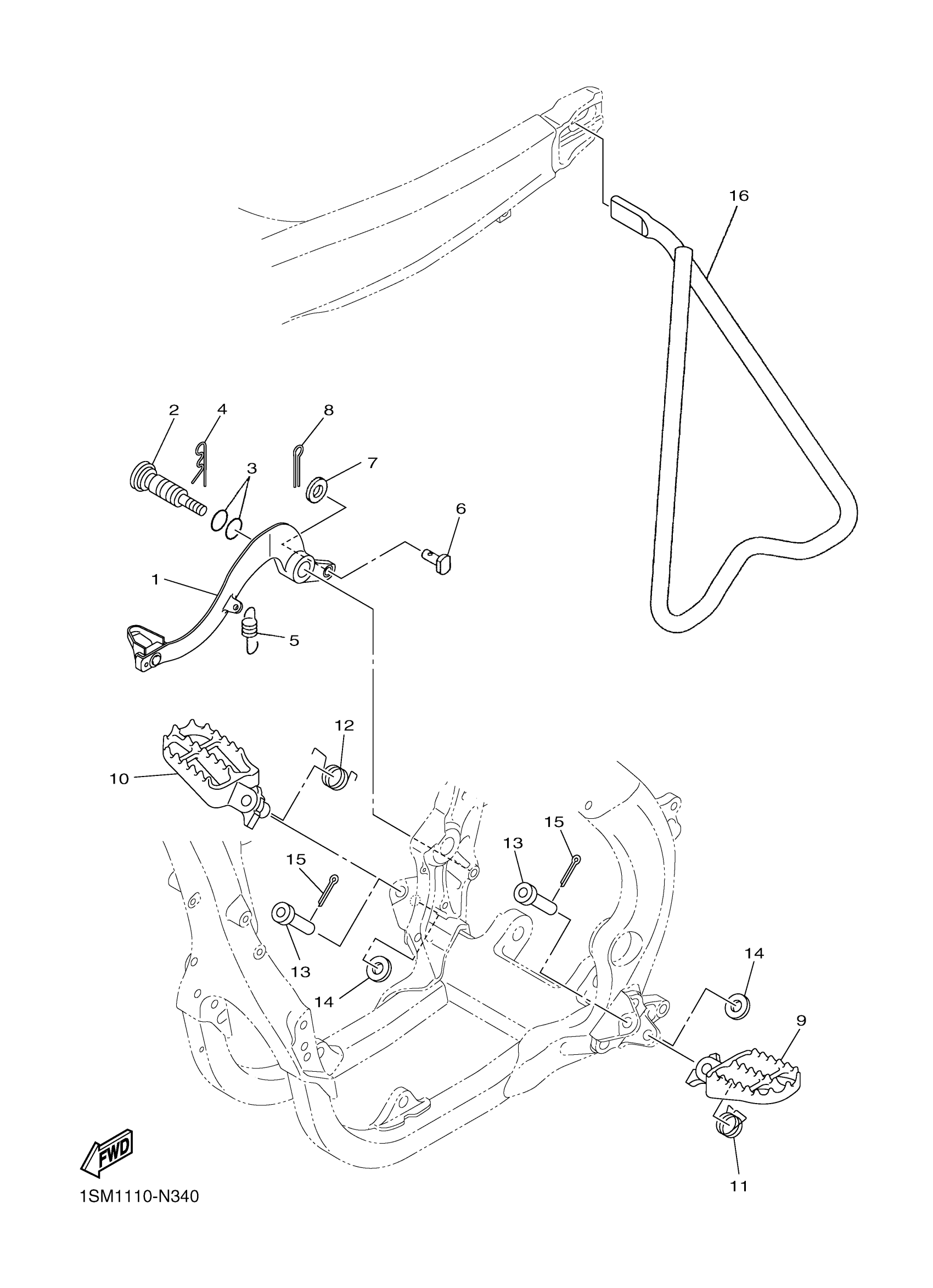

Yamaha YZ250FHW (YZ250F) 1SME0 2017 STAND FOOTREST Diagram

Description

Price

PEDAL, BRAKE

17D-27200-51-00

$95.99

BOLT

17D-27217-00-00

$29.99

O-RING (P95)

93210-11073-00

$7.49

CLIP

90468-16001-00

$5.60

SPRING, TENSION

90506-20031-00

$5.49

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

WASHER, PLATE

90201-08044-00

$8.49

PIN, COTTER (648)

91490-20015-00

$2.20

FOOTREST 1

5XC-27411-M2-00

$121.99

FOOTREST 2

5XC-27421-M2-00

Unavailable

SPRING, TORSION

90508-28015-00

$9.49

SPRING, TORSION

90508-28018-00

$7.49

PIN, CLEVIS

90240-10004-00

$13.99

WASHER, PLATE

90201-10032-00

$1.17

PIN, COTTER

91490-25020-00

$3.19

STAND, SIDE

34P-27311-00-00

Unavailable
