Description

Price

1

FENDER, FRONT

17D-21511-50-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06108-00

$4.61

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

GRAPHIC 1

B11-21569-00-00

$25.99

7

REAR FENDER COMP.

1SL-21610-00-00

$39.99

8

NUT, REAR FENDER

5XE-21635-10-00

$13.49

9

COLLAR

5BE-21749-00-00

$6.99

10

BOLT, FLANGE

90105-06100-00

$7.49

11

BOLT, WITH WASHER

90119-06268-00

$2.28

12

GUARD, FLAP

17D-21642-00-00

$24.99

13

SCREW, TAPPING

97702-60016-00

$2.19

14

TUNING FORK MARK

5FK-2175C-31-00

$5.49

15

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

16

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

17

GRAPHIC SET,REAR FENDER

1SM-2165A-00-00

Unavailable

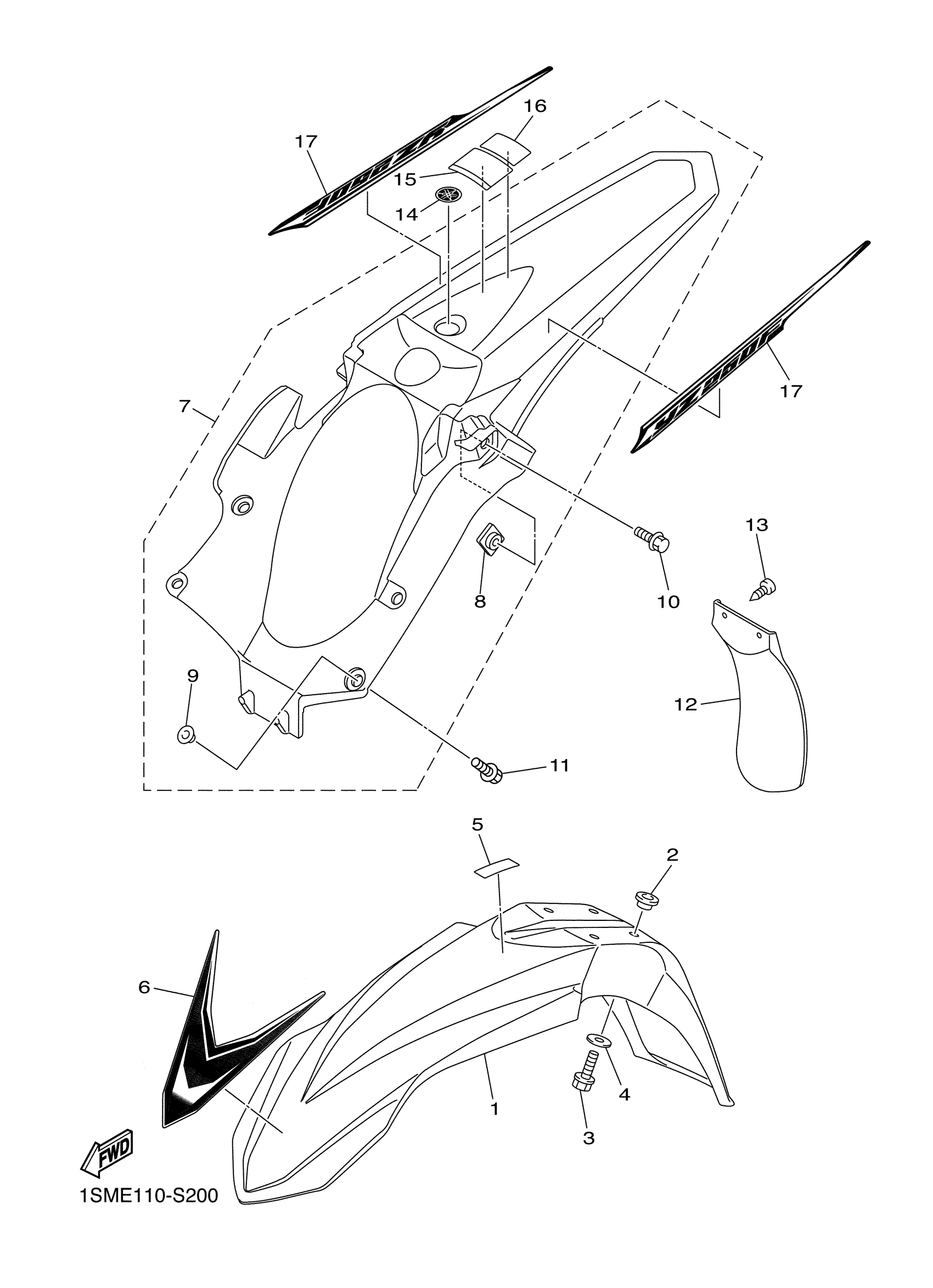

Yamaha YZ250FHW (YZ250F) 1SME0 2017 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, FLANGE

WASHER, PLATE

LABEL, CAUTION

GRAPHIC 1

REAR FENDER COMP.

NUT, REAR FENDER

COLLAR

BOLT, FLANGE

BOLT, WITH WASHER

GUARD, FLAP

SCREW, TAPPING

TUNING FORK MARK

LABEL, CAUTION

PLATE, COMPETITION USA

GRAPHIC SET,REAR FENDER
