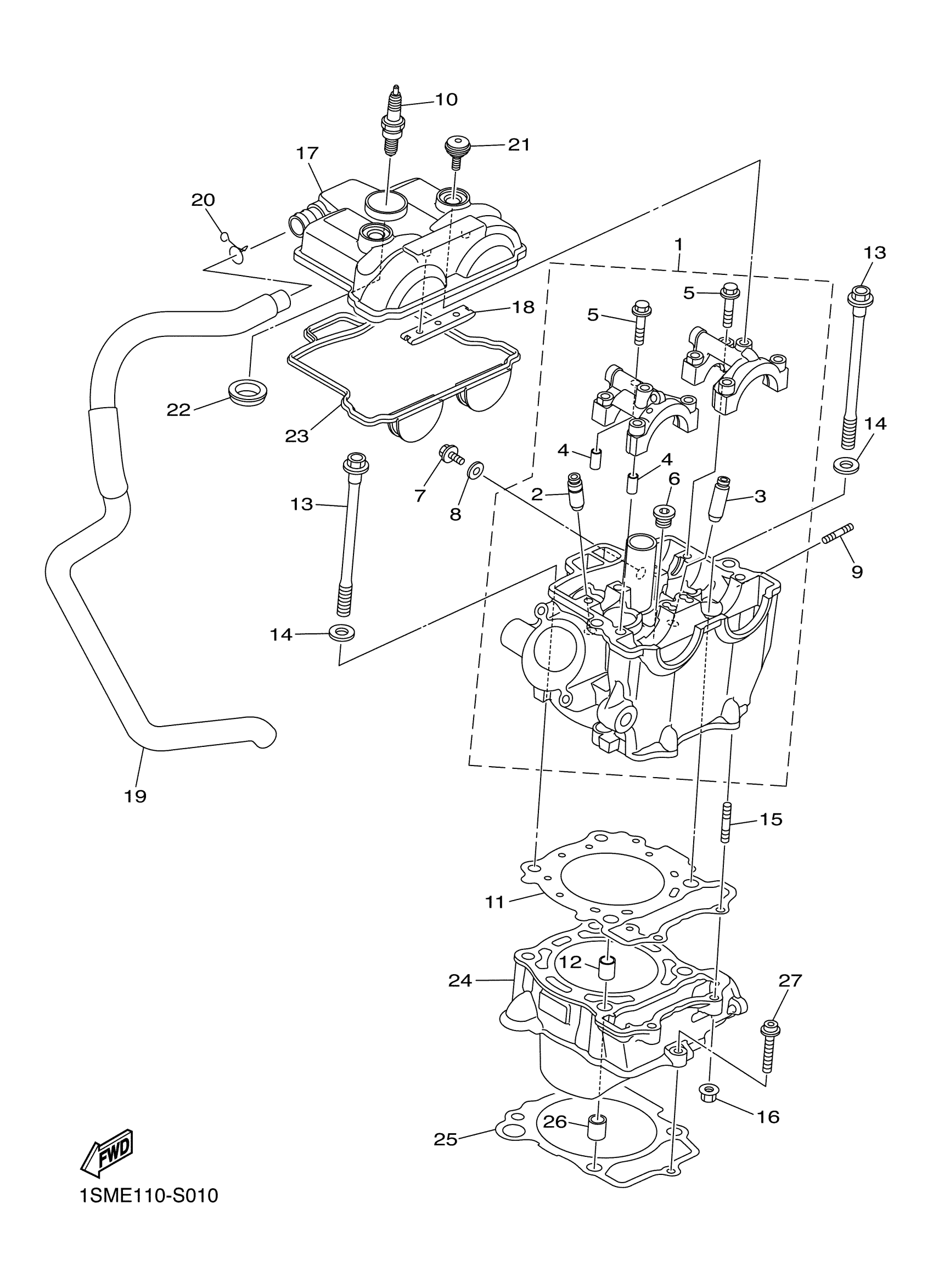

Yamaha YZ250FHW (YZ250F) 1SME0 2017 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1SM-11101-19-00

$672.99

2

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

3

GUIDE, VALVE 1

3D7-11133-10-00

$57.99

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

7

BOLT, FLANGE

95022-06010-00

$5.60

8

GASKET 256113960000

90430-06014-00

Unavailable

9

BOLT, STUD

95612-08620-00

$7.49

10

PLUG, SPARK (NGK LMAR8G)

LMA-R8G00-00-00

Unavailable

11

GASKET, CYLINDER HEAD 1

1SM-11181-00-00

$41.99

12

PIN, DOWEL(4XL)

93612-16254-00

$5.60

13

BOLT, FLANGE

90105-09004-00

$13.99

14

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

15

BOLT, STUD

90116-06037-00

$3.93

16

NUT, FLANGE

95702-06500-00

Unavailable

17

COVER, CYLINDER HEAD 1

1SM-11190-49-00

Unavailable

18

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

19

PIPE, BREATHER 1

1SM-11166-00-00

Unavailable

20

CLIP

90467-140A4-00

Unavailable

21

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

22

GASKET, HEAD COVER 2

1SM-11194-00-00

Unavailable

23

GASKET, HEAD COVER 1

1SM-11193-00-00

Unavailable

24

CYLINDER 1

1SM-11311-00-00

Unavailable

25

GASKET, CYLINDER

1SM-11351-00-00

Unavailable

26

PIN, DOWEL(4XL)

93612-16254-00

$5.60

27

BOLT, HEXAGON SOCKET HEAD

90110-06380-00

Unavailable
