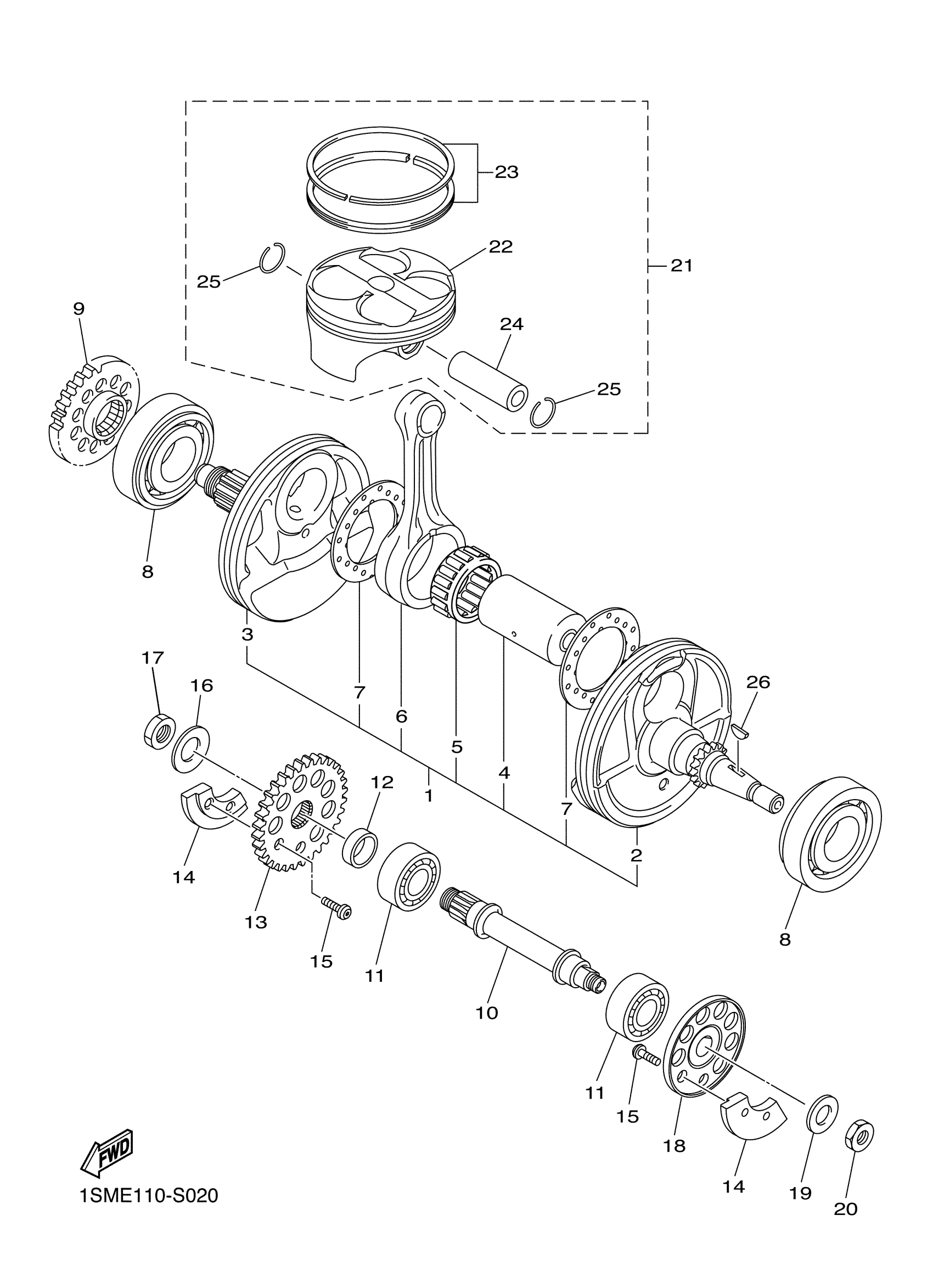

Yamaha YZ250FHW (YZ250F) 1SME0 2017 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1SM-11400-30-00

$671.99

2

CRANK 1

1SM-11412-20-00

Unavailable

3

CRANK 2

1SM-11422-20-00

$222.99

4

PIN, CRANK 1

1SM-11681-00-00

$66.99

5

BEARING

93310-63097-00

$103.99

6

ROD, CONNECTING

1SM-11651-20-00

$144.99

7

WASHER

90209-30008-00

$38.99

8

BEARING

93306-20648-00

$91.99

9

GEAR, DRIVE

1SM-11536-10-00

$108.99

10

SHAFT 1

1SM-11455-10-00

Unavailable

11

BEARING

93306-20351-00

$38.99

12

COLLAR

90387-175R2-00

Unavailable

13

GEAR, BALANCE WEIGHT

1SM-11531-00-00

$114.99

14

WEIGHT 1

1SM-11454-10-00

$47.99

15

SCREW

90149-06084-00

$8.49

16

WASHER, CONICAL SPRING

90208-14033-00

Unavailable

17

NUT, HEXAGON

90170-14171-00

Unavailable

18

WEIGHT 3

1SM-1145A-00-00

Unavailable

19

WASHER, CONICAL SPRING

90208-10001-00

Unavailable

20

NUT

90170-10012-00

Unavailable

21

PISTON ASSY

1SM-116A0-10-00

Unavailable

22

PISTON (STD)

1SM-11631-10-00

Unavailable

23

PISTON RING SET (STD)

1SM-11603-01-00

Unavailable

24

PIN, PISTON

1SM-11633-30-00

Unavailable

25

CIRCLIP(1AR)

93450-17129-00

Unavailable

26

KEY, WOODRUFF

90280-03006-00

Unavailable
