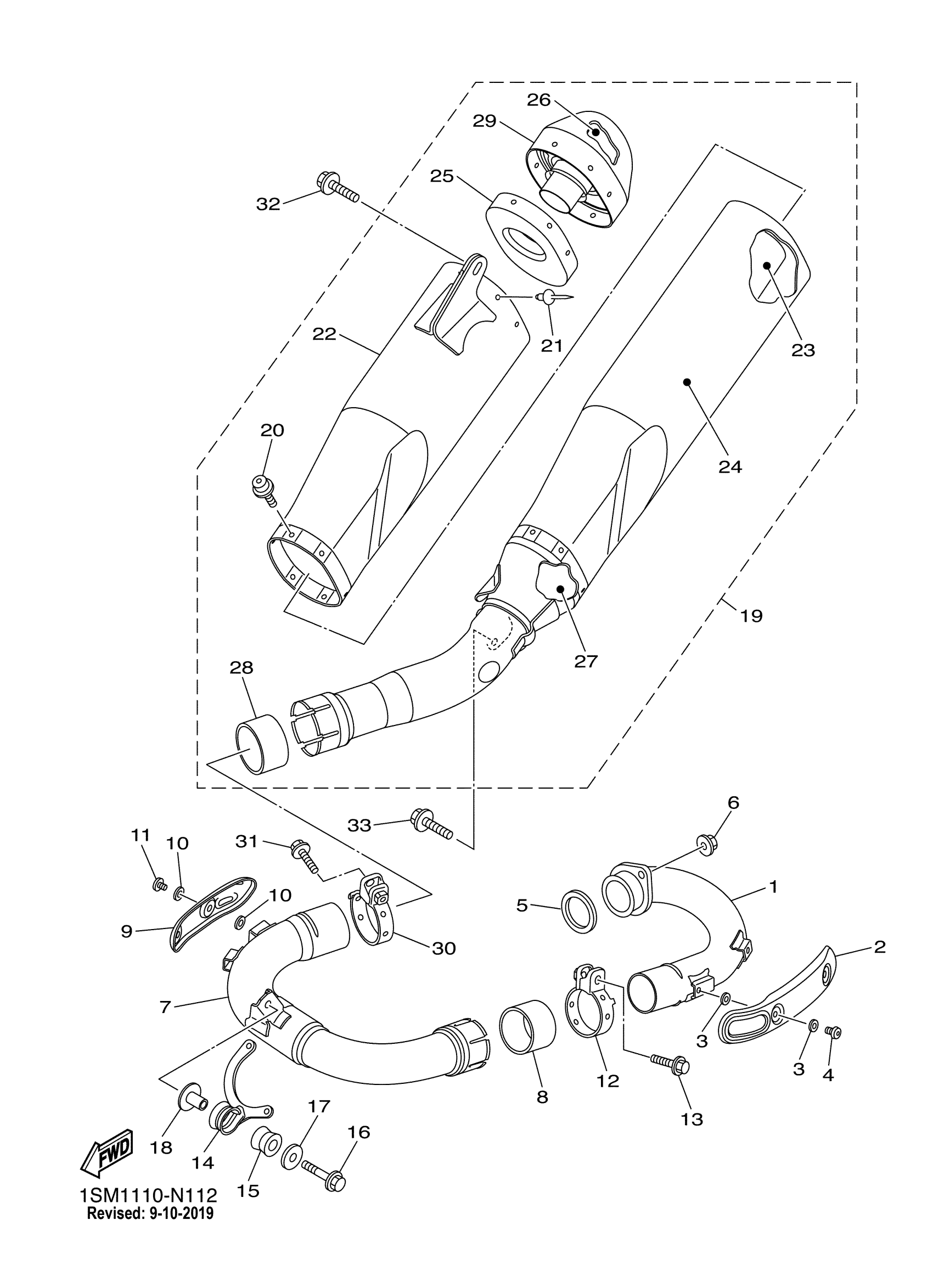

Yamaha YZ250FGY (YZ250F 60TH ANNIVERSARY) 1SMD 2016 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1SM-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1SL-14628-00-00

$39.99

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(2TV)

98980-06008-00

$3.19

5

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

6

NUT,FLANGE(J10)

95702-08500-00

$1.43

7

PIPE, EXHAUST 2

1SM-14621-00-00

Unavailable

8

GASKET, SILENCER

5PX-14755-00-00

$29.99

9

PROTECTOR, EXT. PIPE 2

1SL-1463B-00-00

$41.99

10

WASHER, PLATE

90201-05017-00

Unavailable

11

SCREW, BIND(2TV)

98980-06008-00

$3.19

12

BAND, SILENCER

1SM-14788-00-00

$20.99

13

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

14

STAY, EXHAUST PIPE 1

1SM-14639-00-00

$32.99

15

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

16

BOLT, FLANGE

90105-08137-00

Unavailable

17

WASHER, PLATE

90201-08061-00

Unavailable

18

COLLAR

90387-08081-00

Unavailable

19

SILENCER ASSY

1SM-14750-90-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

Unavailable

21

RIVET, MONEL (F14)

90267-48910-00

Unavailable

22

BODY, SILENCER

1SM-1466G-00-00

Unavailable

23

FIBER

1SM-1469A-00-00

Unavailable

24

FIBER 2

1SM-1477E-00-00

Unavailable

25

FIBER

1SL-1469F-00-00

Unavailable

26

FIBER 4

1SL-1477G-00-00

Unavailable

27

FIBER 5

1SL-1477H-00-00

Unavailable

28

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

29

CAP, SILENCER 2

1SM-14798-00-00

Unavailable

30

BAND, MUFFLER

1SL-14715-00-00

Unavailable

31

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

32

BOLT, WITH WASHER

90119-08170-00

Unavailable

33

BOLT, FLANGE

90105-08230-00

Unavailable
