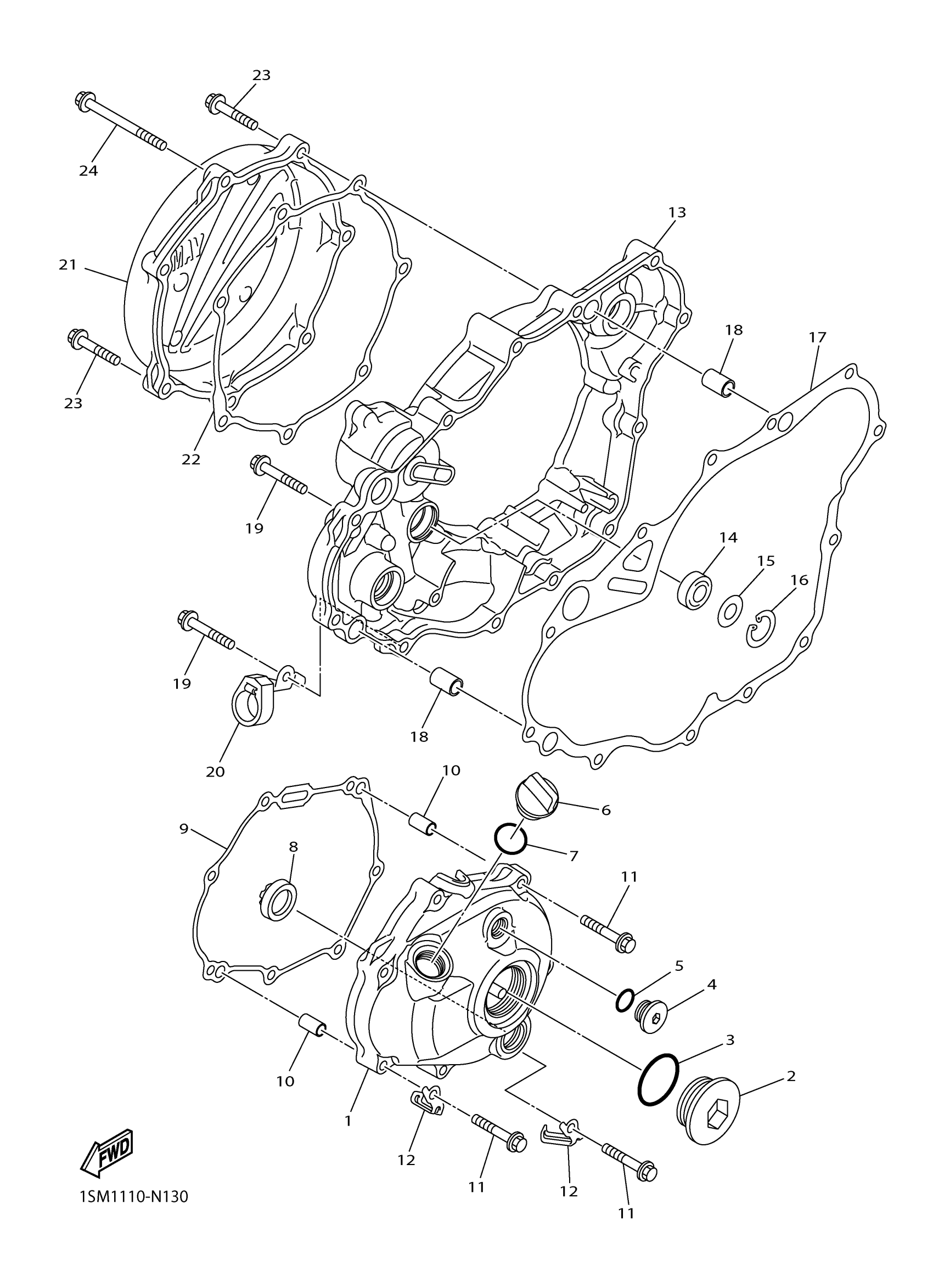

Yamaha YZ250FGY (YZ250F 60TH ANNIVERSARY) 1SMD 2016 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1SM-15411-00-00

$138.99

2

PLUG, STRAIGHT SCREW

90340-36002-00

$15.99

3

O-RING

93210-35804-00

$0.48

4

PLUG, STRAIGHT SCREW

90340-14011-00

$22.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

9

GASKET,CRCS COVER

1SM-15451-00-00

$23.99

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

BOLT, FLANGE

95022-06030-00

$3.72

12

CLAMP

90465-08062-00

$4.29

13

COVER, CRANKCASE 3

1SM-15431-00-00

Unavailable

14

OIL SEAL(4GY)

93101-14164-00

$11.49

15

WASHER (566)

90201-15701-00

$8.49

16

CIRCLIP

99009-22500-00

Unavailable

17

GASKET, CRANKCASE COVER 3

1SM-15462-00-00

Unavailable

18

PIN, DOWEL

99530-12016-00

Unavailable

19

BOLT, FLANGE

90105-06102-00

Unavailable

20

HOLDER

17D-15378-00-00

Unavailable

21

COVER, GENERATOR

1SM-15415-00-00

Unavailable

22

GASKET, COVER

1SM-15453-00-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

Unavailable

24

BOLT, FLANGE

95022-06060-00

Unavailable
