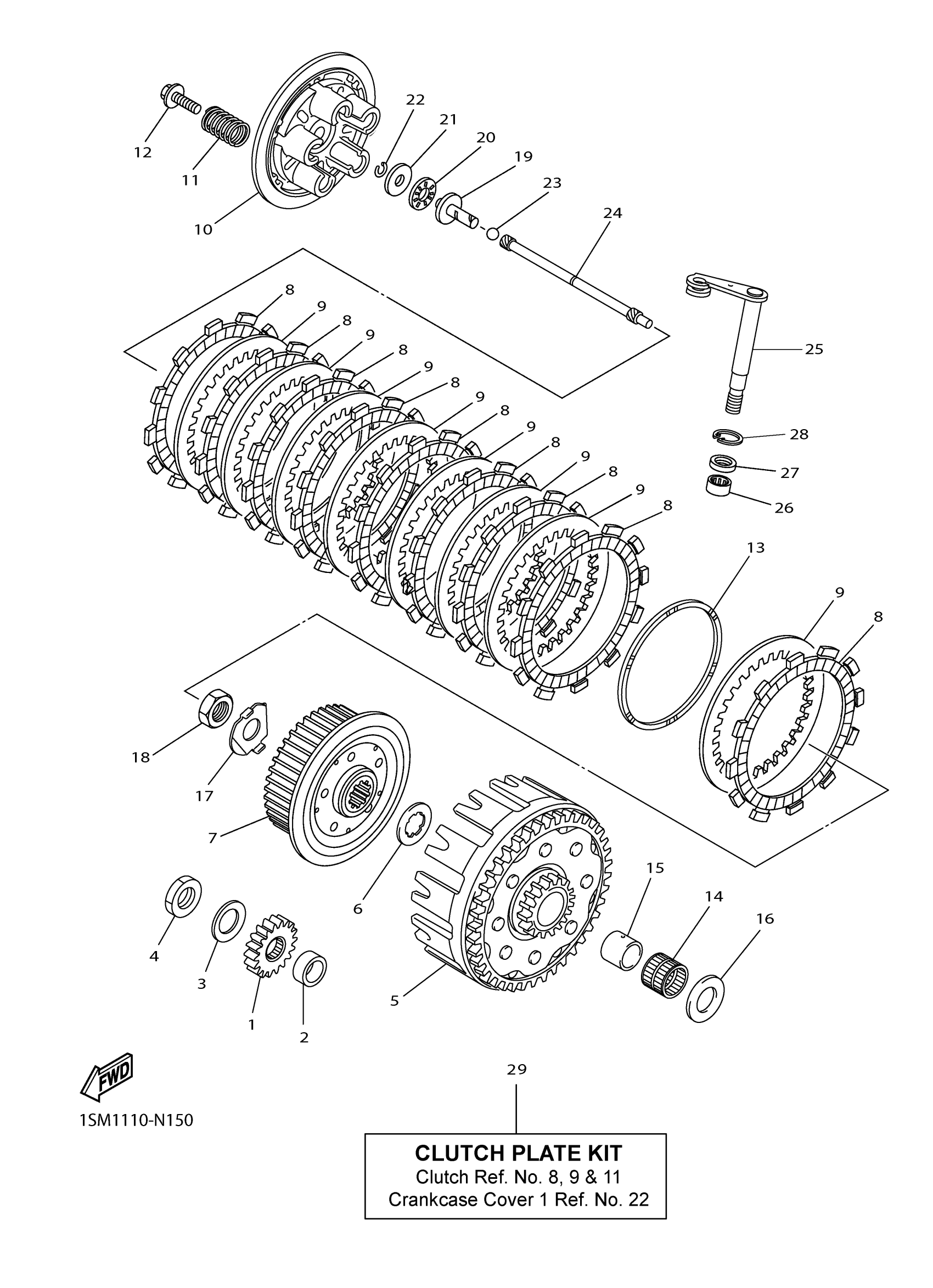

Yamaha YZ250FGY (YZ250F 60TH ANNIVERSARY) 1SMD 2016 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1SM-16111-00-00

Unavailable

2

COLLAR

90387-19008-00

Unavailable

3

WASHER (517 CLUTCH)

90208-16019-00

$8.49

4

NUT

90170-16003-00

$3.55

5

PRIMARY DRIVEN GEAR COMP.

1SM-16150-00-00

$495.99

6

PLATE, THRUST 1

1SM-16154-00-00

$6.99

7

BOSS, CLUTCH

5NL-16371-50-00

$223.99

8

PLATE, FRICTION

5XC-16321-00-00

$29.99

9

PLATE, CLUTCH 2

5NL-16325-20-00

$7.99

10

PLATE, PRESSURE 1

1SM-16351-00-00

$68.99

11

SPRING, COMPRESSION

90501-230A6-00

$4.51

12

SCREW, WITH WASHER

90159-06029-00

$8.49

13

SPRING.,CUSHION

1SM-16383-00-00

$14.49

14

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

$45.99

15

SPACER 1

1SM-16181-00-00

Unavailable

16

WASHER, PLATE(1HX)

90201-204K8-00

Unavailable

17

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

18

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

19

ROD, PUSH 1

1SM-16356-00-00

Unavailable

20

BEARING, THRUST(3AY)

93340-21008-00

Unavailable

21

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

22

CIRCLIP

93440-07182-00

Unavailable

23

BALL (498)

93511-32027-00

Unavailable

24

ROD, PUSH 2

1SM-16357-00-00

Unavailable

25

PUSH LEVER COMP.

1SM-16381-00-00

Unavailable

26

BEARING

93317-11096-00

Unavailable

27

OIL SEAL

93102-10008-00

Unavailable

28

CIRCLIP

99009-18500-00

Unavailable

29

CLUTCH KIT

1SM-W001G-00-00

Unavailable
