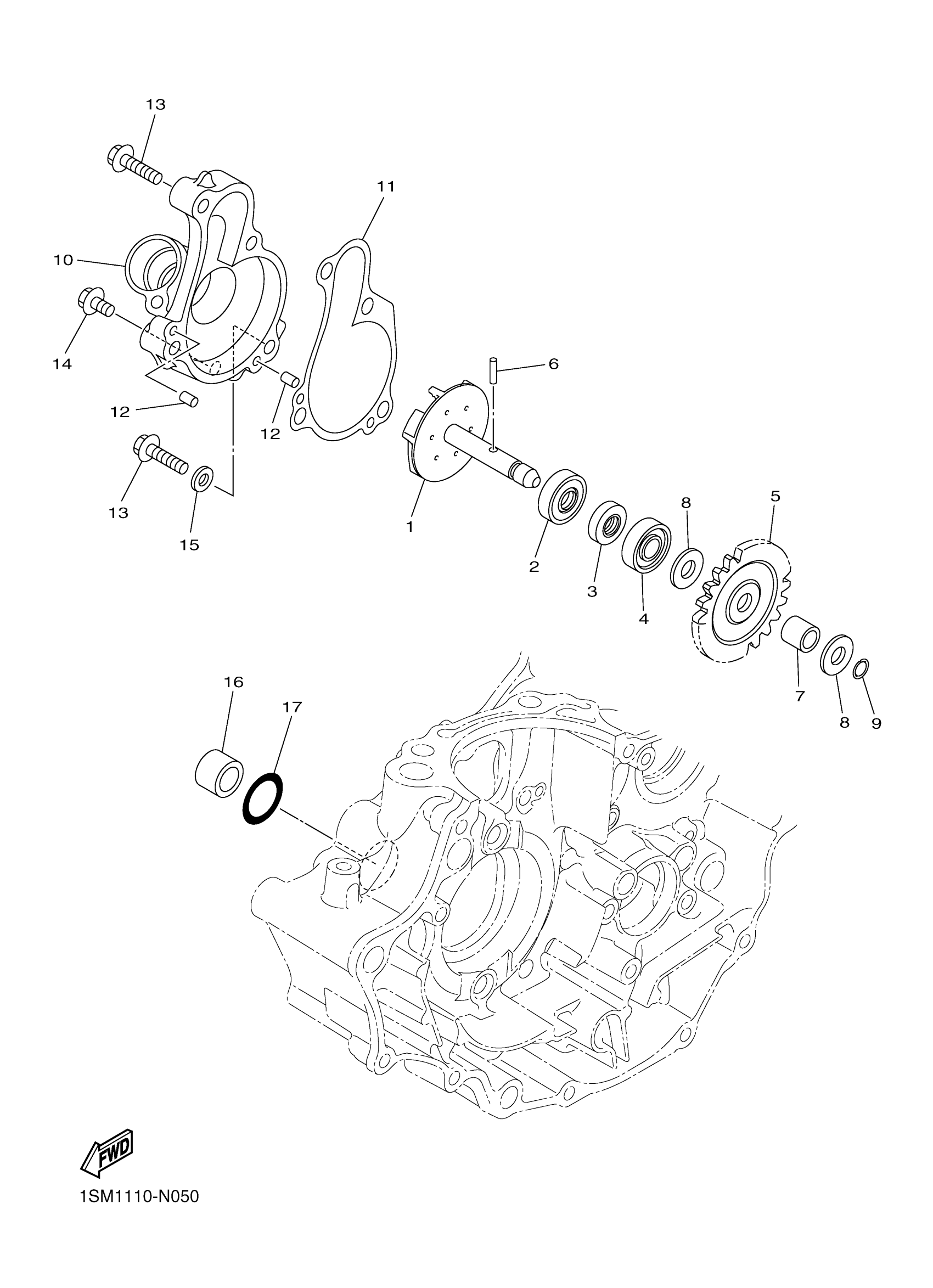

Yamaha YZ250FGL (YZ250F) 1SM9 2016 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

1SM-12450-01-00

Unavailable

2

OIL SEAL

93102-08004-00

$9.49

3

OIL SEAL (30X)

93102-08307-00

$7.49

4

BEARING

93300-60801-00

$21.99

5

GEAR

1SM-12453-10-00

$94.99

6

PIN,DOWEL (603)

93603-12007-00

$2.55

7

COLLAR

90387-08032-00

$8.49

8

WASHER, PLATE (5F7)

90201-08512-00

$8.49

9

CIRCLIP

93440-07182-00

$3.78

10

COVER, HOUSING

33D-12422-00-00

$100.99

11

GASKET, HOUSING COVER 1

33D-12427-00-00

$7.99

12

PIN,DOWEL (603)

93604-10011-00

$8.49

13

BOLT, FLANGE

95022-06025-00

$3.62

14

BOLT, FLANGE

95022-06010-00

$5.60

15

GASKET 256113960000

90430-06014-00

Unavailable

16

PIPE, WATER

5NL-12564-00-00

Unavailable

17

O-RING (M124)

93210-16772-00

Unavailable

17

O-RING (M124)

93210-16772-00

Unavailable
