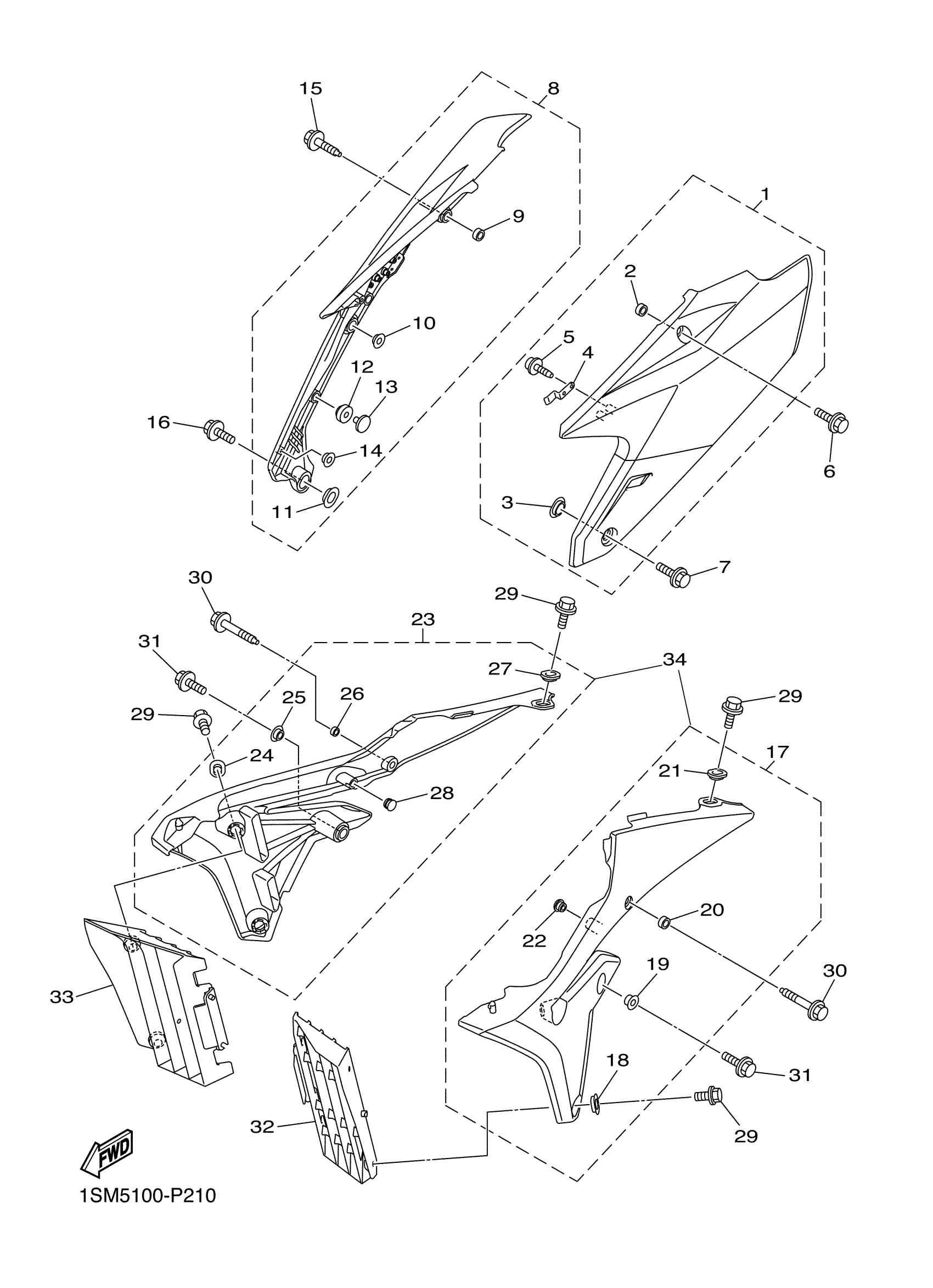

Yamaha YZ250FFW (YZ250F) 1SM50 2015 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

1SL-21710-00-00

$25.93

2

COLLAR (5V7)

90387-08057-00

$6.56

3

COLLAR

5TA-21749-00-00

$9.00

4

HOOK

1SL-2176M-00-00

Unavailable

5

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

6

BOLT, FLANGE

90105-08230-00

$3.32

7

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

8

SIDE COVER ASSY 2

1SL-21720-10-00

$84.52

9

COLLAR (5V7)

90387-08057-00

$6.56

10

COLLAR

5BE-21749-00-00

$4.48

11

COLLAR

5TA-21749-00-00

$9.00

12

GROMMET

1SL-21719-00-00

$12.37

13

DAMPER

1DX-21746-01-00

$18.97

14

. COLLAR

90387-06M31-00

$5.00

15

BOLT, FLANGE

90105-08230-00

$3.32

16

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

17

SIDE COVER INSERT

1SM-217R0-20-00

Unavailable

18

COLLAR

17D-21749-00-00

Unavailable

19

COLLAR

90387-11009-00

Unavailable

20

COLLAR

90387-06106-00

Unavailable

21

COLLAR

1SL-21748-00-00

Unavailable

22

GROMMET (397)

90480-10068-00

Unavailable

23

SIDE COVER INSERT

1SM-217S0-20-00

Unavailable

24

COLLAR

17D-21749-00-00

Unavailable

25

COLLAR

90387-11009-00

Unavailable

26

COLLAR

90387-06106-00

Unavailable

27

COLLAR

1SL-21748-00-00

Unavailable

28

GROMMET (397)

90480-10068-00

Unavailable

29

BOLT, FLANGE

90105-06064-00

Unavailable

30

BOLT, FLANGE

90105-06179-00

Unavailable

31

BOLT, FLANGE

90105-06203-00

Unavailable

32

PANEL 1

1SL-2172A-00-00

Unavailable

33

PANEL 2

1SL-2172F-00-00

Unavailable

34

SIDE COVER

1SL-W003D-00-00

Unavailable
