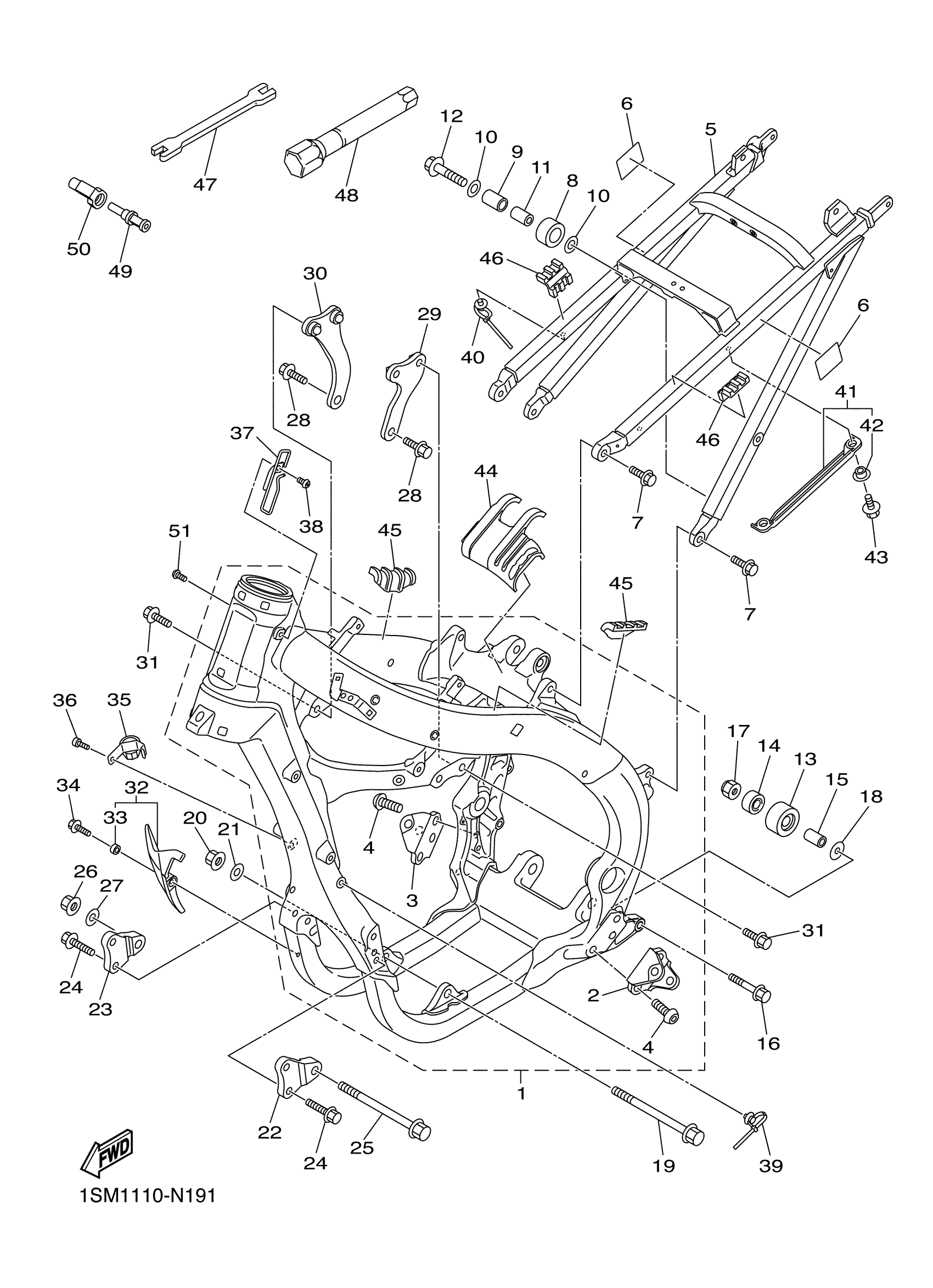

Yamaha YZ250FFW (YZ250F) 1SM50 2015 FRAME Diagram
#
1
FRONT FRAME SET
99999-04265-00
Unavailable
1
FRONT FRAME COMP.
1SL-21101-02-00
Unavailable
15
COLLAR(1NL)
90387-086N4-00
Unavailable
16
BOLT, FLANGE
90105-08232-00
Unavailable
17
NUT, U
95617-08100-00
Unavailable
18
WASHER, PLATE
90201-08043-00
Unavailable
19
BOLT, FLANGE
90105-10176-00
Unavailable
20
NUT(4KG)
90179-10658-00
Unavailable
21
WASHER, PLATE
90201-10045-00
Unavailable
22
BRACKET, FRONT LOWER 1
1SM-21417-00-00
Unavailable
23
BRACKET, FRONT LOWER 2
1SM-21418-00-00
Unavailable
24
BOLT, FLANGE
90105-08143-00
Unavailable
25
BOLT, FLANGE
90105-10443-00
Unavailable
26
NUT(4KG)
90179-10658-00
Unavailable
27
WASHER, PLATE
90201-10025-00
Unavailable
28
BOLT, FLANGE
90105-10189-00
Unavailable
29
BRACKET, REAR UPPER 1
1SM-21425-00-00
Unavailable
30
BRACKET, REAR UPPER 2
1SM-21426-00-00
Unavailable
31
BOLT, FLANGE
90105-08143-00
Unavailable
32
PROTECTOR, ENGINE
1SM-21471-01-00
Unavailable
33
COLLAR
90387-06106-00
Unavailable
34
BOLT, FLANGE
90105-06203-00
Unavailable
35
CLAMP, WIRE HARNES
1SM-21335-01-00
Unavailable
36
BOLT
91312-05008-00
Unavailable
37
HOLDER, CLUTCH CAB
1SL-21163-01-00
Unavailable
38
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
39
CLAMP
90464-31002-00
Unavailable
40
CLAMP
90464-31002-00
Unavailable
41
COVER, SIDE 5
1SL-2171E-00-00
Unavailable
42
COLLAR
90387-065T2-00
Unavailable
43
BOLT, FLANGE
95022-06016-00
Unavailable
44
DAMPER, LOCATING 1
1SL-24181-00-00
Unavailable
45
DAMPER, LOCATING 2
33D-24182-00-00
Unavailable
46
DAMPER, LOCATING 3
33D-24183-00-00
Unavailable
47
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
48
BOX, SPARK PLUG
17D-2814F-00-00
Unavailable
49
CAP
18P-2467E-00-00
Unavailable
50
CASE, CAP
18P-2464V-01-00
Unavailable
51
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
