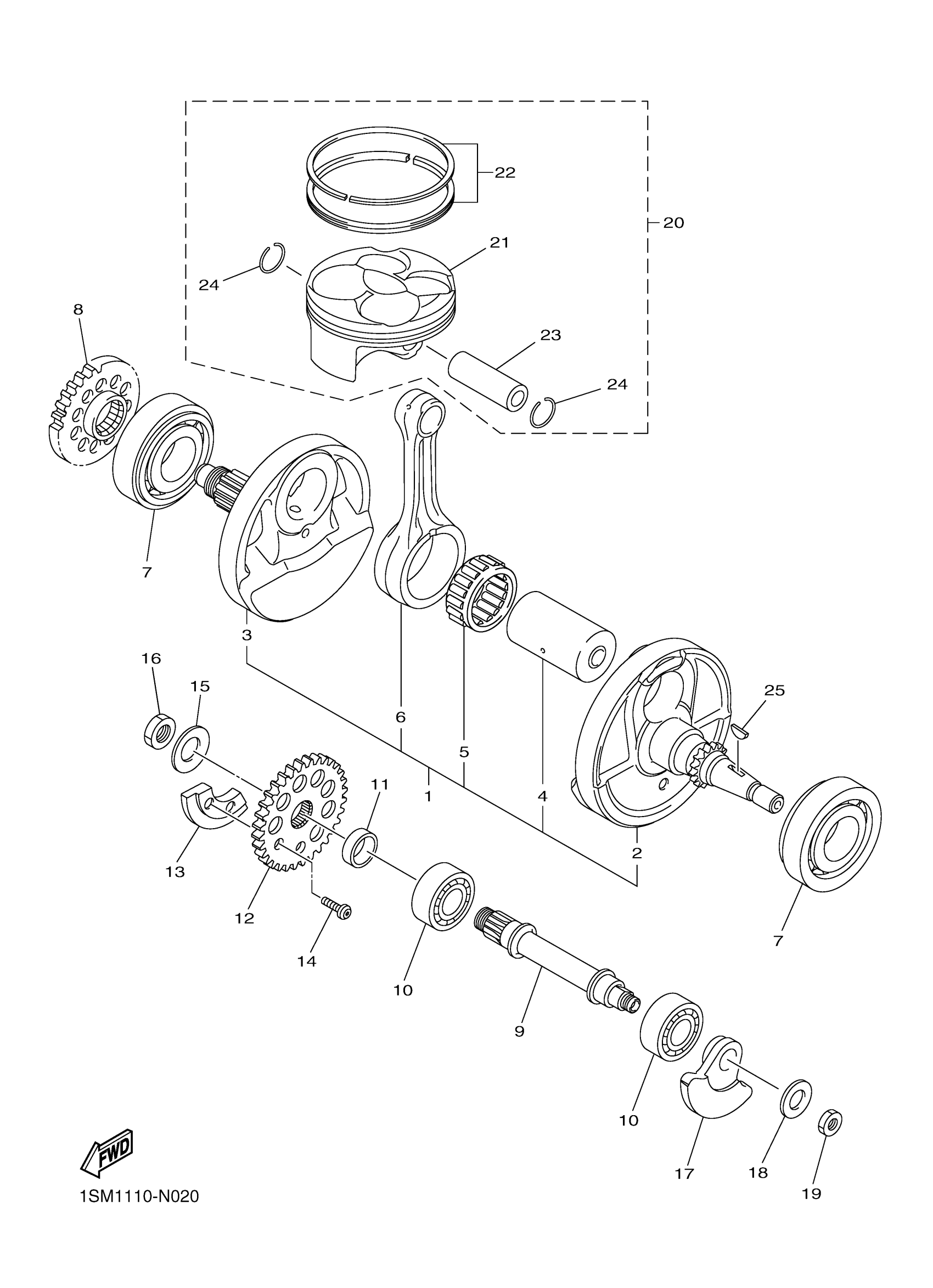

Yamaha YZ250FFW (YZ250F) 1SM50 2015 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1SM-11400-01-00

$549.00

2

CRANK 1

1SM-11412-00-00

Unavailable

3

CRANK 2

1SM-11422-00-00

$206.69

4

PIN, CRANK 1

1SM-11681-00-00

$55.47

5

BEARING

93310-63097-00

$86.94

6

ROD, CONNECTING

2GB-11651-01-00

$118.36

7

BEARING

93306-20648-00

$75.99

8

GEAR, DRIVE

1SM-11536-00-00

$100.27

9

SHAFT 1

1SM-11455-00-00

$148.93

10

BEARING

93306-20351-00

$32.67

11

COLLAR

90387-175R2-00

$9.72

12

GEAR, BALANCE WEIGHT

1SM-11531-00-00

$104.51

13

WEIGHT 1

1SM-11454-00-00

$42.34

14

SCREW

90149-06084-00

$6.03

15

WASHER, CONICAL SPRING

90208-14033-00

$2.85

16

NUT, HEXAGON

90170-14171-00

Unavailable

17

WEIGHT 2

1SM-11464-00-00

Unavailable

18

WASHER, CONICAL SPRING

90208-10001-00

Unavailable

19

NUT(4BA)

90170-10405-00

Unavailable

20

PISTON ASSY

1SM-116A0-01-00

Unavailable

21

PISTON (STD)

1SM-11631-01-00

Unavailable

22

PISTON RING SET (STD)

1SM-11603-01-00

Unavailable

23

PIN, PISTON

1SM-11633-00-00

Unavailable

24

CIRCLIP(1AR)

93450-17129-00

Unavailable

25

KEY, WOODRUFF

90280-03006-00

Unavailable
