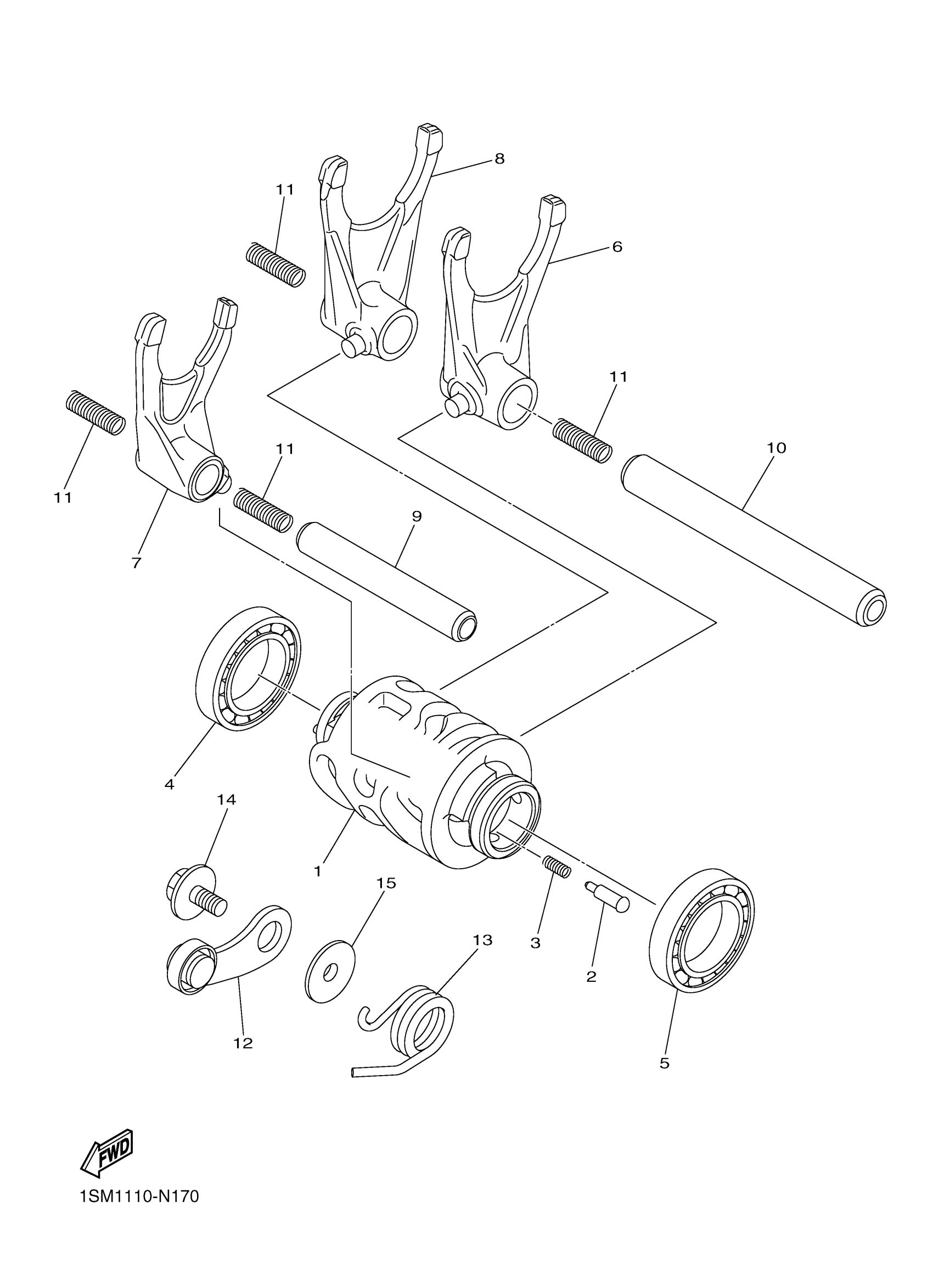

Yamaha YZ250FEW (YZ250FE) 1SM10 2014 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

1SM-18541-00-00

$185.98

2

POINT, NEUTRAL

3D7-18542-00-00

$5.92

3

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

4

BEARING

93306-90409-00

$29.63

5

BEARING

93306-80502-00

$31.03

6

FORK, SHIFT 1

1SM-18511-00-00

$61.59

7

FORK, SHIFT 2

1SM-18512-10-00

$51.08

8

FORK, SHIFT 3

1SM-18513-00-00

$59.95

9

BAR, SHIFT FORK GUIDE 1

1SL-18531-00-00

$21.27

10

BAR, SHIFT FORK GUIDE 2

1SL-18535-00-00

$30.35

11

SPRING, COMPRESSION

90501-064L1-00

$1.15

12

STOPPER LEVER ASSY

99999-04230-00

Unavailable

13

SPRING, TORSION

90508-26080-00

Unavailable

14

SCREW, WITH WASHER

90159-06028-00

$6.17

15

SPACER

33D-18175-00-00

Unavailable
