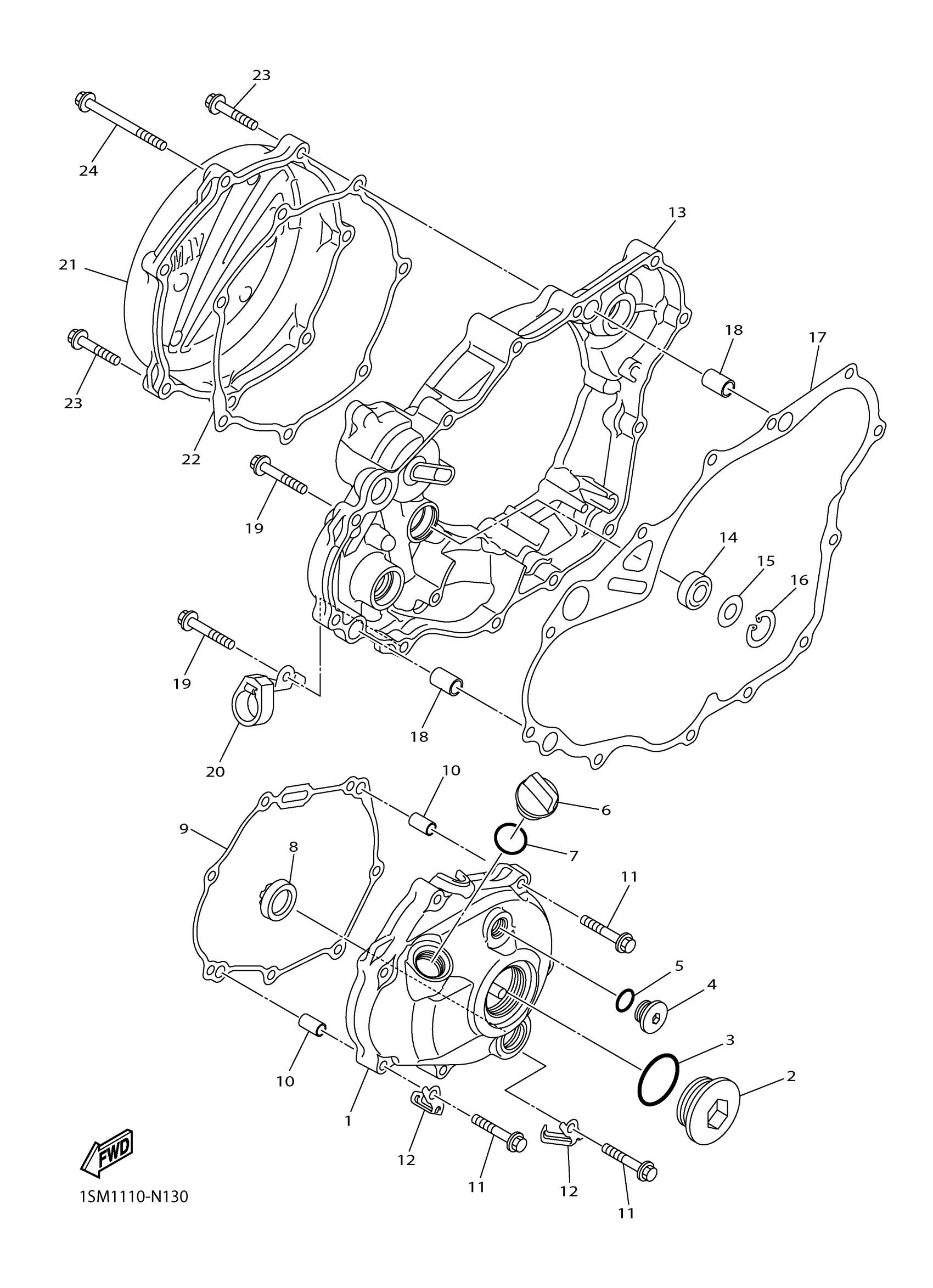

Yamaha YZ250FEW (YZ250FE) 1SM10 2014 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1SM-15411-00-00

$111.88

2

PLUG, STRAIGHT SCREW

90340-36002-00

$12.48

3

O-RING

93210-35804-00

$0.46

4

PLUG, STRAIGHT SCREW

90340-14011-00

$18.40

5

O-RING (2H9)

93210-14369-00

$5.42

6

PLUG, OIL

3Y1-15363-10-00

$15.94

7

O-RING (646)

93210-19123-00

Unavailable

8

GAUGE, LEVEL

3Y1-15361-00-00

$23.80

9

GASKET,CRCS COVER

1SM-15451-00-00

$18.88

10

PIN, DOWEL(3XW)

91808-16023-00

$5.26

11

BOLT, FLANGE

95022-06030-00

$1.31

12

CLAMP

90465-08062-00

$3.45

13

COVER, CRANKCASE 3

1SM-15431-00-00

Unavailable

14

OIL SEAL(4GY)

93101-14164-00

$9.05

15

WASHER (566)

90201-15701-00

$5.75

16

CIRCLIP

99009-22500-00

Unavailable

17

GASKET, CRANKCASE COVER 3

1SM-15462-00-00

Unavailable

18

PIN, DOWEL

99530-12016-00

Unavailable

19

BOLT, FLANGE

90105-06102-00

Unavailable

20

HOLDER

17D-15378-00-00

Unavailable

21

COVER, GENERATOR

1SM-15415-00-00

Unavailable

22

GASKET, COVER

1SM-15453-00-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

Unavailable

24

BOLT, FLANGE

95022-06060-00

Unavailable
