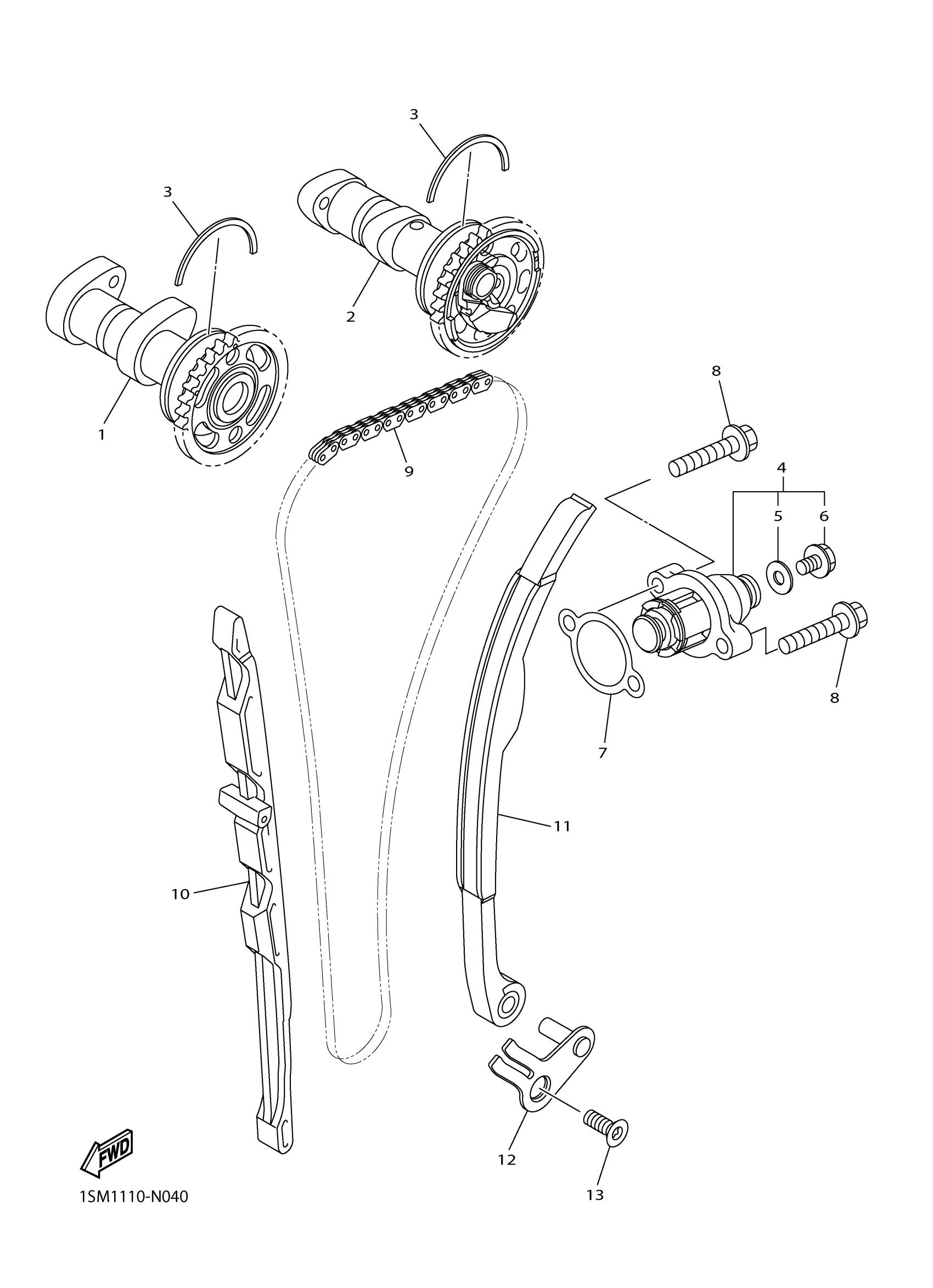

Yamaha YZ250FEW (YZ250FE) 1SM10 2014 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1SM-12170-00-YX

Unavailable

2

CAMSHAFT ASSY 2

1SM-12180-10-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$135.99

5

GASKET

5EL-12214-00-00

$7.99

6

BOLT

5EL-12228-00-00

$5.49

7

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

8

BOLT, FLANGE

90105-06148-00

$8.49

9

CHAIN

94591-77114-00

$31.99

10

DAMPER, CHAIN 1

1SM-12251-00-00

$28.99

11

DAMPER, CHAIN 2

1SM-12252-11-00

$113.99

12

PLATE, GUIDE STOPPER 1

1SL-12233-00-00

$32.99

13

SCREW, COUNTERSUNK

90151-06023-00

$8.49
