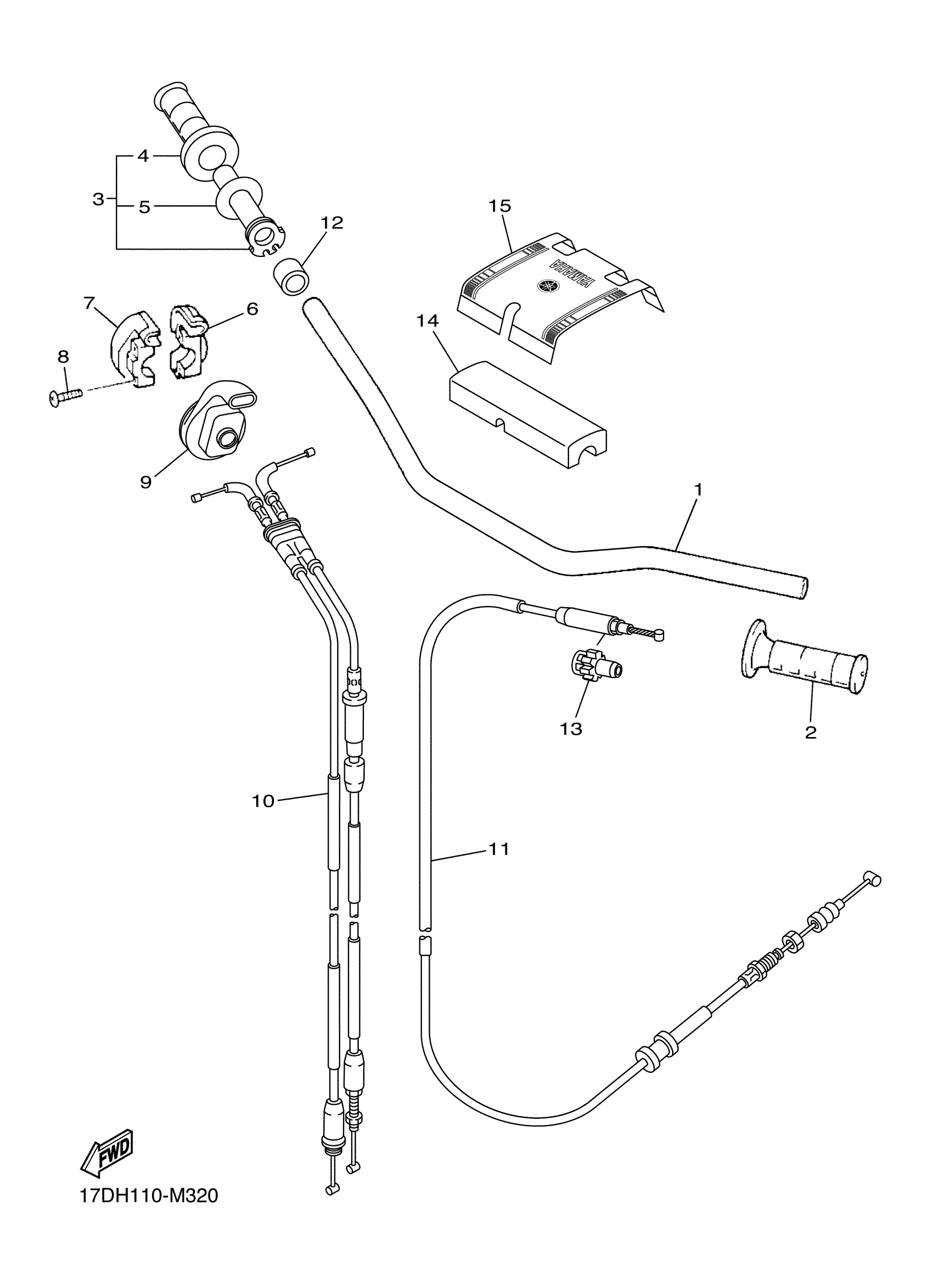

Yamaha YZ250FDW (YZ250F) 17DH0 2013 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

17D-26111-H0-00

$228.99

2

GRIP (LEFT)

4GY-26241-00-00

$29.99

3

GRIP ASSY

17D-26240-90-00

Unavailable

4

GRIP (RIGHT)

4GY-26242-00-00

$29.99

5

RING, LEAF

3Y1-26249-00-00

$9.99

6

CAP, GRIP UPPER

5BE-26281-01-00

$59.99

7

CAP, GRIP LOWER

5BE-26282-00-00

$40.99

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

COVER, CAP GRIP

5SF-26287-11-00

$16.49

10

THROTTLE CABLE ASSY

17D-26302-90-00

Unavailable

11

CABLE, CLUTCH

17D-26335-50-00

$49.99

12

COLLAR(1TG)

90387-225N2-00

$21.99

13

BOOT, CABLE

34P-26342-00-00

$11.99

14

PROTECTOR, HANDLEBAR

17D-26124-00-00

$44.99

15

COVER, HAND UPPER 1

17D-26143-H0-00

$68.99
