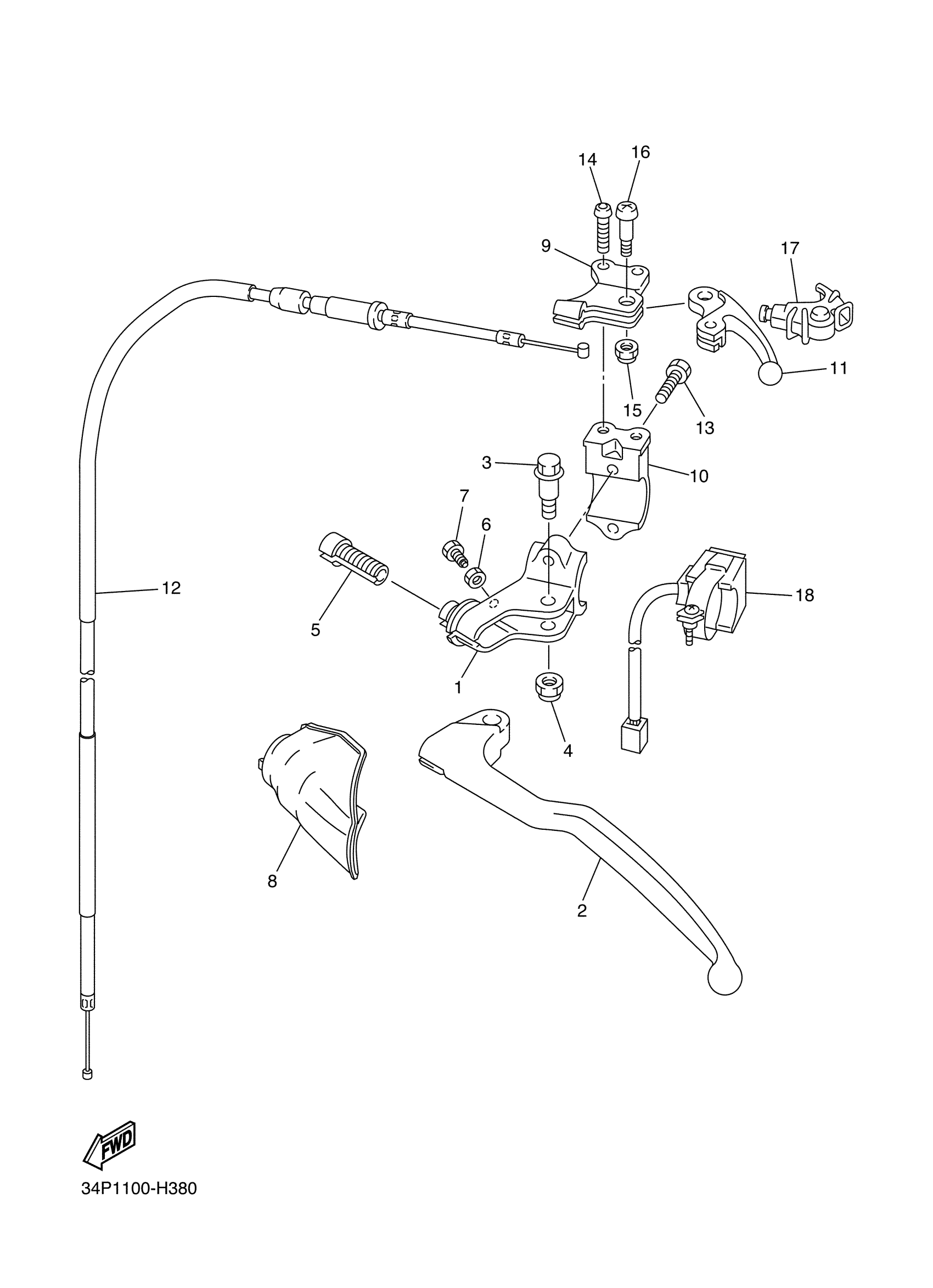

Yamaha YZ250FDW (YZ250F) 17DH0 2013 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

17D-82911-00-00

$37.99

2

LEVER 1

17D-83912-01-00

$42.99

3

BOLT

90109-06034-00

$7.49

4

NUT, LENS FITTING

5LP-84126-10-00

$6.99

5

BOLT, ADJUSTING

17D-26337-00-00

$45.99

6

NUT, HEXAGON (663)

95380-05600-00

$8.49

7

BOLT

90101-05005-00

$3.08

8

COVER, HANDLE LEVER 1

34P-26372-00-00

$14.49

9

HOLDER, STARTER LEVER

5XD-82946-01-00

$31.99

10

HOLDER, LEVER LOWER 1

17D-82913-01-00

$17.49

11

LEVER, STARTER

5TA-83941-00-00

Unavailable

12

CABLE, STARTER 2

17D-26334-50-00

$37.99

13

BOLT, FLANGE

95022-06020-00

$3.62

14

BOLT, BUTTON HEAD

92012-05012-00

$4.41

15

NUT, U

95617-05100-00

$9.49

16

SCREW (4X4)

90149-05162-00

Unavailable

17

BOOT

5TA-26339-00-00

Unavailable

18

SWITCH, HANDLE 1

17D-83976-10-00

Unavailable
