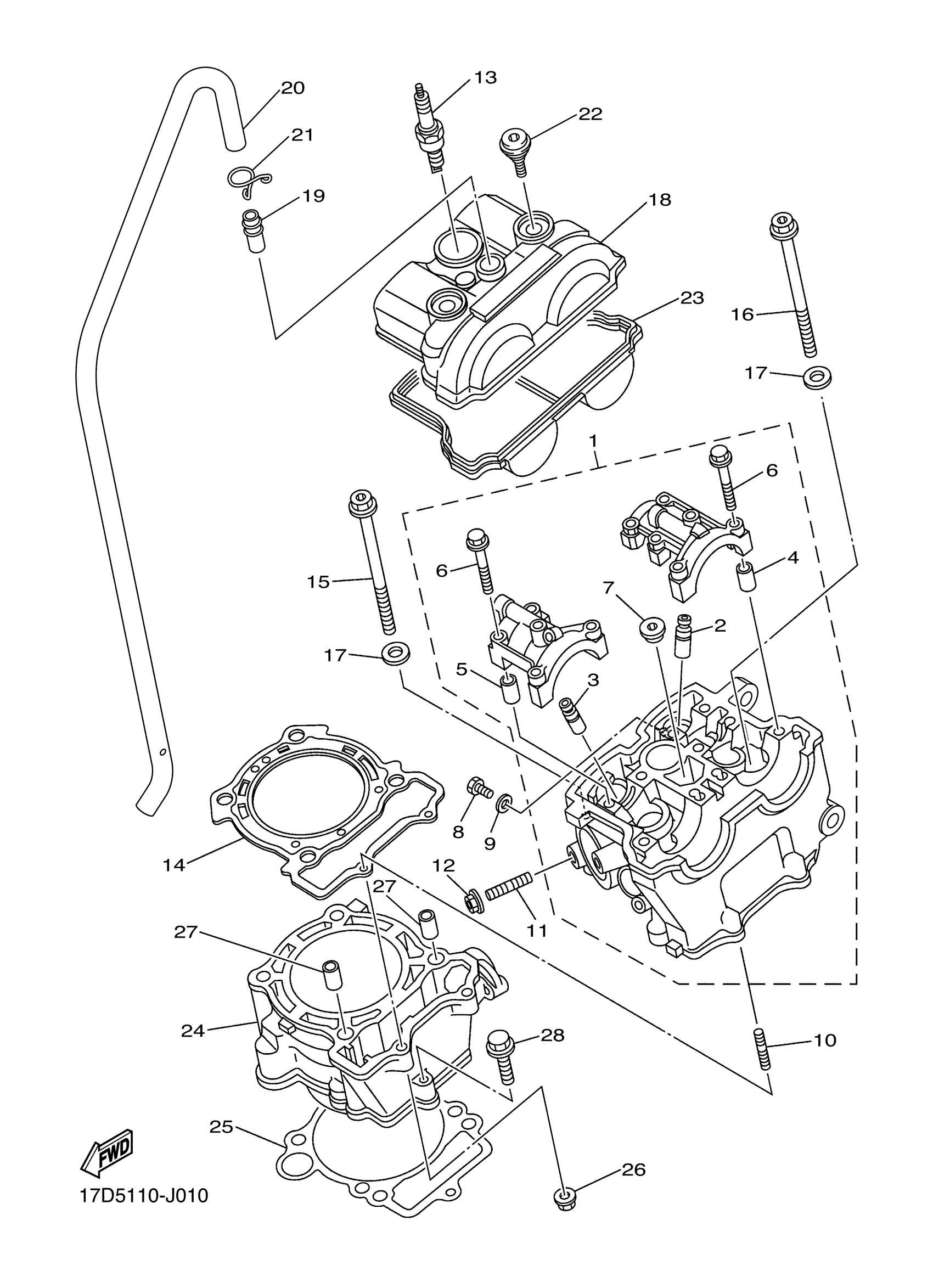

Yamaha YZ250FDW (YZ250F) 17DH0 2013 CYLINDER Diagram

CYLINDER HEAD ASSY

17D-11102-11-00

$1,059.99

GUIDE, INTAKE VALVE

5NL-11133-10-00

$44.99

GUIDE, EXHAUST VALVE

5NL-11134-10-00

$44.99

PIN, DOWEL(3XW)

91808-16023-00

$8.49

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, WASHER BASED

90105-06027-00

$7.49

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

BOLT, FLANGE

95022-06010-00

$5.60

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, STUD

90116-06038-00

$3.35

BOLT, STUD

95612-08620-00

$7.49

NUT,FLANGE(J10)

95702-08500-00

$1.43

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5NL-11181-00-00

$50.99

BOLT, FLANGE

90105-09004-00

Unavailable

BOLT, WASHER BASED

90105-09002-00

Unavailable

WASHER, PLATE(1AA)

90201-096J9-00

Unavailable

COVER, CYLINDER HEAD 1

5NL-11191-50-00

Unavailable

PIPE, BREATHER 2

371-11167-01-00

Unavailable

PIPE, BREATHER 1

5XC-11166-00-00

Unavailable

CLIP

90467-140A4-00

Unavailable

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

GASKET, HEAD COVER 1

5NL-11193-00-00

Unavailable

CYLINDER 1

5XC-11311-20-00

Unavailable

GASKET, CYLINDER

5NL-11351-00-00

Unavailable

NUT, FLANGE

95702-06500-00

Unavailable

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

BOLT, FLANGE

95022-06035-00

Unavailable
