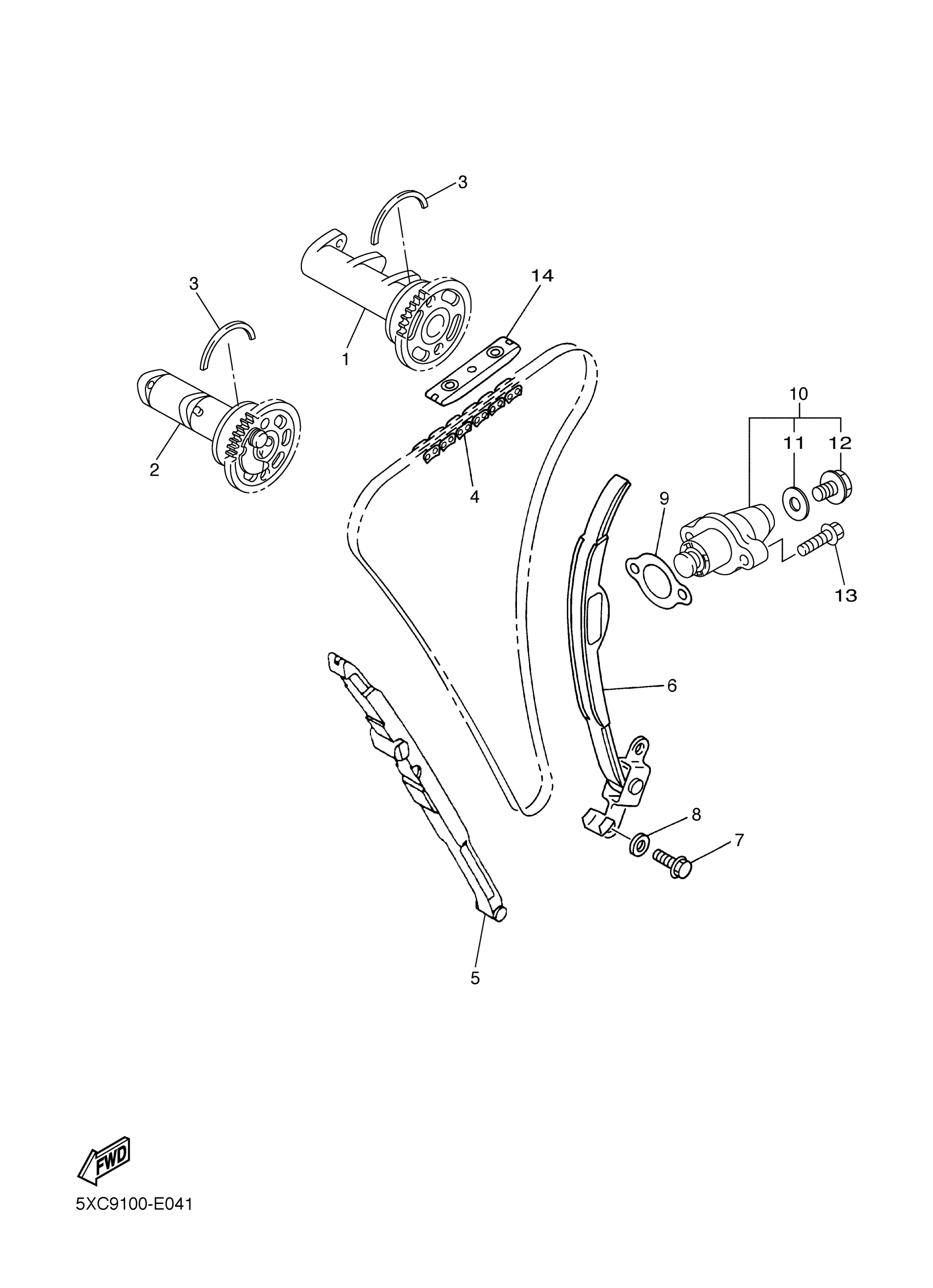

Yamaha YZ250FDW (YZ250F) 17DH0 2013 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

17D-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

17D-12180-10-00

$245.92

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-53114-00

$26.67

5

DAMPER, CHAIN 1

5NL-12251-31-00

Unavailable

6

DAMPER, CHAIN 2

5NL-12252-01-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

10

TENSIONER ASSY CAM CHAIN

5TA-12210-21-00

Unavailable

11

GASKET

5EL-12214-00-00

$5.99

12

BOLT

5EL-12228-00-00

$2.52

13

BOLT, FLANGE

95022-06025-00

$1.37

14

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85
