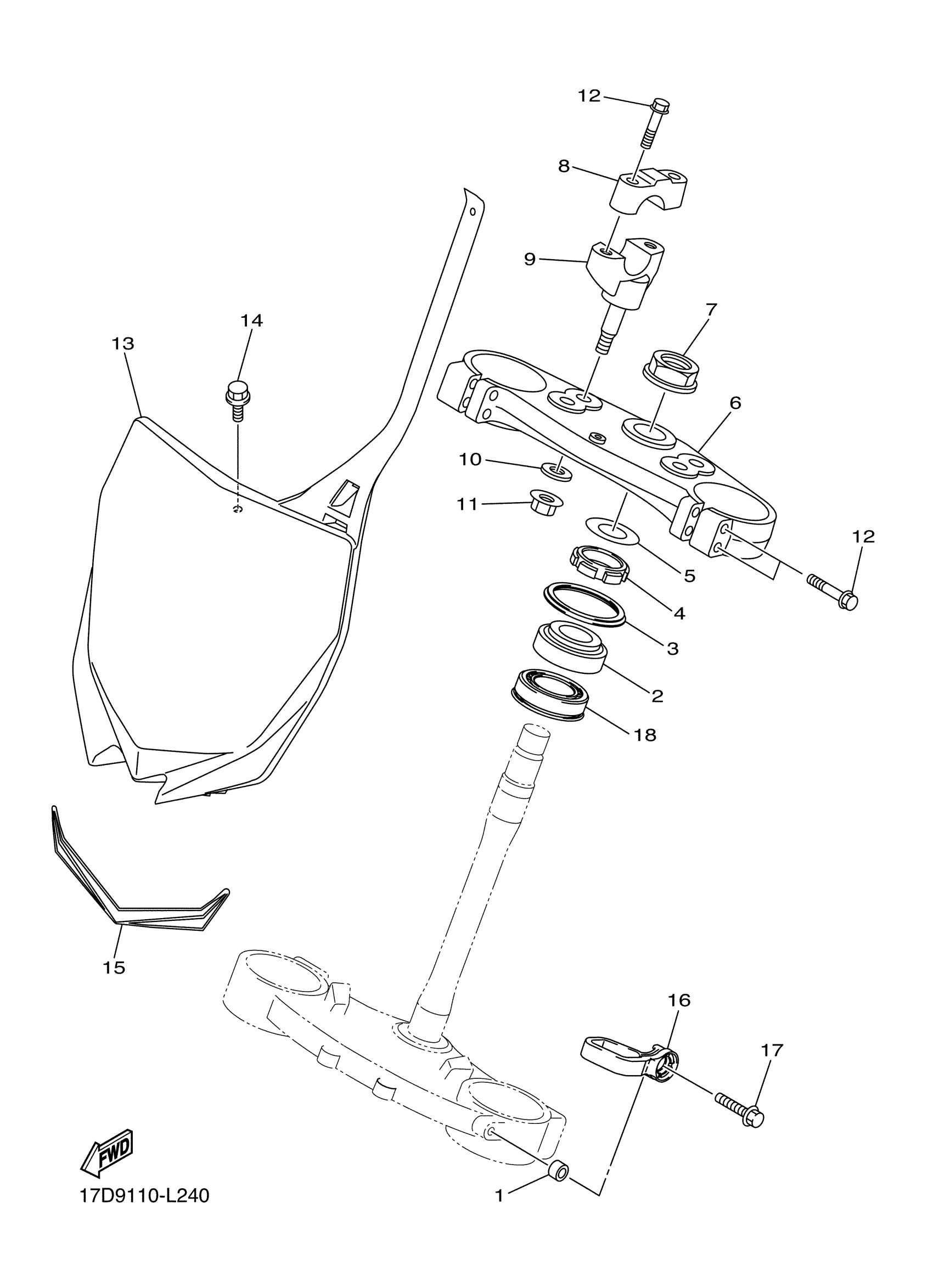

Yamaha YZ250FBW (YZ250FB) 17D90 2012 STEERING Diagram

#

Description
Price

1

COLLAR

90387-06105-00

$7.49

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

17D-23416-50-00

$33.99

4

NUT

90179-28016-00

Unavailable

5

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

6

CROWN, HANDLE

33D-23435-00-00

Unavailable

7

NUT

90179-24004-00

$26.99

8

HOLDER, HANDLE UPPER

18P-23441-00-00

$30.99

9

HOLDER, HANDLE LOWER

17D-23442-10-00

$173.99

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

BOLT, FLANGE

90105-08154-00

$7.49

13

PLATE, NUMBER

17D-23485-50-00

$27.99

14

BOLT, FLANGE

90105-06064-00

$3.81

16

GUIDE, CABLE

17D-23389-50-00

$14.49

17

BOLT, FLANGE

90105-06170-00

Unavailable

18

BEARING(4SR)

93332-00081-00

Unavailable
