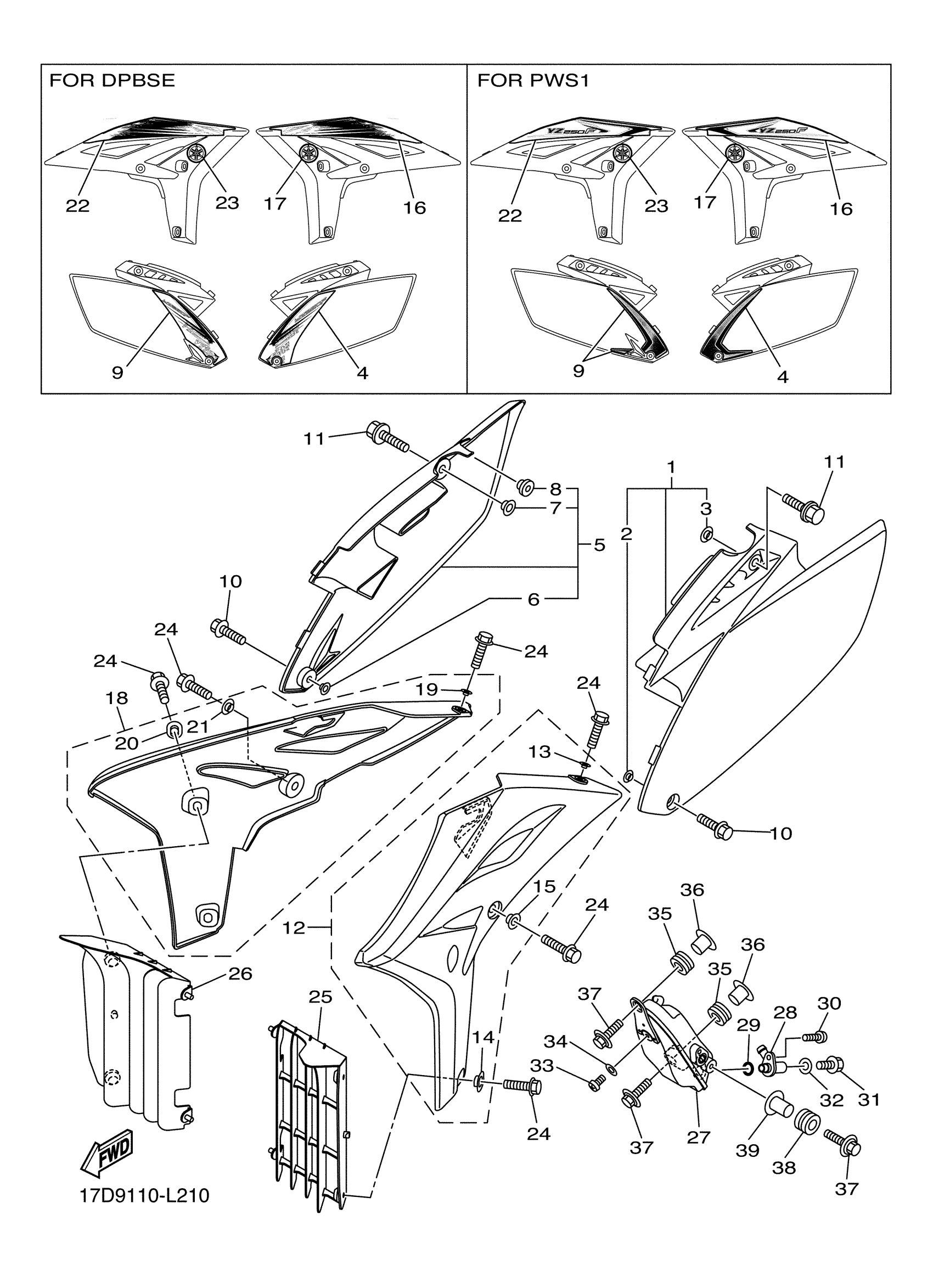

Yamaha YZ250FBW (YZ250FB) 17D90 2012 SIDE COVER OIL TANK Diagram

#

Description
Price

1

SIDE COVER ASSY 1

17D-21710-00-00

Unavailable

2

COLLAR

90387-08086-00

$7.49

3

COLLAR

5BE-21749-00-00

$6.99

4

GRAPHIC, 1 (DEEP PURPLISH BLUE SOLID E)

17D-2173E-20-00

Unavailable

5

SIDE COVER ASSY 2

17D-21720-00-00

Unavailable

6

COLLAR

90387-08086-00

$7.49

7

COLLAR

5BE-21749-00-00

$6.99

8

GROMMET

5XC-21719-90-00

$9.99

9

GRAPHIC, 2

17D-2173F-20-00

Unavailable

10

BOLT, FLANGE

90105-06103-00

$4.88

11

BOLT, WITH WASHER

90119-08095-00

$8.49

12

SIDE COVER ASSY 3

17D-21730-D0-00

Unavailable

13

COLLAR

90387-06009-00

$10.49

14

COLLAR

17D-21749-00-00

$16.49

15

COLLAR

5BE-21749-00-00

$6.99

16

GRAPHIC, 3

17D-2174G-30-00

Unavailable

17

TUNING FORK MARK

5FK-2175C-01-00

Unavailable

18

SIDE COVER ASSY 4

17D-21740-D0-00

Unavailable

19

COLLAR

90387-06009-00

$10.49

20

COLLAR

17D-21749-00-00

$16.49

21

COLLAR

5BE-21749-00-00

$6.99

22

GRAPHIC, 4

17D-2174H-30-00

Unavailable

23

TUNING FORK MARK

5FK-2175C-01-00

Unavailable

24

BOLT, FLANGE

90105-06064-00

Unavailable

25

PANEL 1

17D-2172A-00-00

Unavailable

26

PANEL 1

17D-2172A-10-00

Unavailable

27

TANK, OIL

17D-21751-00-00

Unavailable

28

PIPE, OIL 1

17D-13416-00-00

Unavailable

29

O-RING (2H9)

93210-14369-00

Unavailable

30

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

31

BOLT, FLANGE

90105-08151-00

Unavailable

32

WASHER, PLATE (4L0)

90201-082A6-00

Unavailable

33

SCREW, BIND(J45)

98980-06012-00

Unavailable

34

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

35

GROMMET (4N0)

90480-10289-00

Unavailable

36

COLLAR

90387-06150-00

Unavailable

37

BOLT, WITH WASHER

90119-06255-00

Unavailable

38

GROMMET(1JK)

90480-14433-00

Unavailable

39

COLLAR

90387-06161-00

Unavailable
