Description

Price

1

FENDER, FRONT

17D-21511-50-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06108-00

$4.61

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

REAR FENDER COMP. (INDIGO) (INDIGO) (DEEP PURPLISH BLUE SOLID E)

17D-21610-00-00

Unavailable

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

COLLAR(3XJ)

90387-064X4-00

$7.49

9

BOLT, FLANGE

90105-06100-00

$7.49

10

WASHER, PLATE

90201-06104-00

$5.60

11

BOLT, FLANGE

90105-06106-00

$3.76

12

WASHER, PLATE

90201-06085-00

$3.02

13

GUARD, FLAP

17D-21642-00-00

$24.99

14

SCREW, TAPPING

97702-60016-00

$2.19

15

EMBLEM

3C5-2411B-20-00

$10.99

16

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

17

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

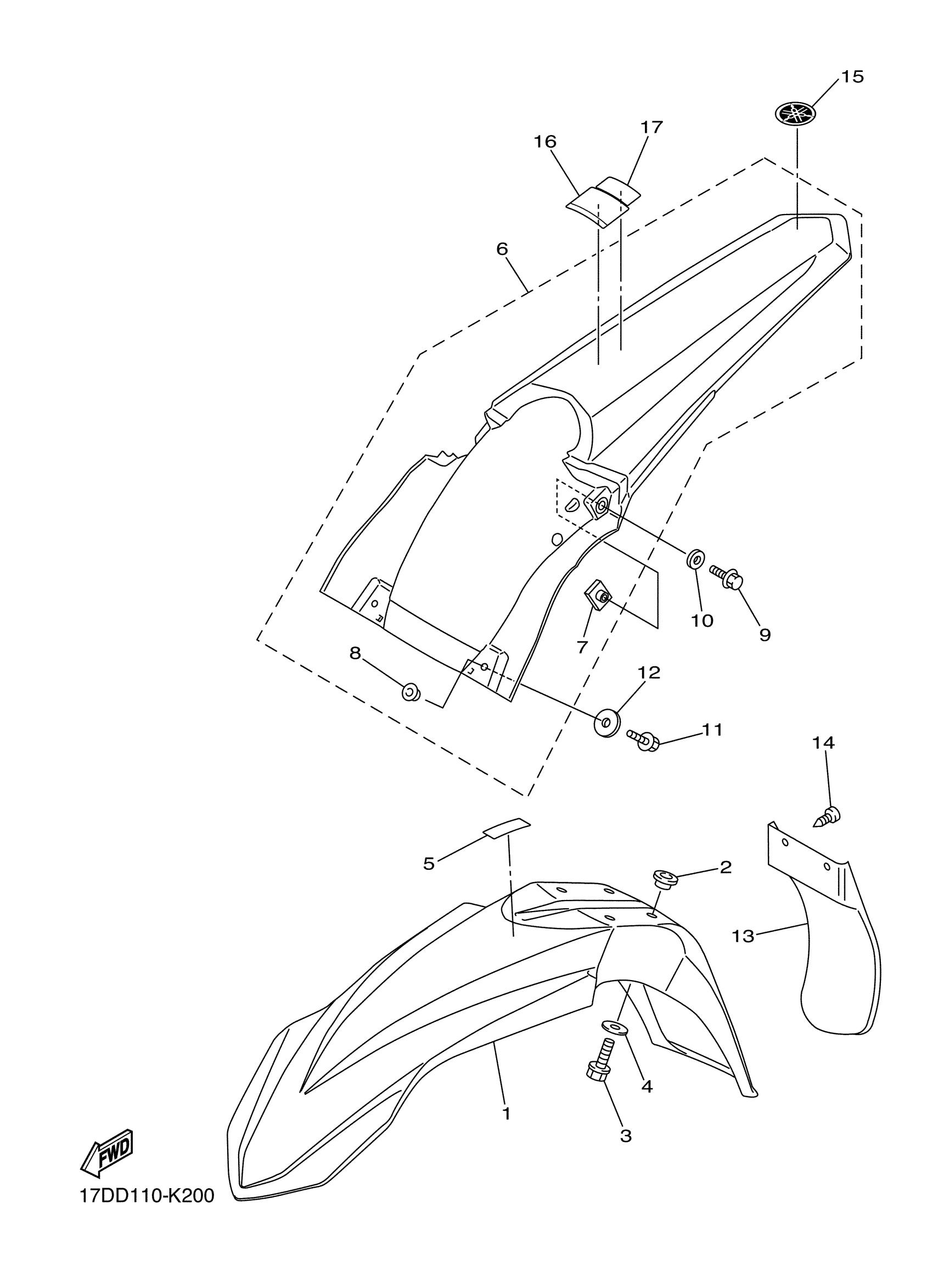

Yamaha YZ250FBW (YZ250FB) 17D90 2012 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, FLANGE

WASHER, PLATE

LABEL, CAUTION

REAR FENDER COMP. (INDIGO) (INDIGO) (DEEP PURPLISH BLUE SOLID E)

NUT, REAR FENDER

COLLAR(3XJ)

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE

WASHER, PLATE

GUARD, FLAP

SCREW, TAPPING

EMBLEM

LABEL, CAUTION

PLATE, COMPETITION USA
